Circulation components
Transport Solutions for Precast Pallet Systems
Construx-Weckenmann provides high-performance circulation components for longitudinal and transversal pallet transport systems used in automated precast concrete production lines. Designed for durability, smooth handling, and precise synchronization, these components are integral to ensuring efficient pallet flow throughout the circulation plant.

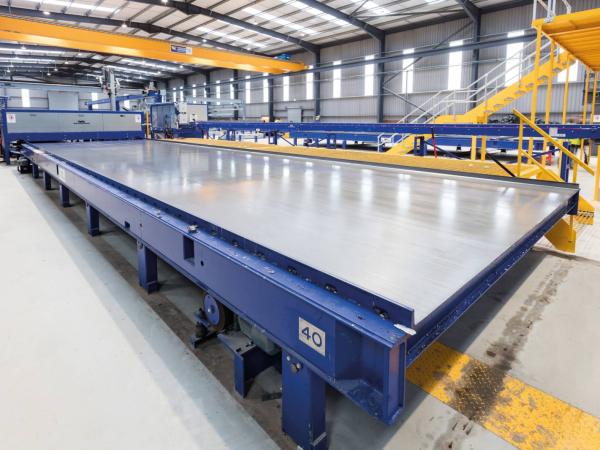

Core Components of the Pallet Transport System
The circulation line is composed of three main components that work in harmony to move pallets accurately and reliably:
Roller Blocks
- Heavy-duty frame with a flanged roller
- Mounted with a high-load, maintenance-free bearing
- Provide stable and low-friction guidance for pallets along the production line
- Engineered for long-term durability and low maintenance
Friction Drive Wheels
- Mounted on a robust swing arm
- Arm is spring-loaded to ensure consistent pressure against the pallet rail
- Enables smooth, controlled propulsion of pallets along longitudinal paths
- Adjustable spring tension allows tuning for various pallet sizes and weights

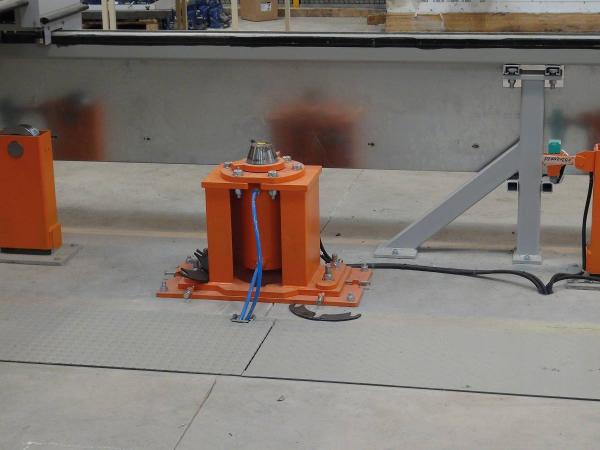

Cross-Lifting Trucks (Transversal Transport)
- Operate in synchronized pairs to lift and move pallets laterally (transversally)
- Precisely raise the pallet off rollers or resting blocks
- Accurately transfer the pallet to the next station and lower it gently
- Ideal for integration in multi-station production loops with complex routing
Key Benefits
- Seamless integration with Construx-Weckenmann circulation and automation lines
- Robust design ensures stability under continuous operation
- Low-maintenance components minimize downtime
- High precision in pallet lifting, guiding, and placement
- Customizable for different plant layouts and pallet specifications
