Application of Magnets and Side-Forms
- Box Magnet
- With 2 threaded holes M16
- Cathodic dip painted black RAL 9005
CW Multi Box Magnets 2000kg and accessories
CW Multi Box Magnets 2000kg and accessories
MagCW-2000-Multi
| Product code | Pull-off force | Dimensions |
|---|---|---|
| CWS-M-B2 | 2000kg | 320mm x 120mm x 60mm |
Multi Adapter R
- Adapter
- To be bolted on MagCW-2000-Multi
- To be used as MagCW-2000-Rod
- For fixing brackets CWS-A-B2
- Cathodic dip painted black RAL 9005
- Product code: CWS-A-B2R
Multi Adapter E
- Pair of adapters
- To be bolted on MagCW-2000-Multi
- For fixing shuttering profiles type E
- Cathodic dip painted black RAL 9005
- Product code: CWS-A-B2E

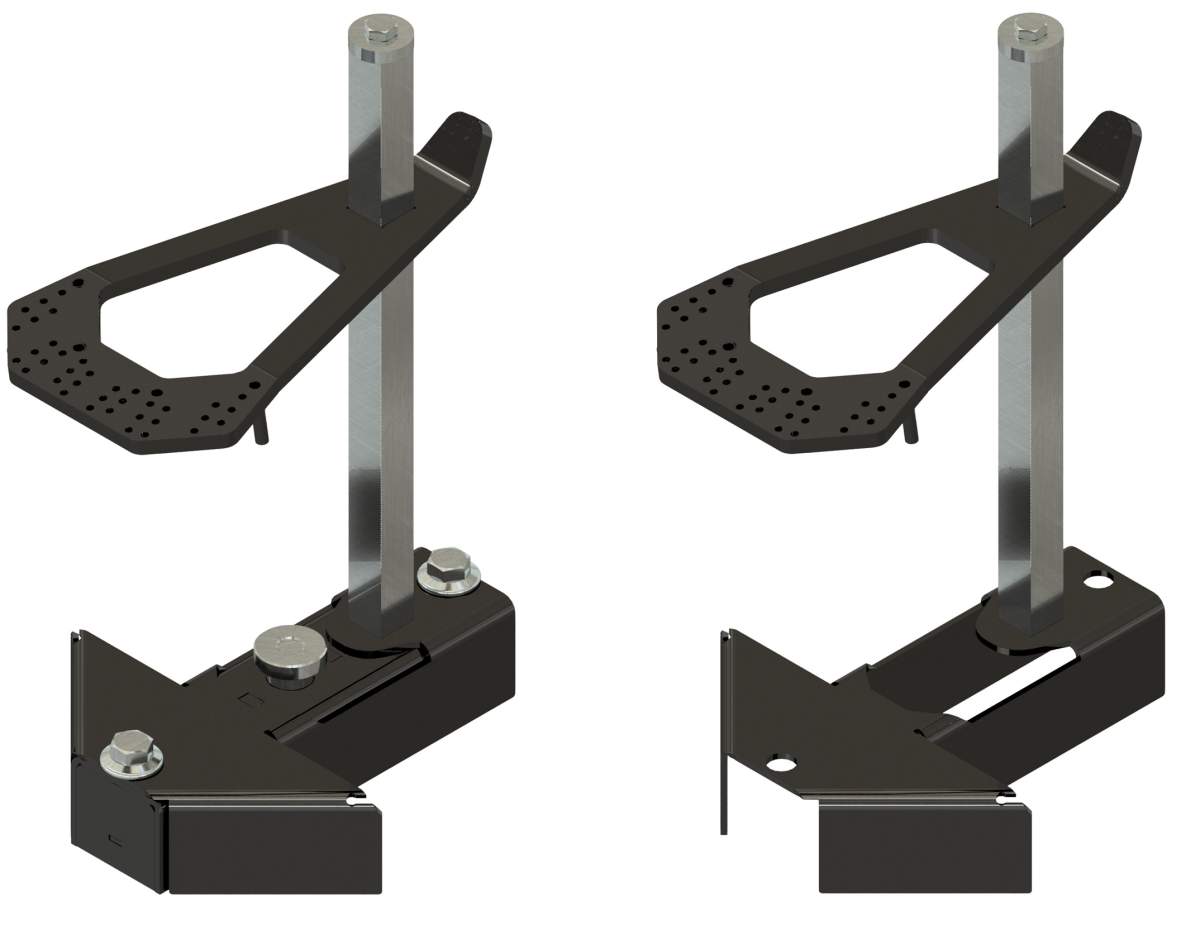

Multi Holder
- Universal hold-down system forside-forms
- With extension arm
- With different grips
- Magnet excluded
- Cathodic dip painted black RAL 9005
- Product code: CWS-A-B2HD
Multi Corner
- Hold down system
- To fix plywood side-form corners
- Magnet excluded
- Cathodic dip painted black RAL 9005
- Product code: CWS-A-B2MC
