Bibat with box-outs
Hydraulically movable bi-pocket battery mould for precast colums with multiple corbels.

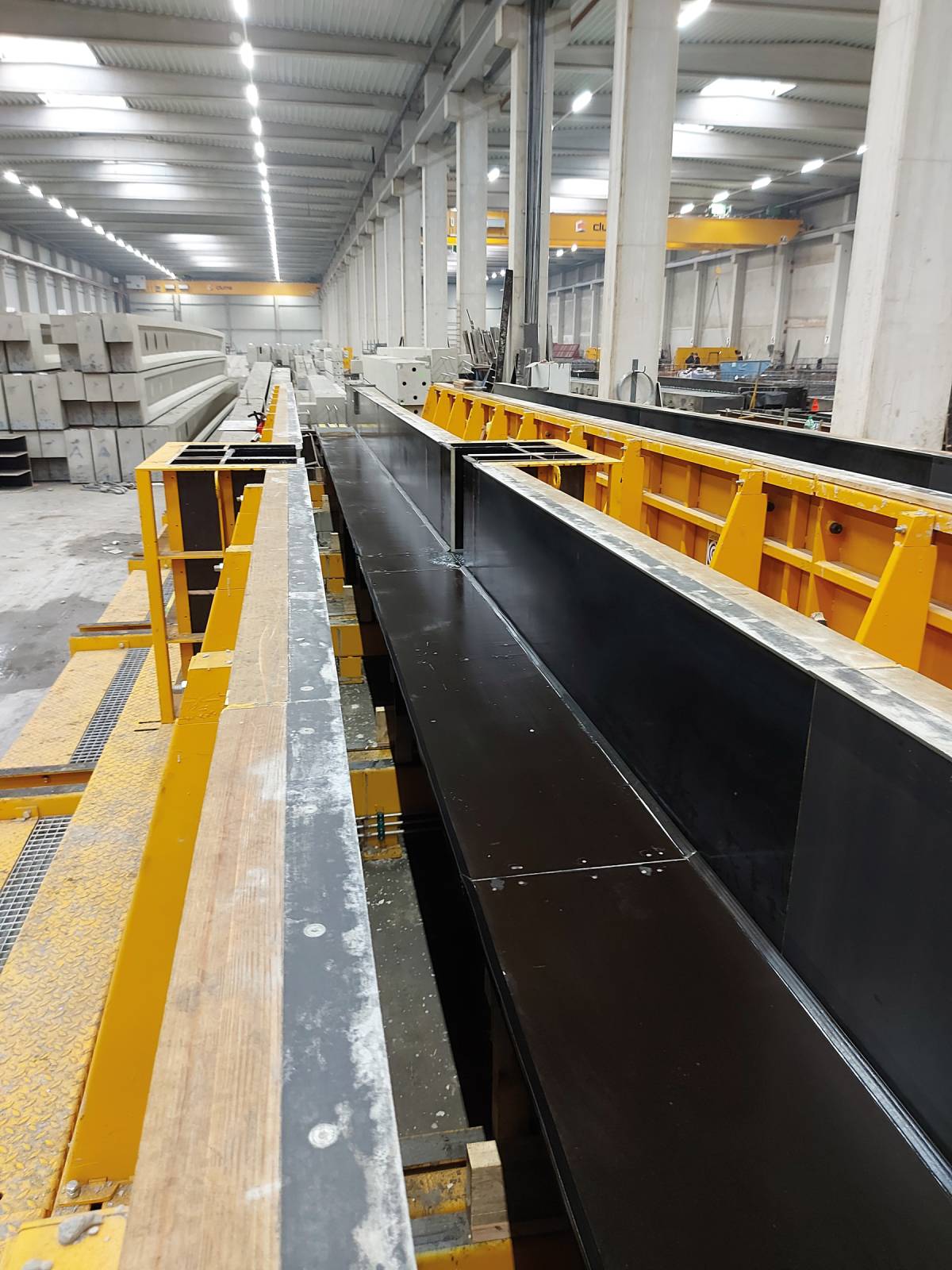

The Bibat bi-pocket mould from Construx-Weckenmann is a hydraulically operated battery mould system specifically designed for the production of precast concrete columns with multiple corbels.

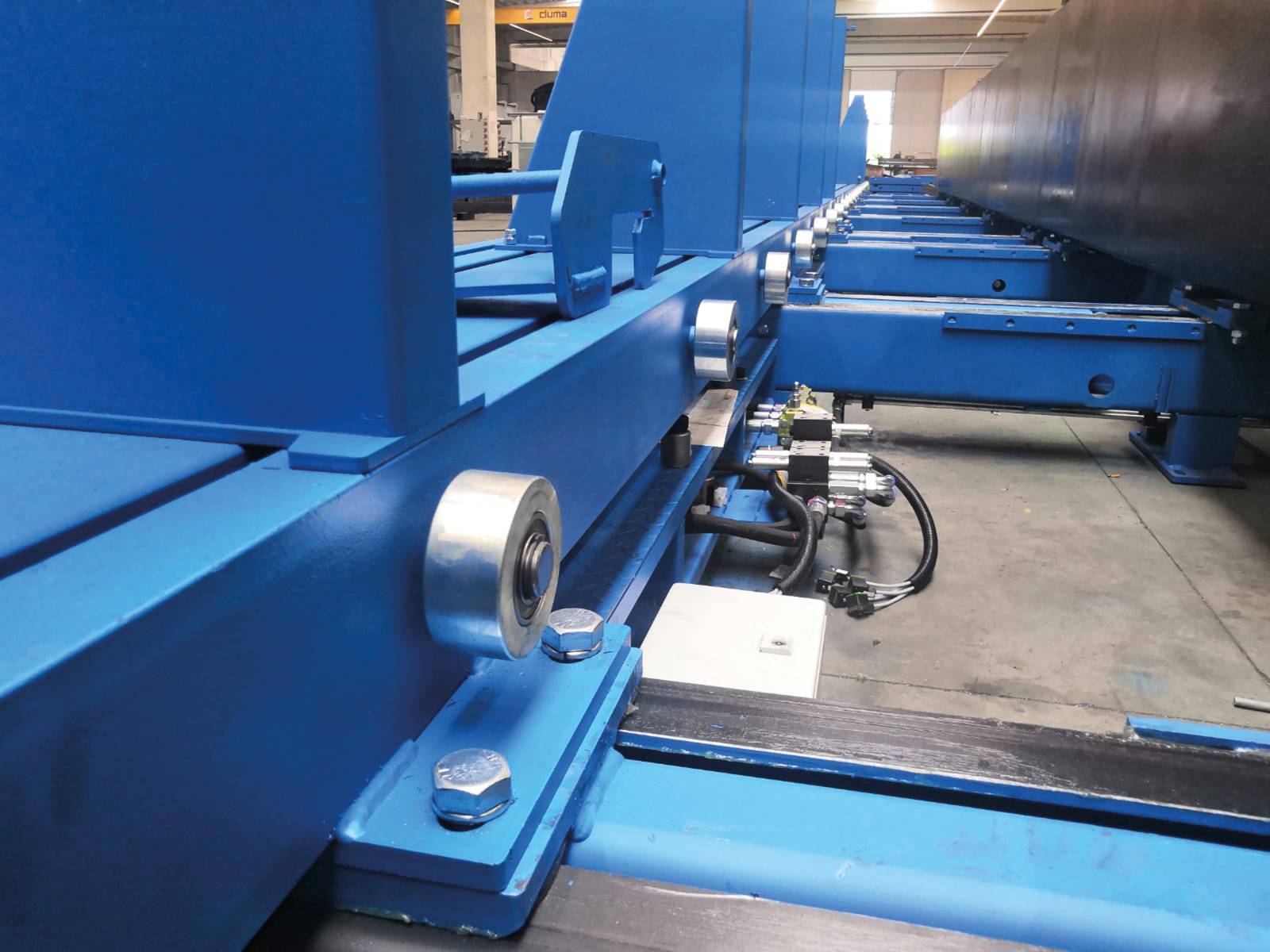

To meet the demands of more complex column geometries, the standard Bibat mould has been upgraded with modular full-steel side panels. These side panels are divided into separate segments and mounted on rollers, allowing them to move sideways with precision.
This configuration enables the flexible integration of corbel box-outs at virtually any height or position along the column. The corbels are formed by inserting custom-cut plywood into the rectangular frames of the side-mounted pocket modules. These box-outs are made to measure and must be prepared by the customer according to the required specifications.
Key Features
- Bi-pocket hydraulic battery mould for precast columns with multiple corbels
- Segmented, movable steel side panels for adaptable pocket positioning
- Roller-mounted movement ensures easy panel alignment
- Box-outs formed using customer-provided plywood inserts
- Enables efficient production of complex structural columns
