Bibat
Hydraulically movable battery mould for precast reinforced concrete beams and columns.
The Bibat battery mould is a high-performance, hydraulically operated formwork system designed for the production of reinforced precast concrete beams, columns, and similar structural elements. It offers precision, flexibility, and automated handling, making it ideal for modern precast factories aiming to optimize throughput and reduce manual labor.
Standard Configuration with Hydraulic Control
A typical Bibat setup includes:

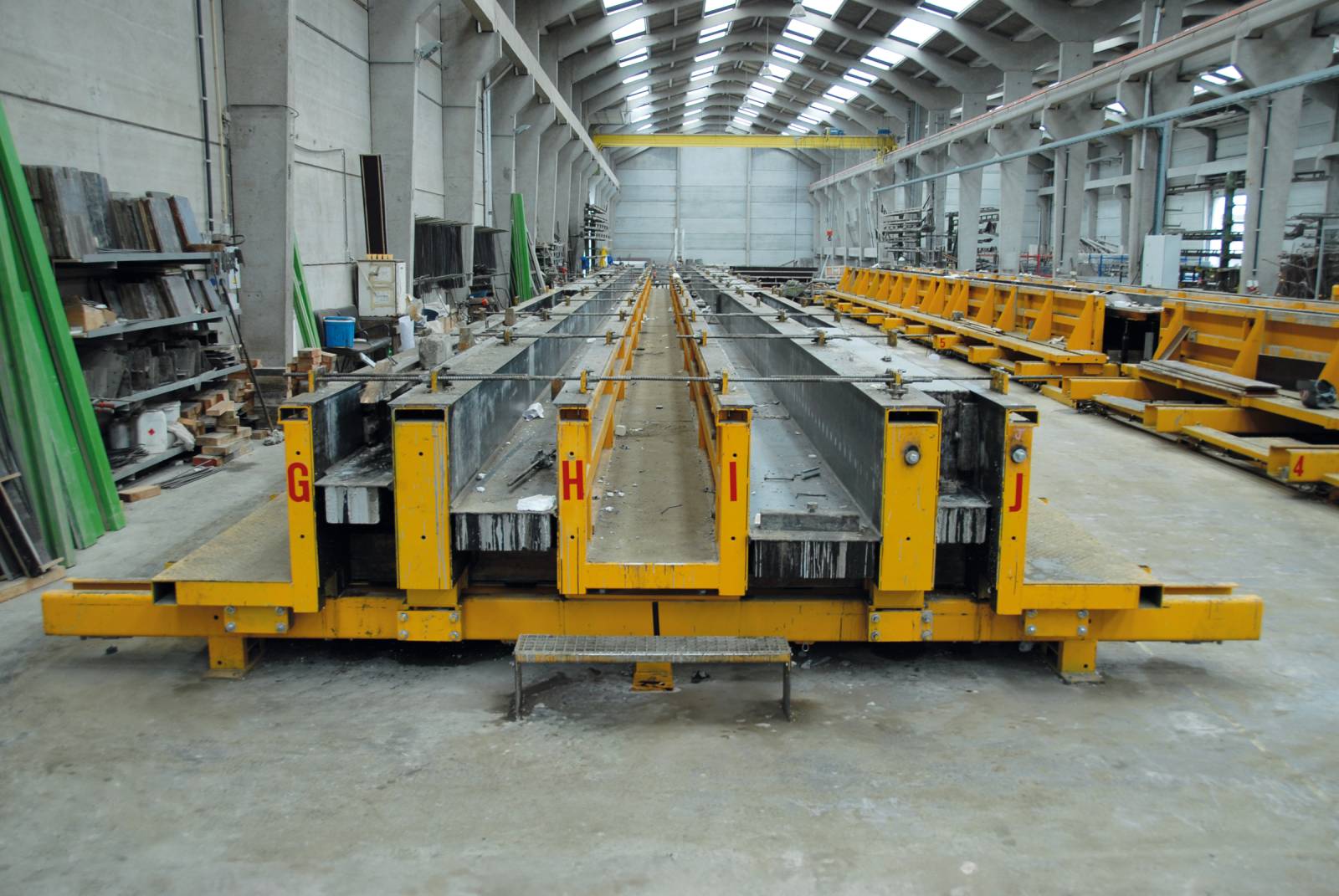

- 1 fixed centre panel
- 2 hydraulically movable side panels
Depending on the production requirements, the steel sheeting used on the panels is either 6 mm or 8 mm thick, ensuring strength, durability, and clean surface finishes.

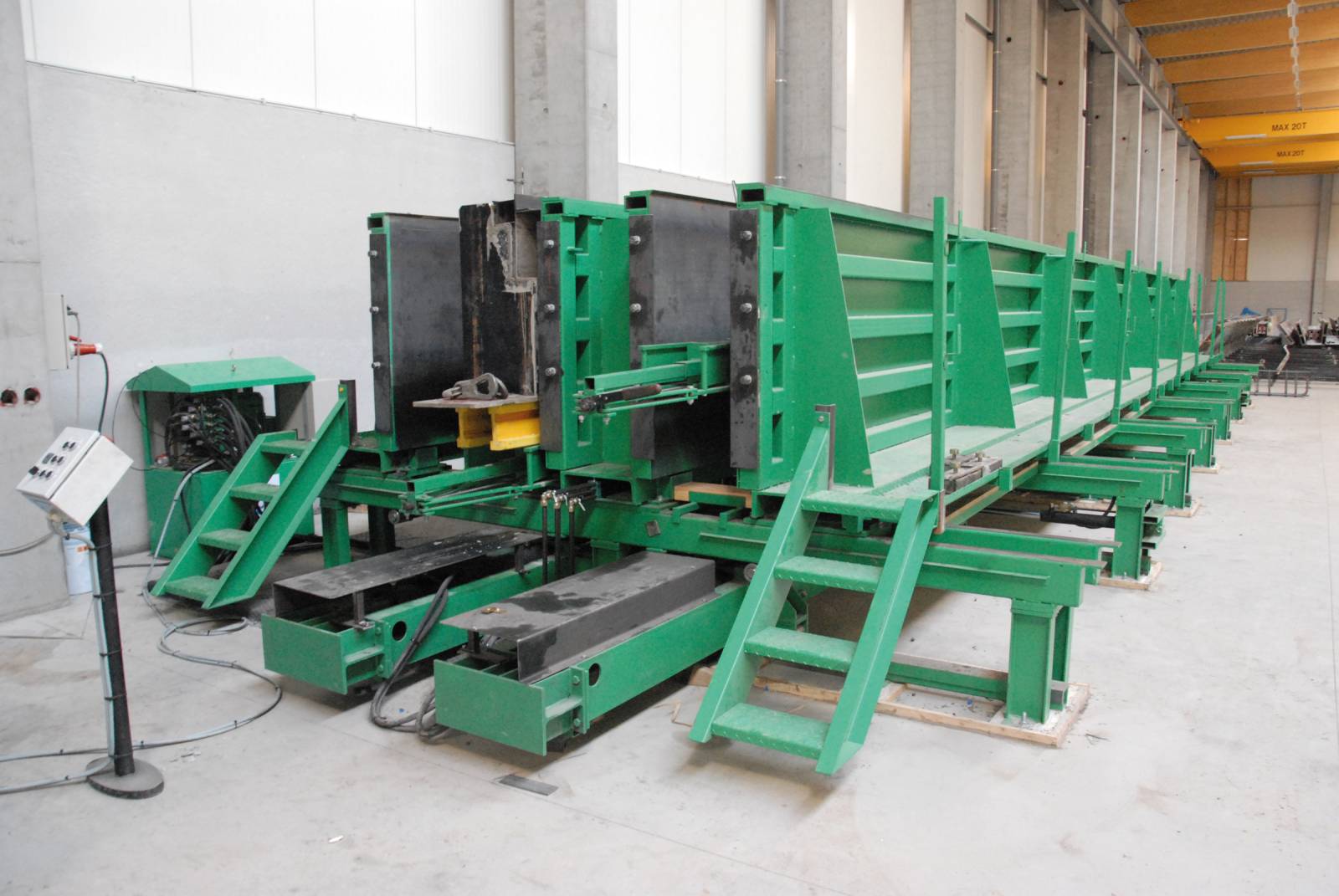

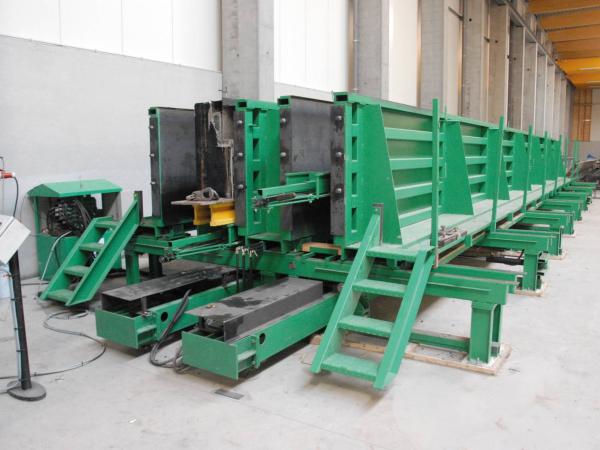

Thanks to integrated hydraulic cylinders, the movable panels can be opened and locked automatically—completely eliminating the need for manual tie-bars on the top. This provides a safer and faster operation with minimal physical effort.
Optional Intermediate Panels for Increased Flexibility
For applications requiring more mould compartments, additional intermediate movable panels can be inserted between the side panels and the fixed centre panel. These extra panels are secured using tie-bars, offering a modular solution for tailored production layouts.
Custom Panel Dimensions for a Wide Range of Elements
The Bibat system allows customers to choose any panel height or length to suit specific project needs. Popular lengths range from 10 m to 15 m, with the option to connect multiple mould units for extended production lines.
The height of the panels, combined with the cylinder stroke length, defines the minimum and maximum cross-sections of the concrete elements. The system supports standard element heights between 600 mm and 1000 mm, covering most typical beam and column requirements.

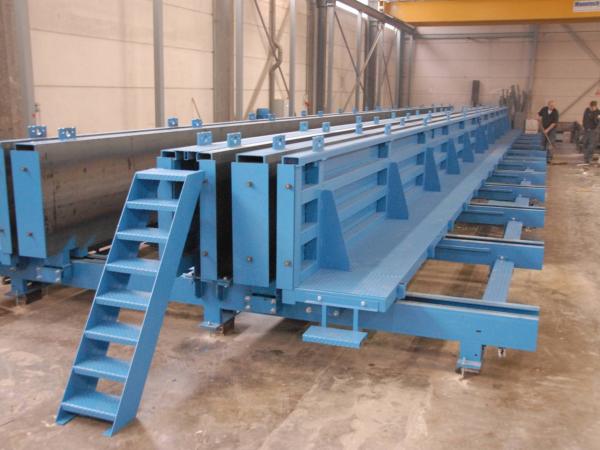

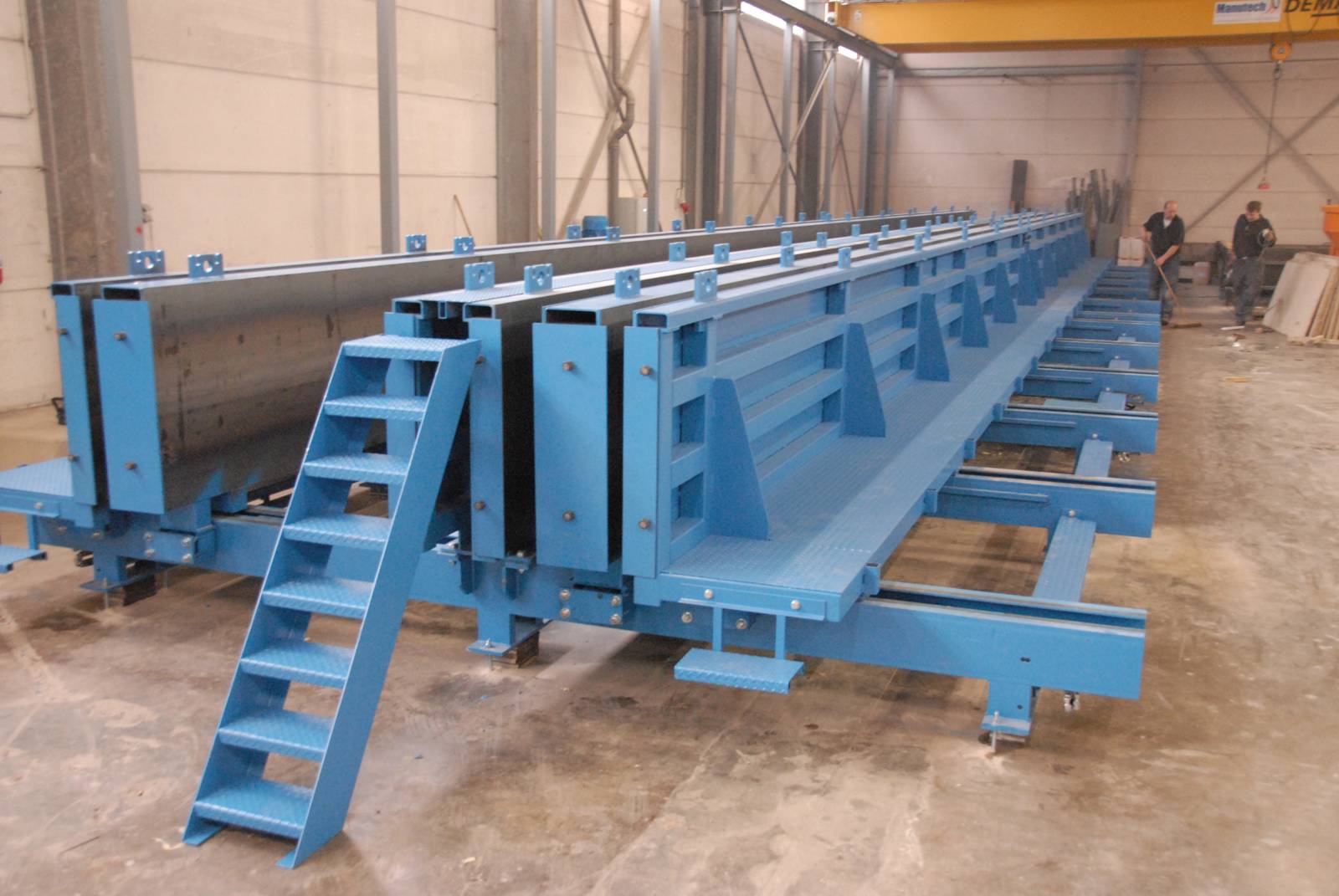

Centre Panel Options: Open or Closed
To adapt to different factory workflows, the centre panel can be supplied as:
- An open panel with an integrated working platform for manual finishing access
- Or a closed panel for more compact, streamlined production
Key Benefits at a Glance
- Fully hydraulic operation for hands-free opening/closing
- No tie-bars required on standard panels → faster cycle times
- Expandable layout with optional intermediate panels
- Customizable dimensions for various precast concrete applications

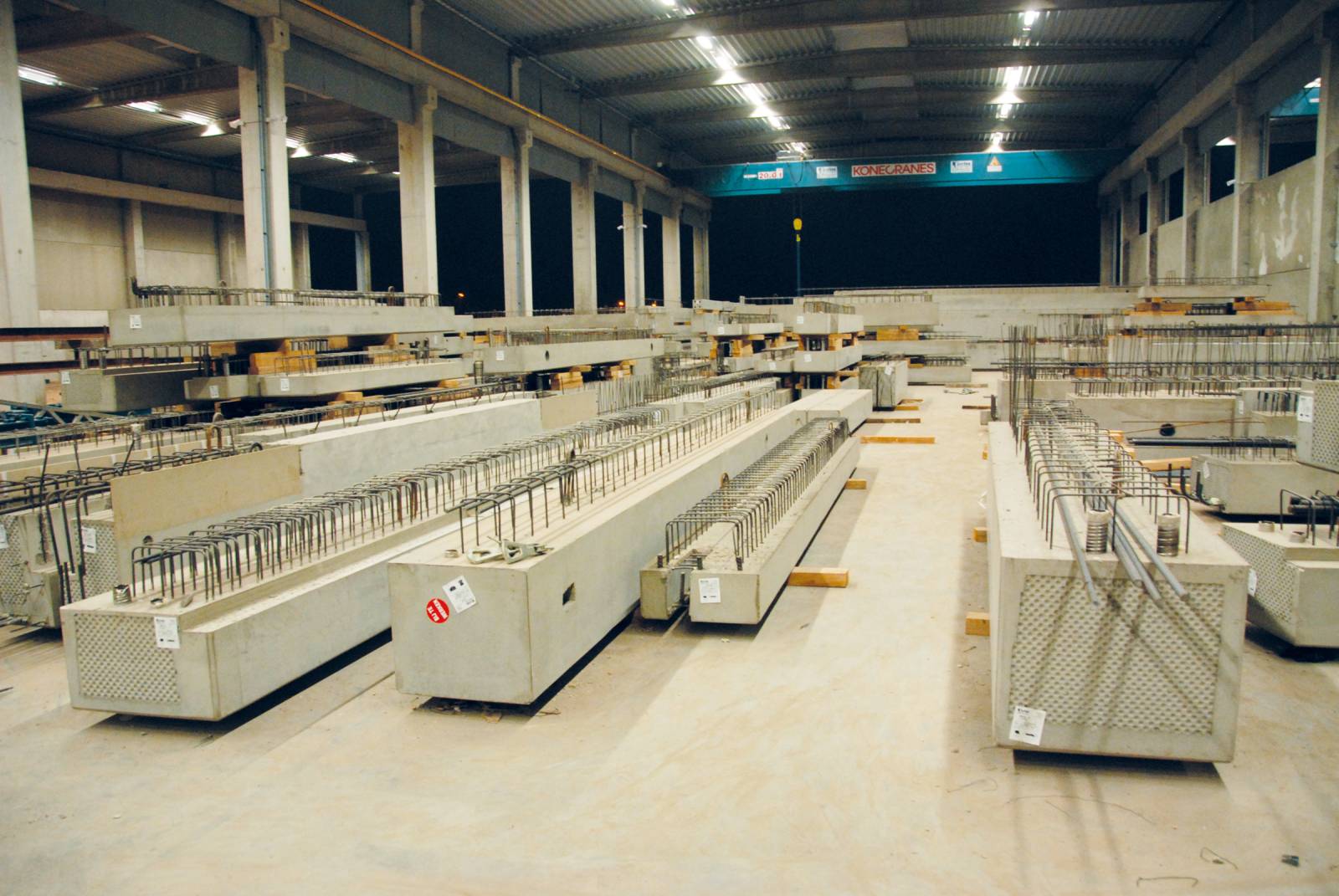

- Ideal for the production of beams, columns, and structural elements
