Moulds for U-shaped drainage channels
Moulds for water drainage systems
Moulds for slotted drains and head walls
Construx-Weckenmann offers a comprehensive range of formwork solutions and tilting tables for the precast production of water drainage infrastructure. Whether for slotted drainage channels, culvert headwalls, or junction boxes, our moulds combine adjustability, surface precision, and efficient demoulding to meet the highest industry standards.

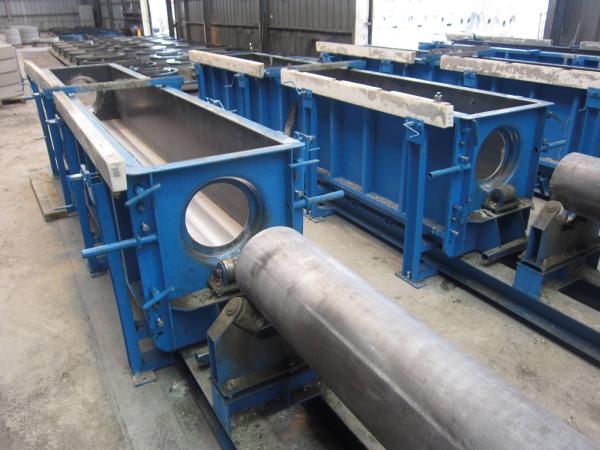

Slotted Drain Moulds – Precision-Made Circular Gutters
Construx-Weckenmann provides a system of four fixed moulds for producing slotted drainage channels with integrated openings and high surface finish.
Element Specifications:
- Length: 4 m
- Outer Section: 600 mm × 600 mm
- Inner Diameter: 300 mm
Mould Configuration:
- Outer mould: Adjustable steel panels to allow variation in cross-section shapes
- Inner form: Machined steel tube placed between two precision end plates
- Plastic wedges placed between the tube and base plate to create drainage slots
Once the concrete has set, the tube is pulled out using a winch system, enabling fast, damage-free demoulding.
Culvert Headwalls – Made on Tilting Tables
For large box culverts, custom-made headwalls are produced using two 13 m × 4 m tilting tables equipped with:
- Adjustable side forms
- Detachable sides
- Box magnets
- Extensions to cast elements up to 4 m wide
Production occurs in two phases to ensure accuracy and handling efficiency.
Standard Headwalls for Round Culverts – Modular Moulds
Construx-Weckenmann offers three modular moulds for standard headwall production—suitable for rectangular and V-shaped profiles—allowing quick, repeatable casting in one single pour.
Adjustable Dimensions:
- Width: 1600 mm to 2550 mm
- Height: 1150 mm to 1800 mm
These cassette-style moulds accommodate different shapes and features and enable top-down casting, ensuring fair-faced finishes on all sides.
Adjustable Junction Box Moulds
Custom-designed junction box moulds are available with:
- Fully adjustable geometry
- Connection ports on all four sides for easy integration with slotted drains and culverts
Ideal for stormwater networks, infrastructure drainage, and urban utility systems.
Key Benefits
- Complete mould system for drainage channels, headwalls, and junction boxes
- High-precision machining ensures fair-faced finishes and dimensional accuracy
- Modular moulds with adjustable inserts for multiple size variations
- Efficient top-down or tilt casting with smooth demoulding
- Custom solutions for infrastructure, roadworks, and utility projects
