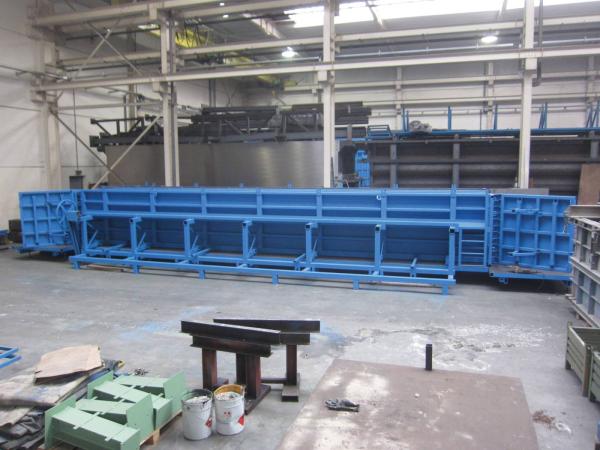

Insertcaster with 2 different heights
Insertcaster
Side-cast stair mould for straight precast flights
The Insertcaster by Construx-Weckenmann is a fully equipped side-cast stair mould designed for the efficient production of straight stair flights, where only one side requires manual finishing. With its adjustable components and flexible insert system, it is ideal for high-quality, high-volume precast stair production with custom step profiles.
Designed for Side-Cast Efficiency

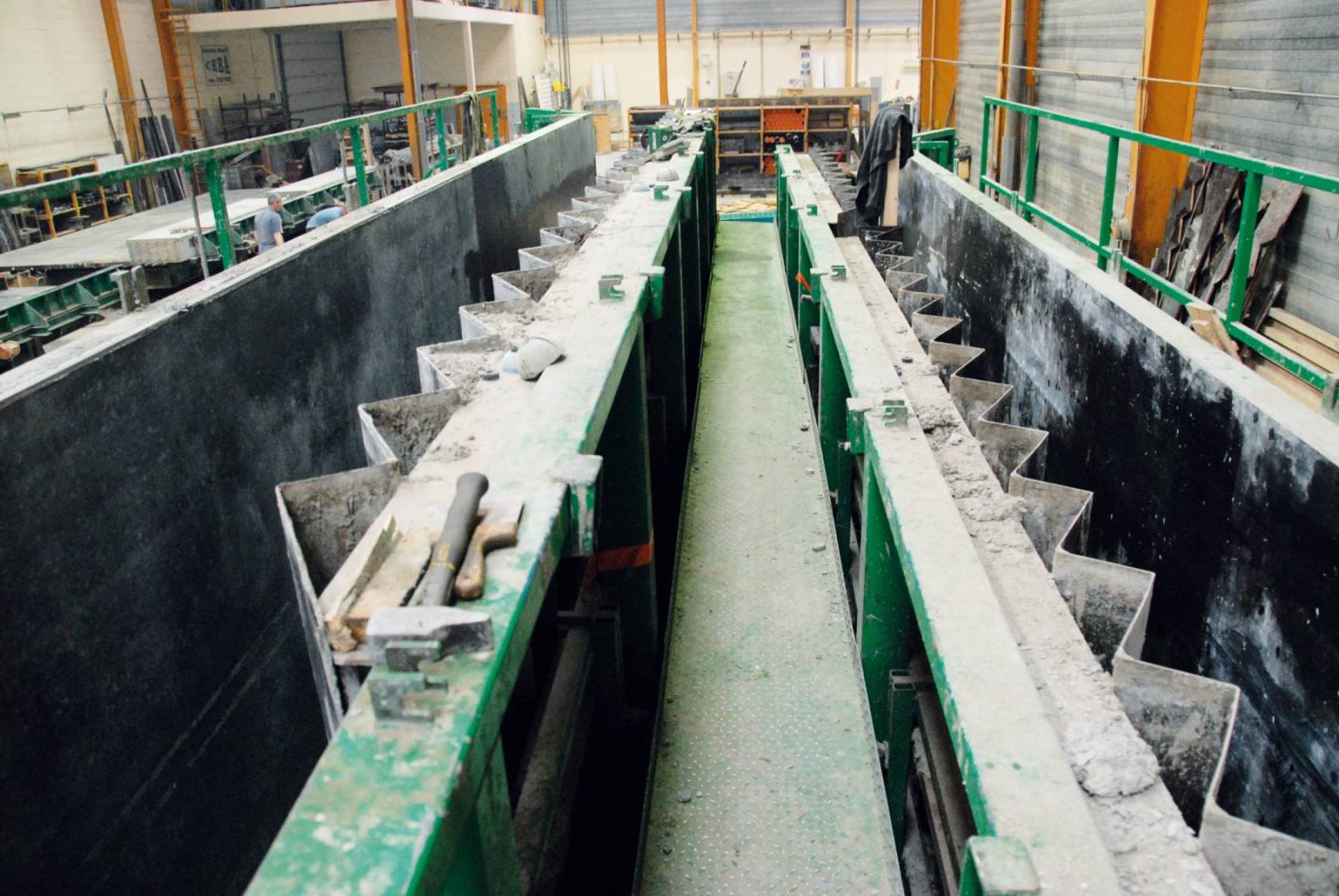

Unlike traditional upright or top-pour moulds, the Insertcaster uses a side-casting process, significantly reducing manual labor and finishing time. The mould accommodates straight stair flights and is particularly effective when one visible side of the staircase is sufficient.
Configuration & Dimensions

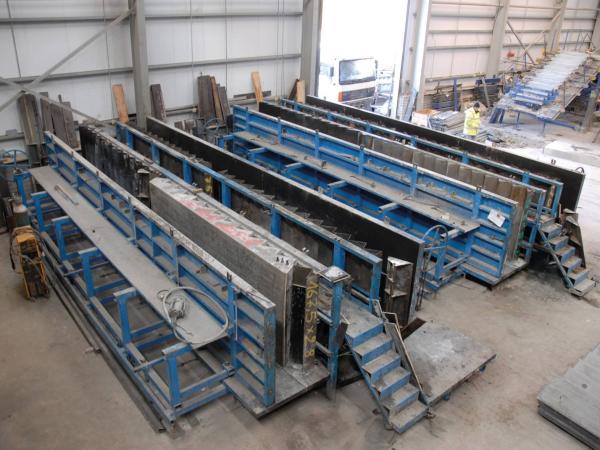

- 1 fixed centre panel with open structure on both sides
- 2 movable outside panels, all three with integrated working platforms
- Access stairs at both ends provide full access to the centre panel – Can be removed if producing a flight with bottom landing
- Base length: 9 m
- Total mould length (with landings): 12 m
Adjustable & Customizable Features
The Insertcaster includes:
- Adjustable landing panels
- Interchangeable landing inserts
- Additional tables for extending or adapting landing zones
- Open-frame design of the centre panel allows for:

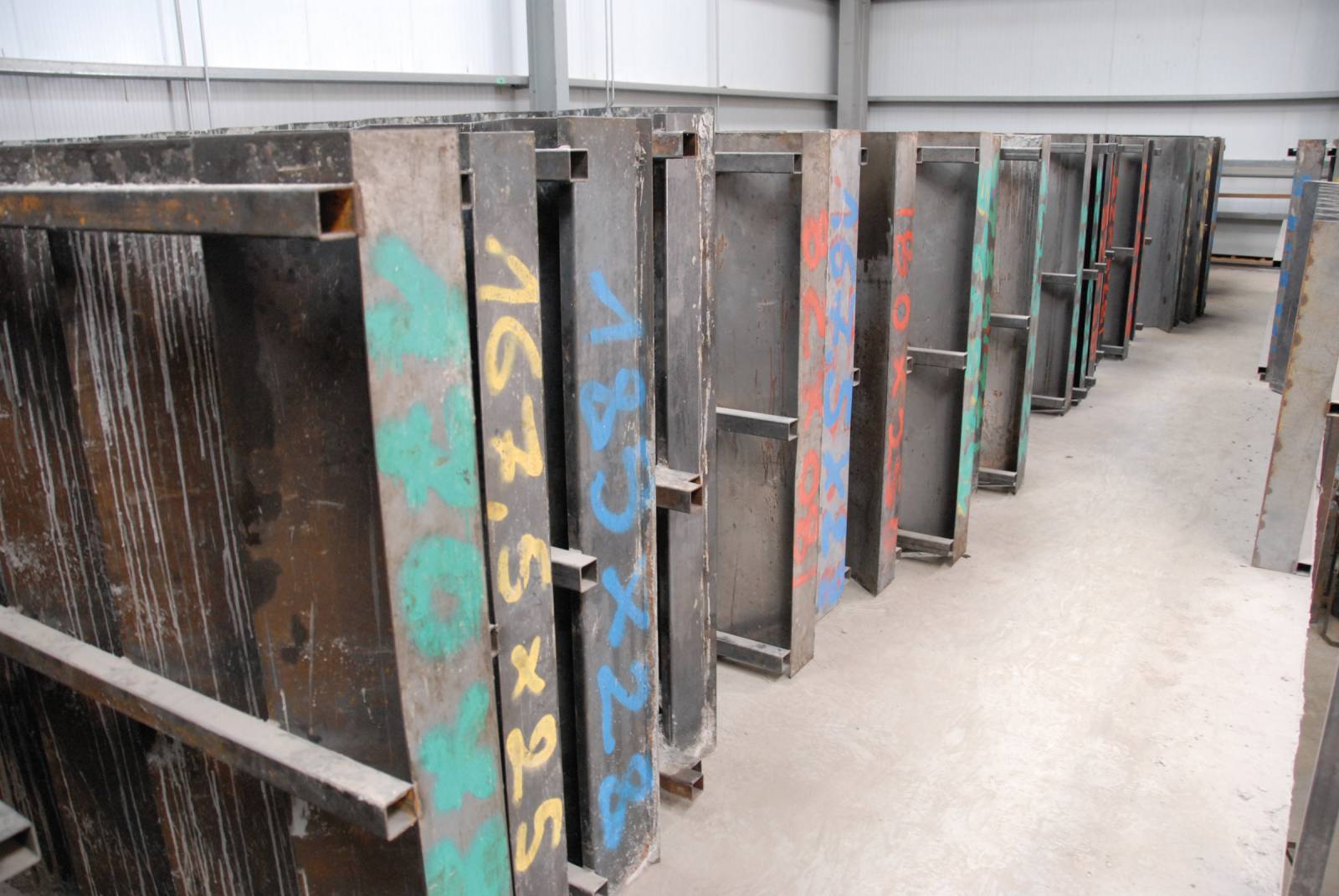

- Steel or timber inserts
- Custom step profiles:
- Straight steps
- Steps with cut-back
- Steps with cut-back and nose
Most step configurations include integrated landing inserts, ensuring seamless formwork transitions and optimal production results.
Key Benefits
- Side-cast method for reduced finishing time
- Highly flexible insert system for multiple stair types
- Includes working platforms and removable access stairs
- Suitable for custom or standardized straight flights
- Efficient use of space with compact footprint
- Built for daily use in precast stair production lines
