MBM On-site Mobile Battery Mould in Singapore
MBM - Mobile Battery Moulds
Mobile mould with a quick setup for on-site use, to make precast walls with a fair-faced finish on both sides.
The MBM (Mobile Battery Mould) by Construx-Weckenmann is a transportable, high-capacity formwork system designed for the efficient on-site production of precast concrete wall elements. Engineered to deliver fair-faced surfaces on both sides, this mould is ideally suited for large-scale housing developments, particularly in urban or remote construction sites where speed, surface quality, and setup time are critical.
Key Application: On-Site Precast for Urban Housing Projects
The MBM is a game-changing solution for:
- Densely populated urban areas
- Locations with limited crane access or factory infrastructure
- Fast-track residential construction using precast wall elements
Technical Specifications
- 20 casting pockets, each measuring 7100 mm x 3500 mm
- Wall thickness range: 100 mm to 300 mm
- Overall casting capacity: up to 500 m² per day
System Features
- Electric opening and closing of pockets
- Hydraulic securing system for reliable locking
- Integrated soffits and side-forms
- High-frequency electric vibrators with frequency converter
- Energy-efficient heating using natural hydration heat
- Full steel working platforms with stairs and handrails

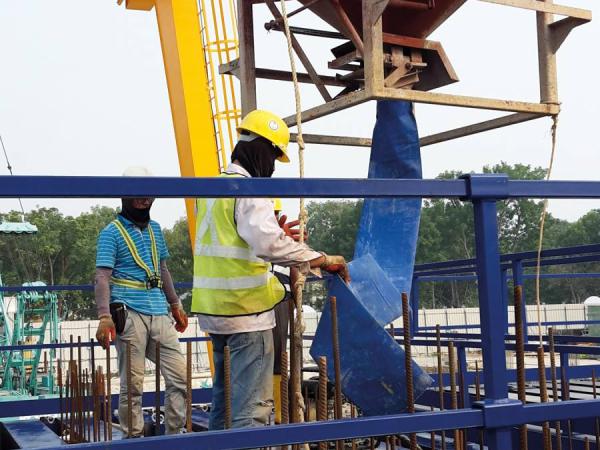

- Delivered with a custom-designed concrete bucket for fast and clean filling
Mobility & Quick Installation
The MBM is designed for ease of transport and rapid deployment:
- Quick setup and dismantling in just 2 days
- Fully portable between project sites
- Perfect for mobile precast production lines
Key Benefits
- High output: 500 m²/day precast capacity
- Produces double-sided fair-faced wall panels
- Fast, clean setup with minimal civil work
- Reduces need for off-site transport of large precast elements
- Conforms to on-site safety standards with full platforms and access systems
