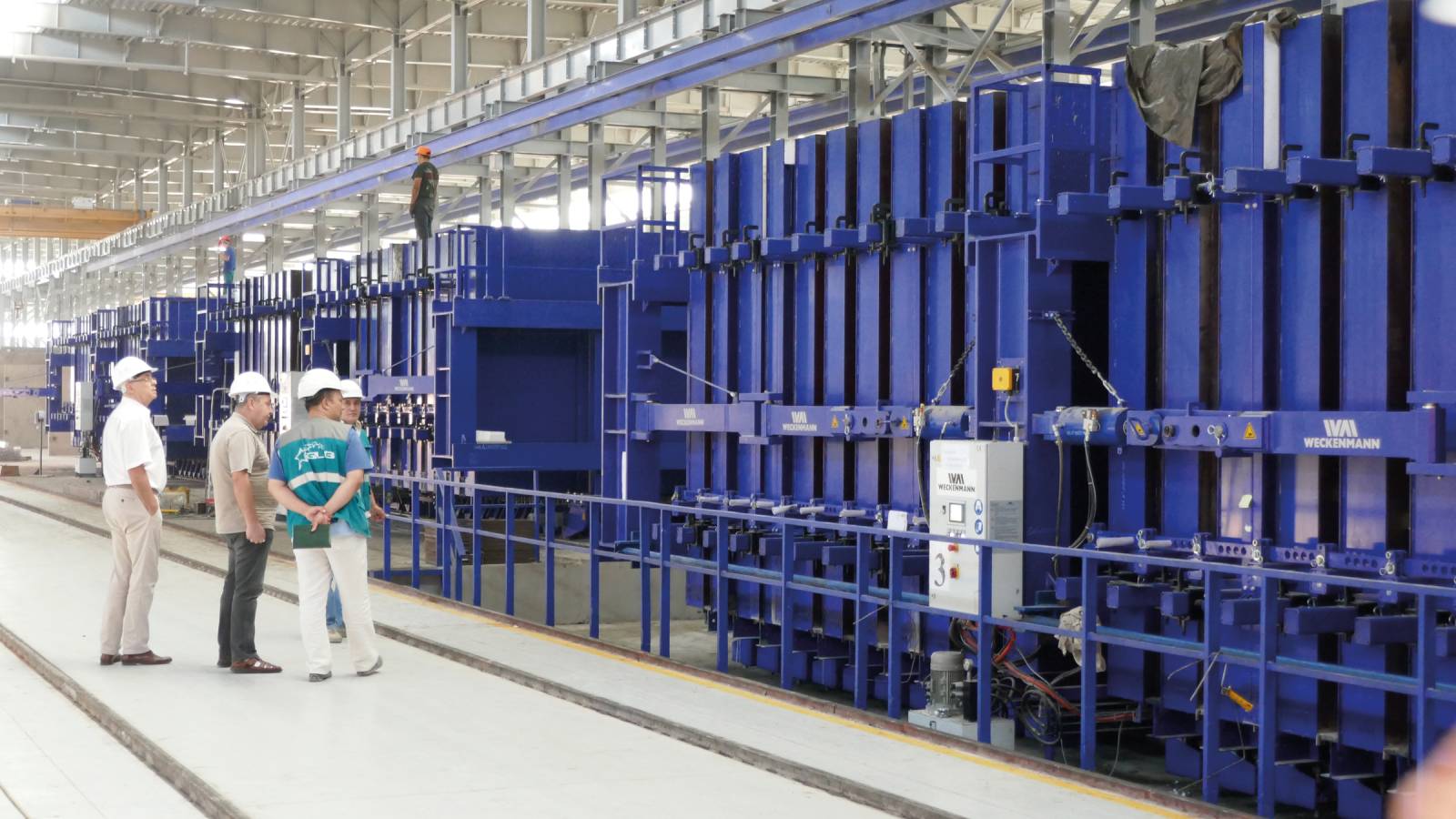

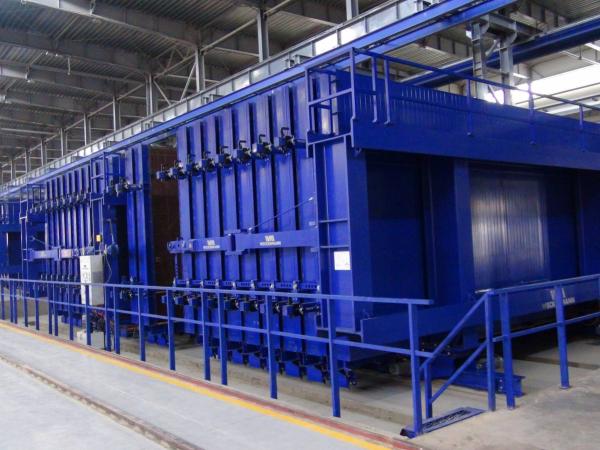

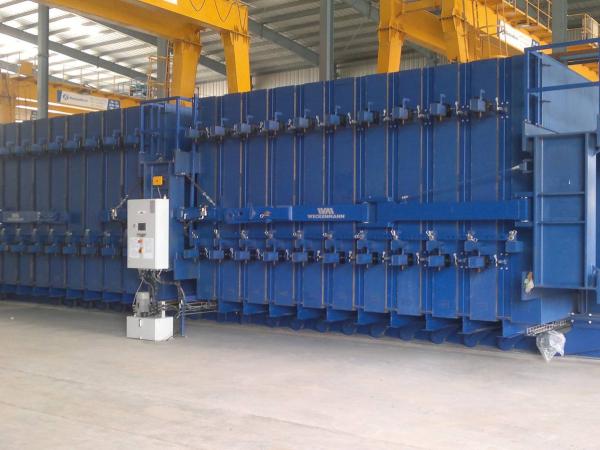

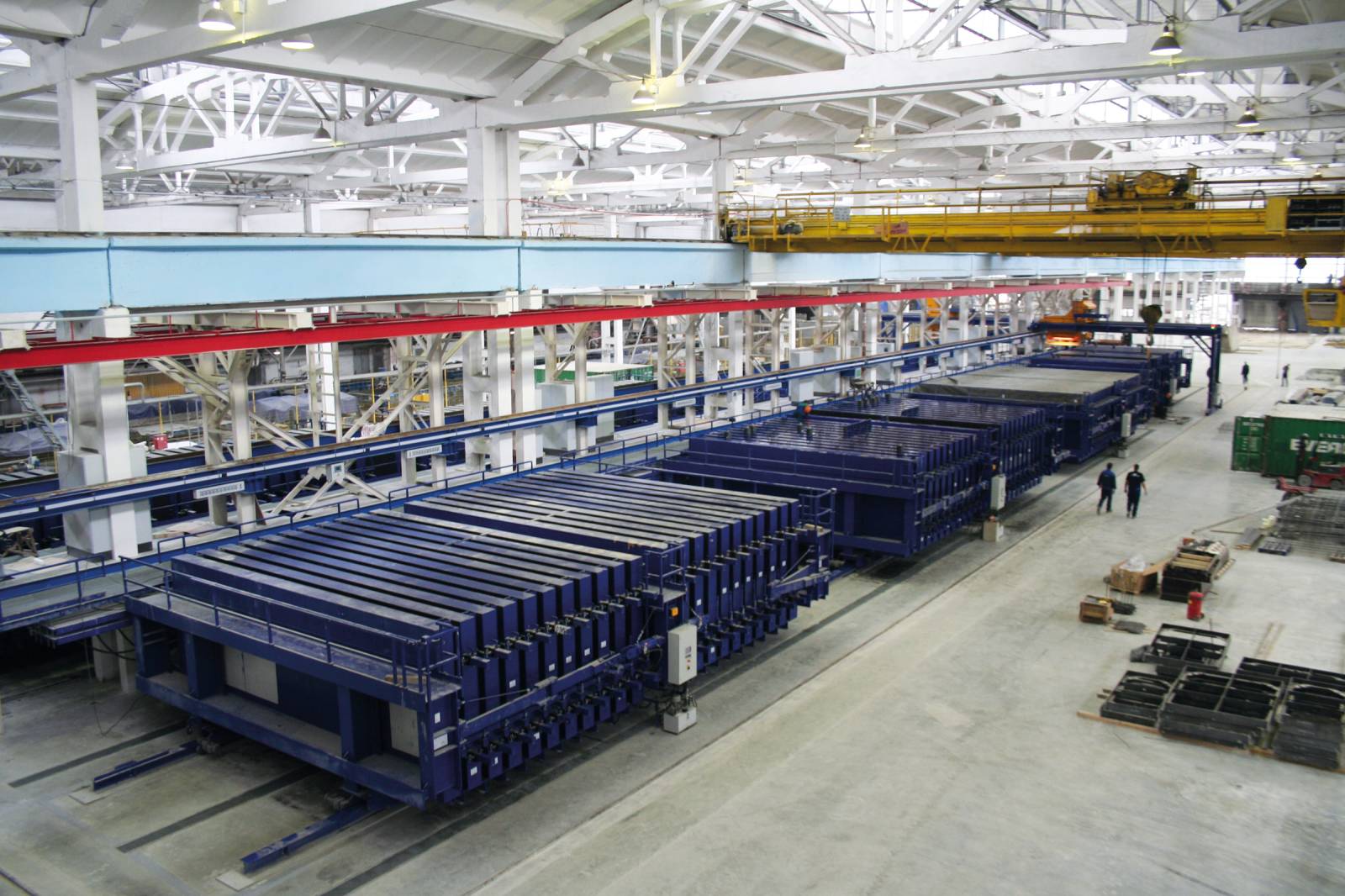

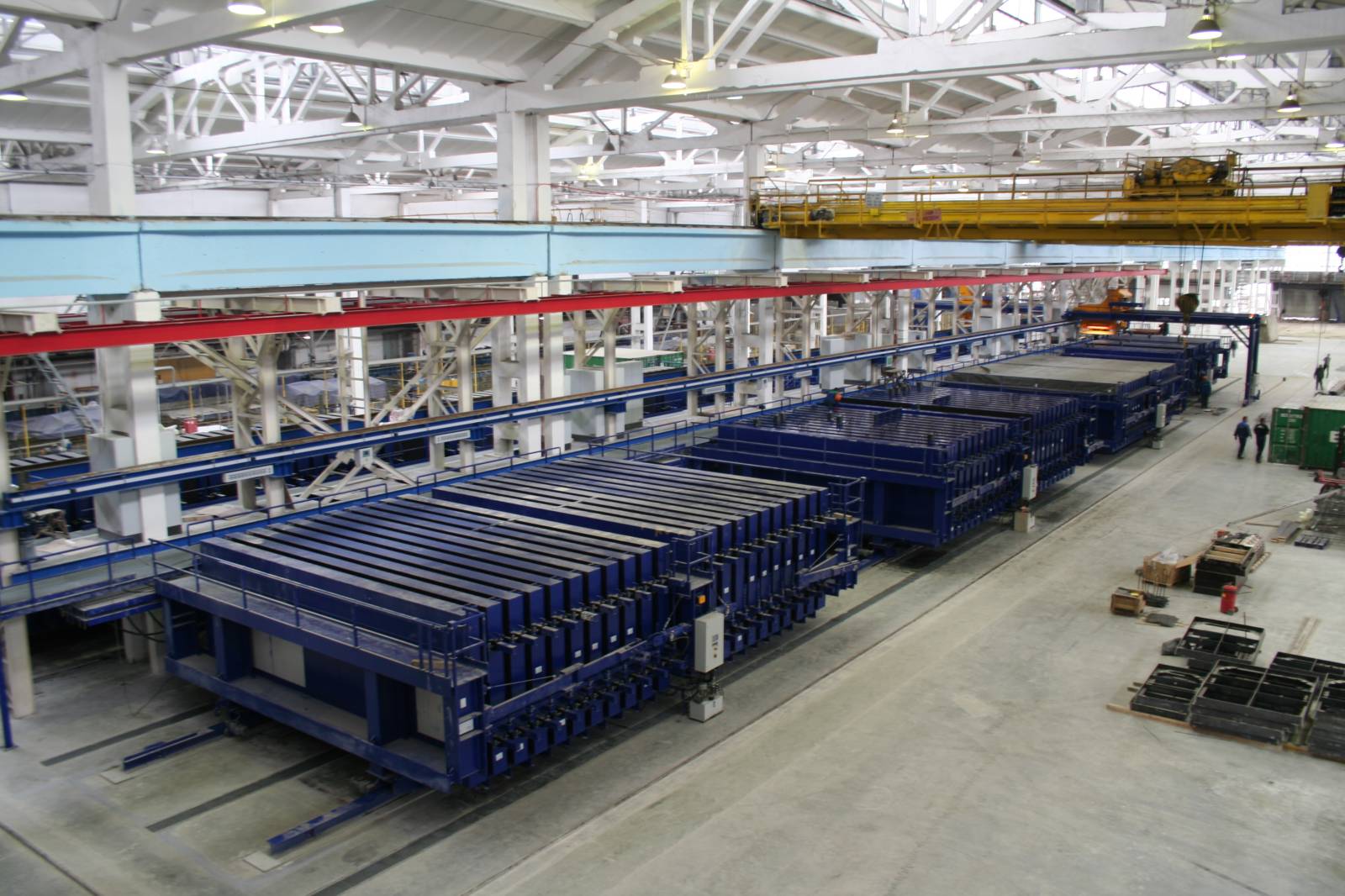

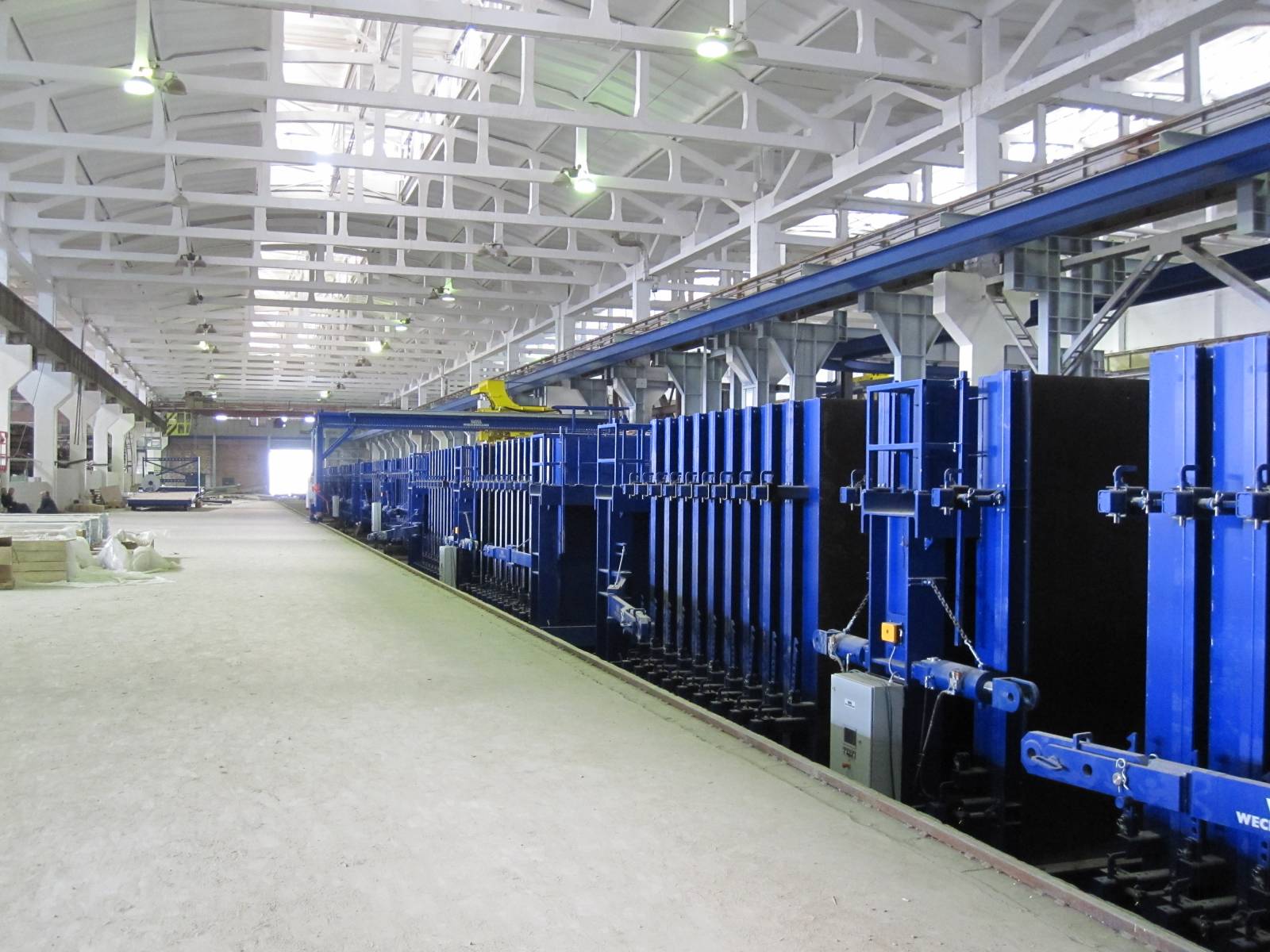

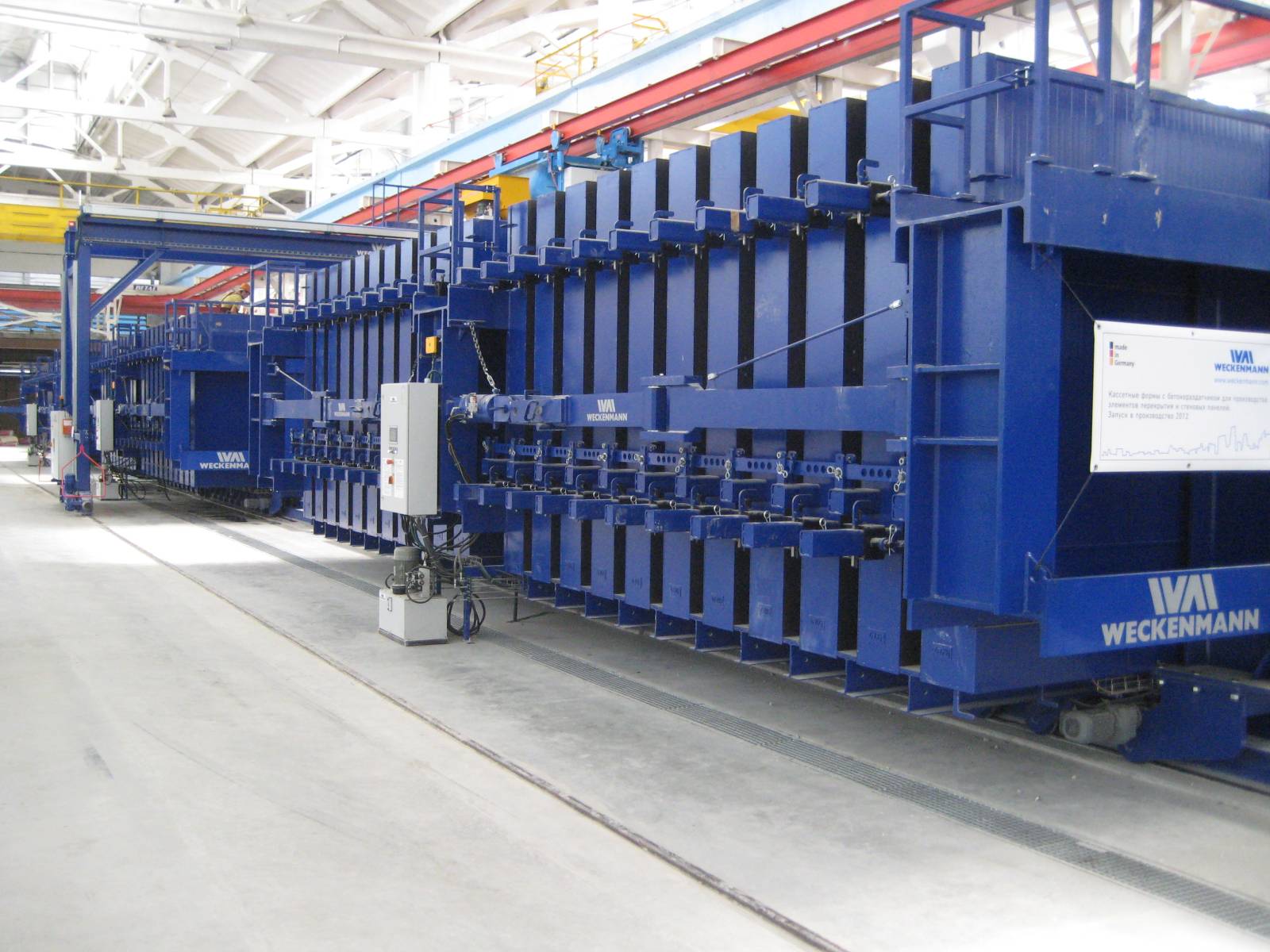

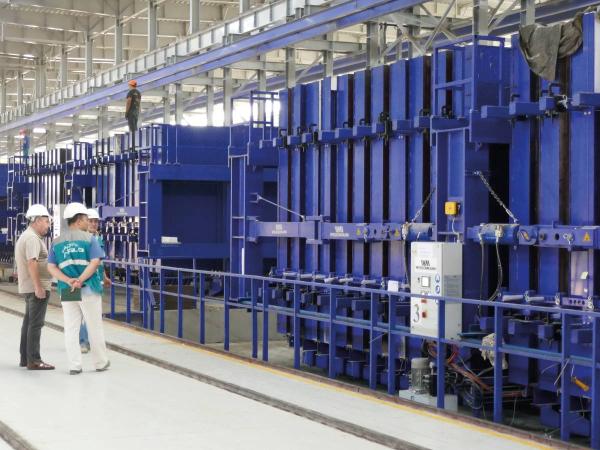

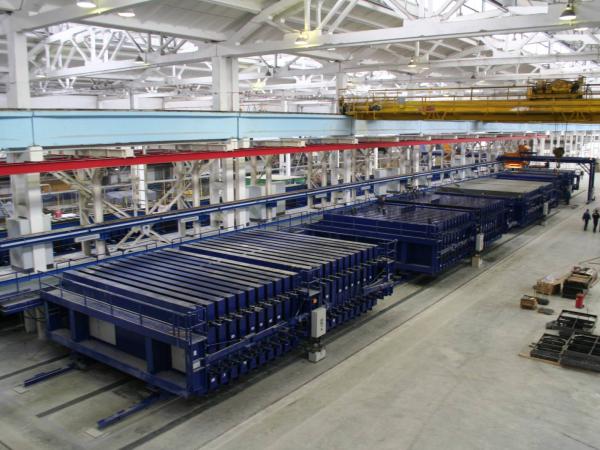

Hydraulic multi-pocket wall battery moulds

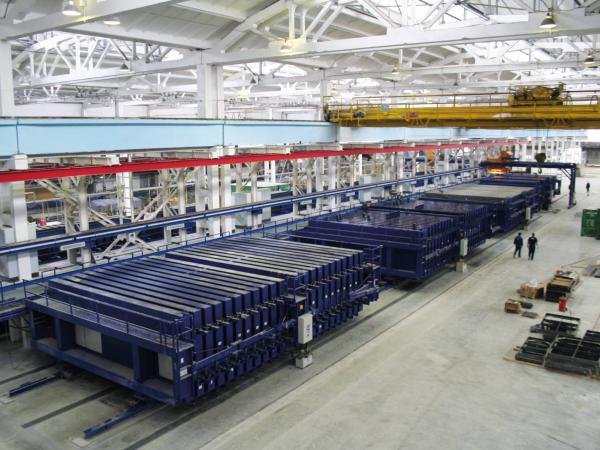

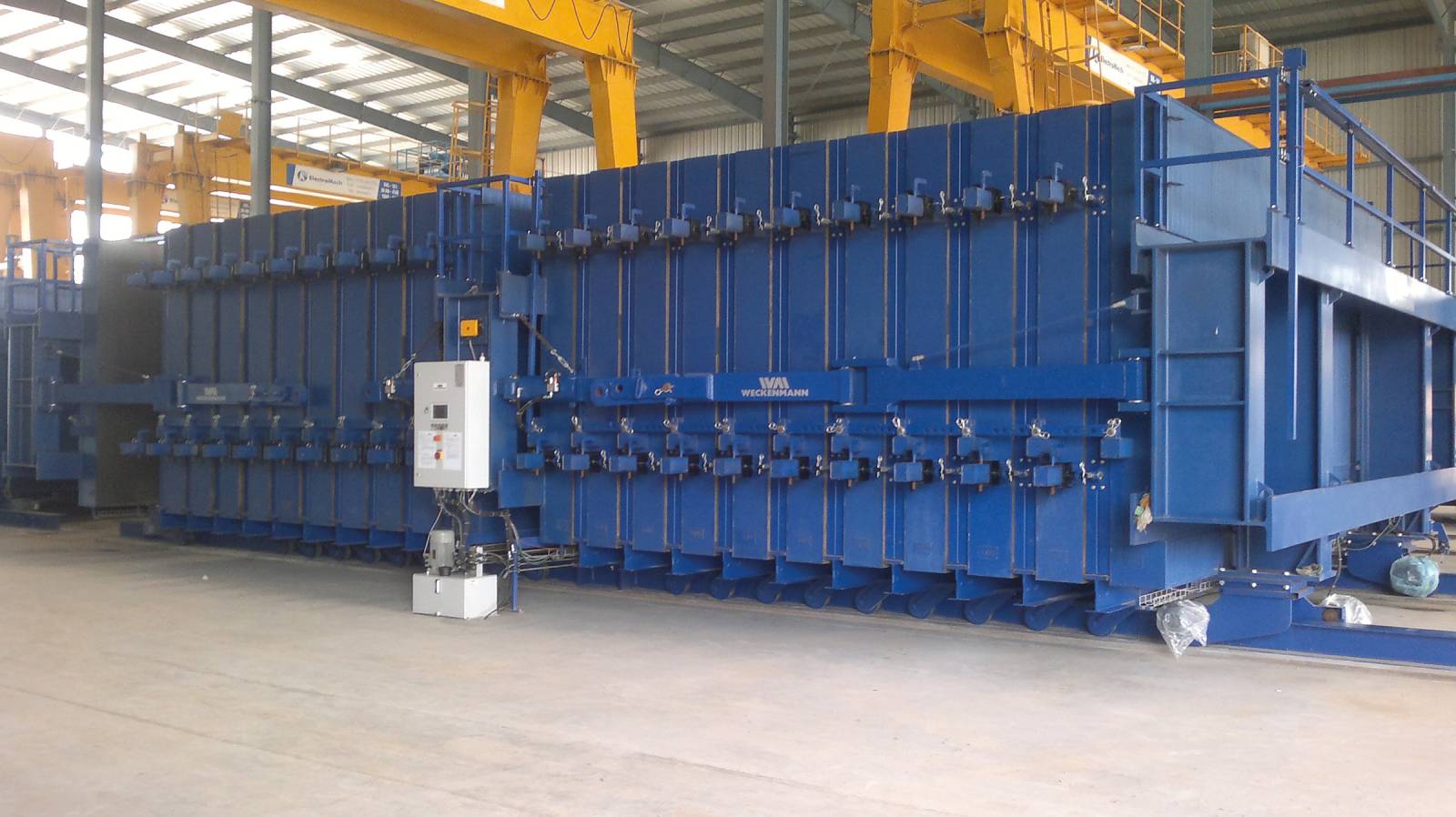

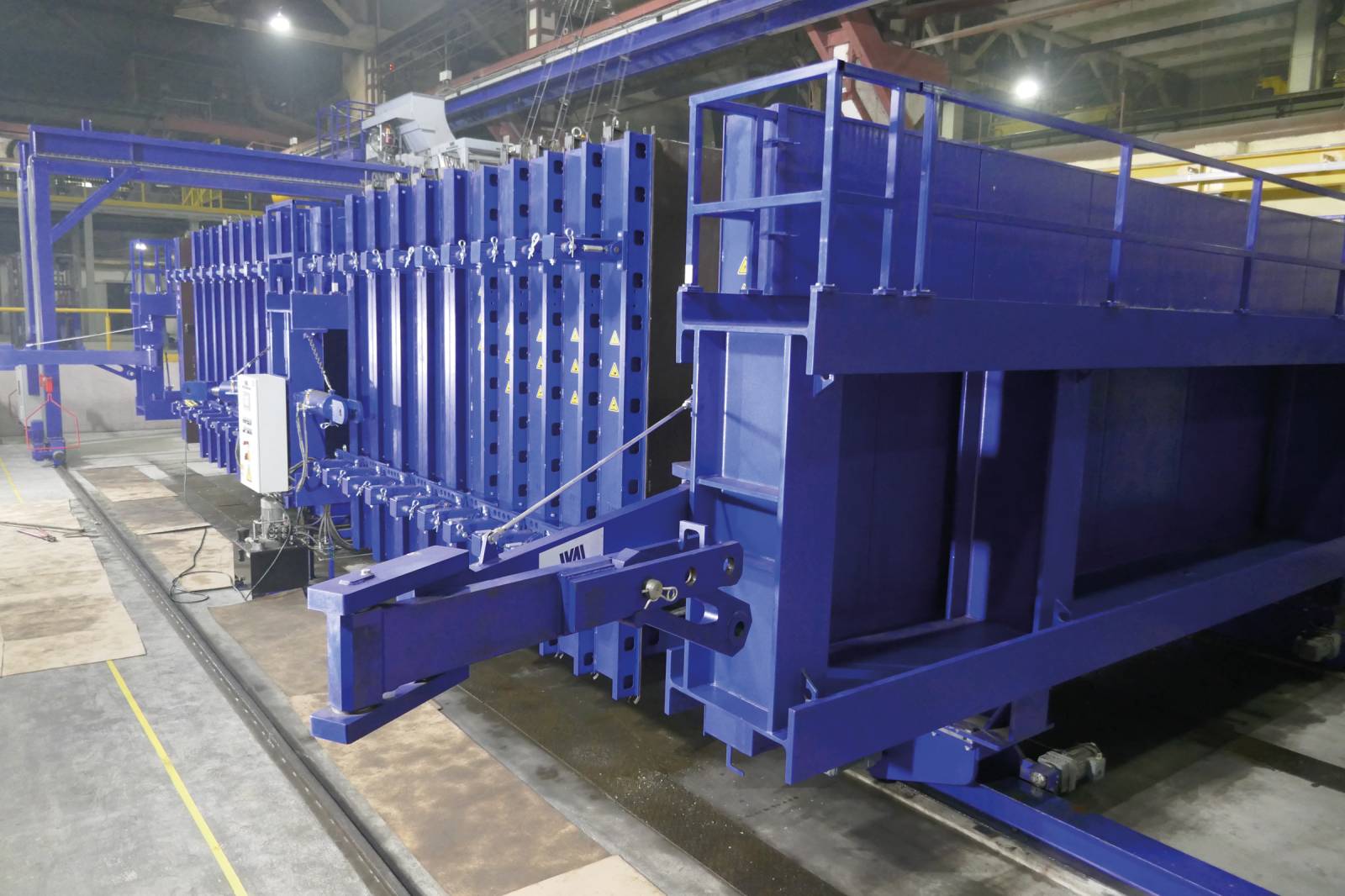

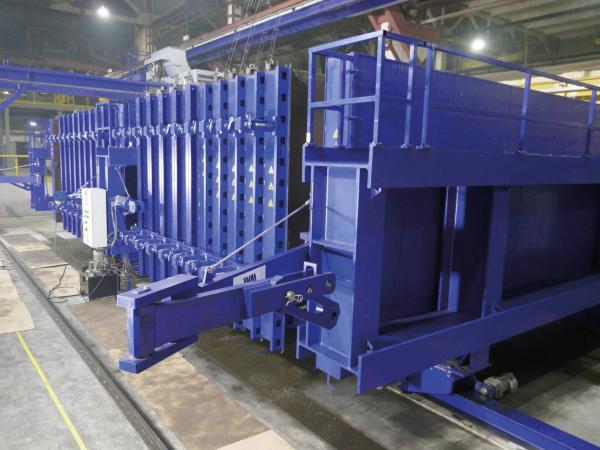

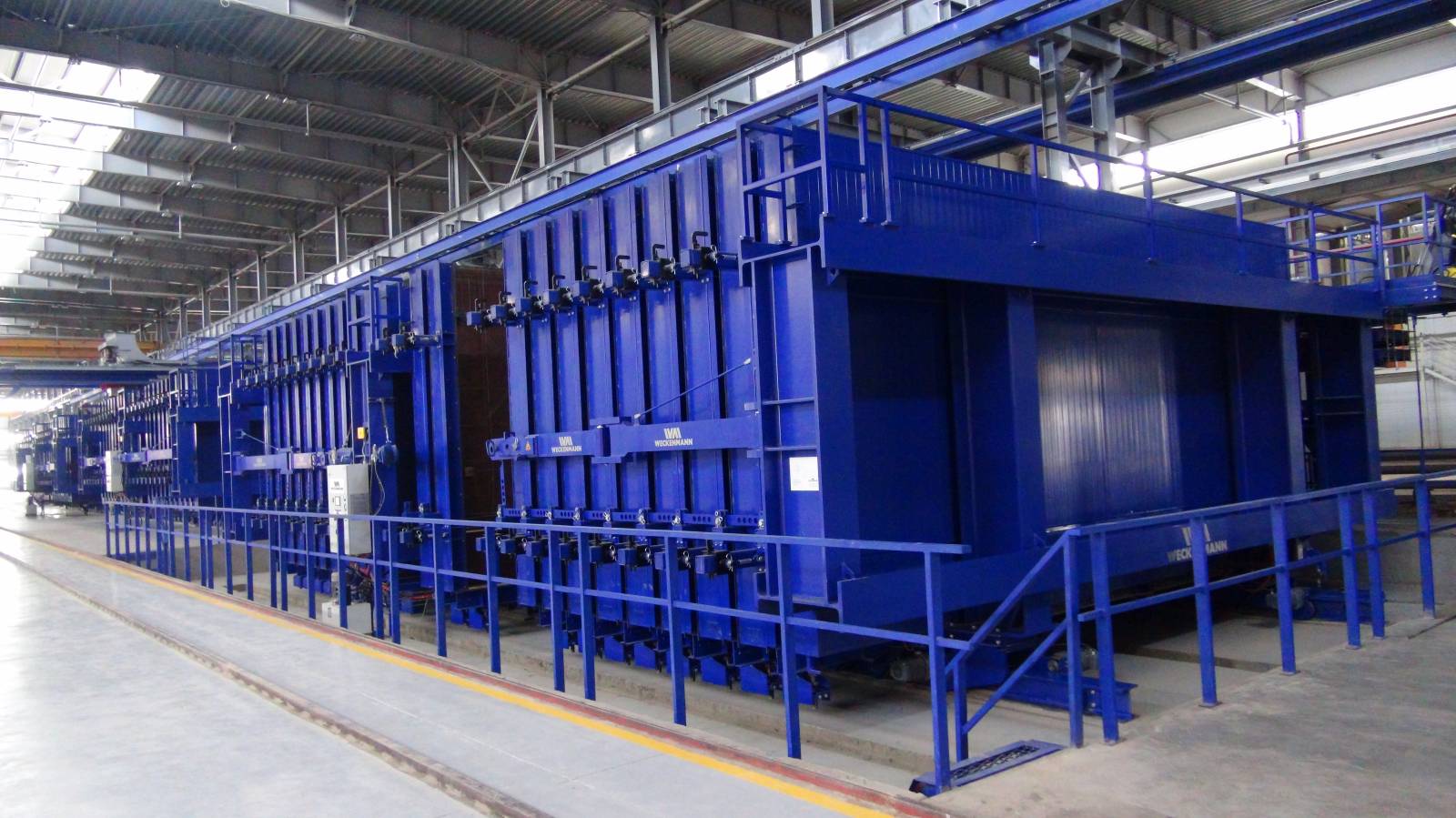

The Hydraulic Multi-Pocket Wall Battery Mould from Construx-Weckenmann is a space-saving, high-performance formwork system designed for the stationary production of precast wall panels with smooth surfaces on both sides. Engineered for durability, precision, and ease of use, it streamlines vertical casting in a compact footprint, ideal for modern precast factories.
Compact design with floor-level accessibility

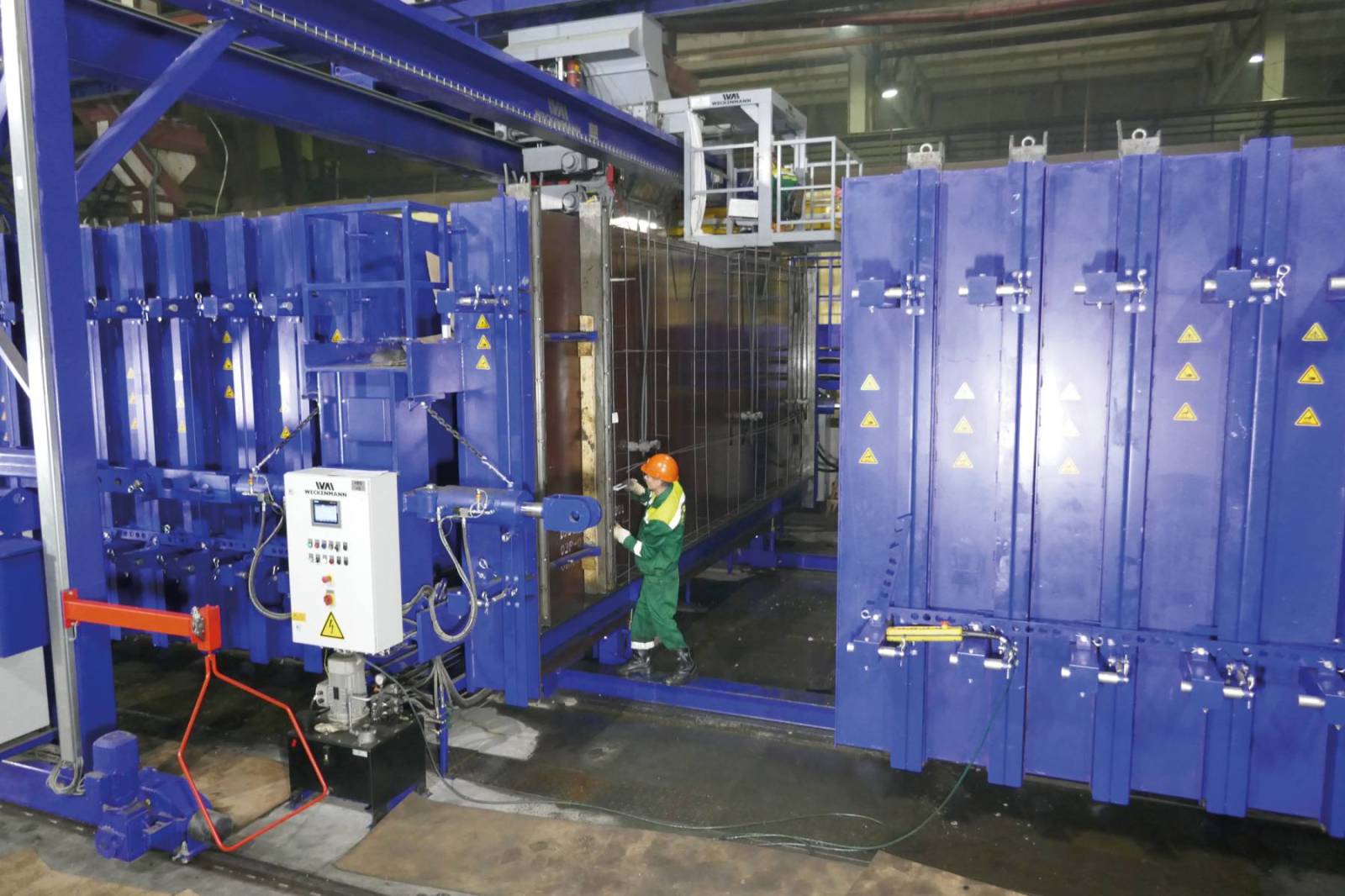

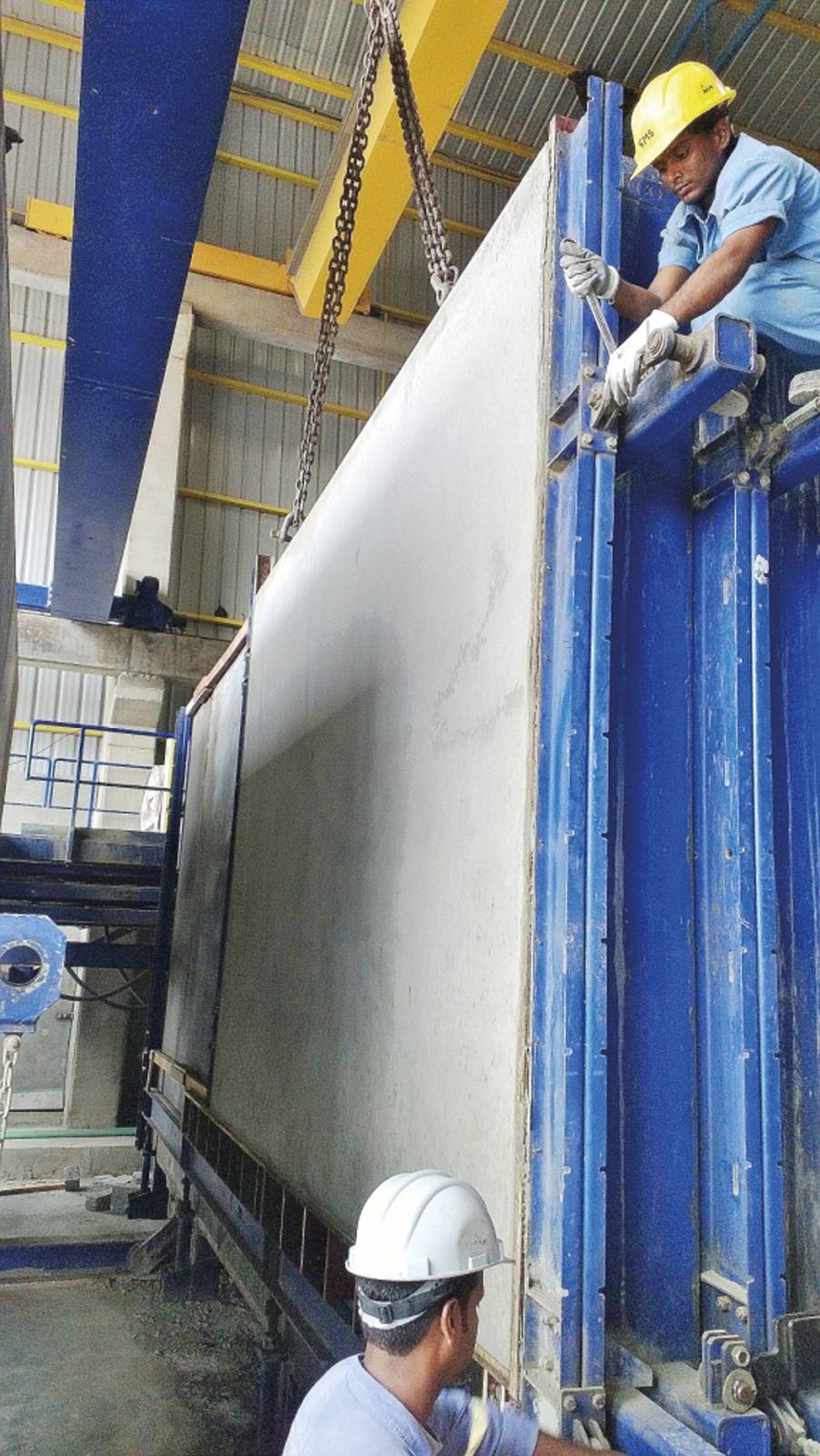

Thanks to its floor-running pocket layout, this battery mould allows easy access between panels, enabling operators to move freely during setup, inspection, and demoulding. The design is particularly well-suited for production halls with limited crane hook height, ensuring simple and safe demoulding even in confined vertical spaces.
Hydraulic operation & remote control
- Automatic opening and closing of pockets via motorized drives
- Electric movement of outer panels ensures smooth and controlled transitions
- Operated using a wireless radio remote control, enhancing flexibility and safety on the shop floor

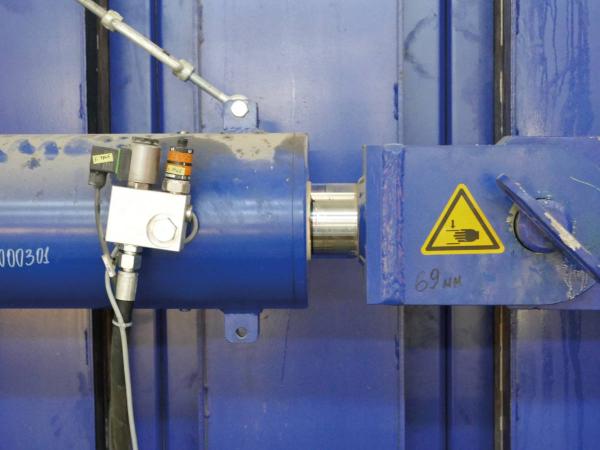

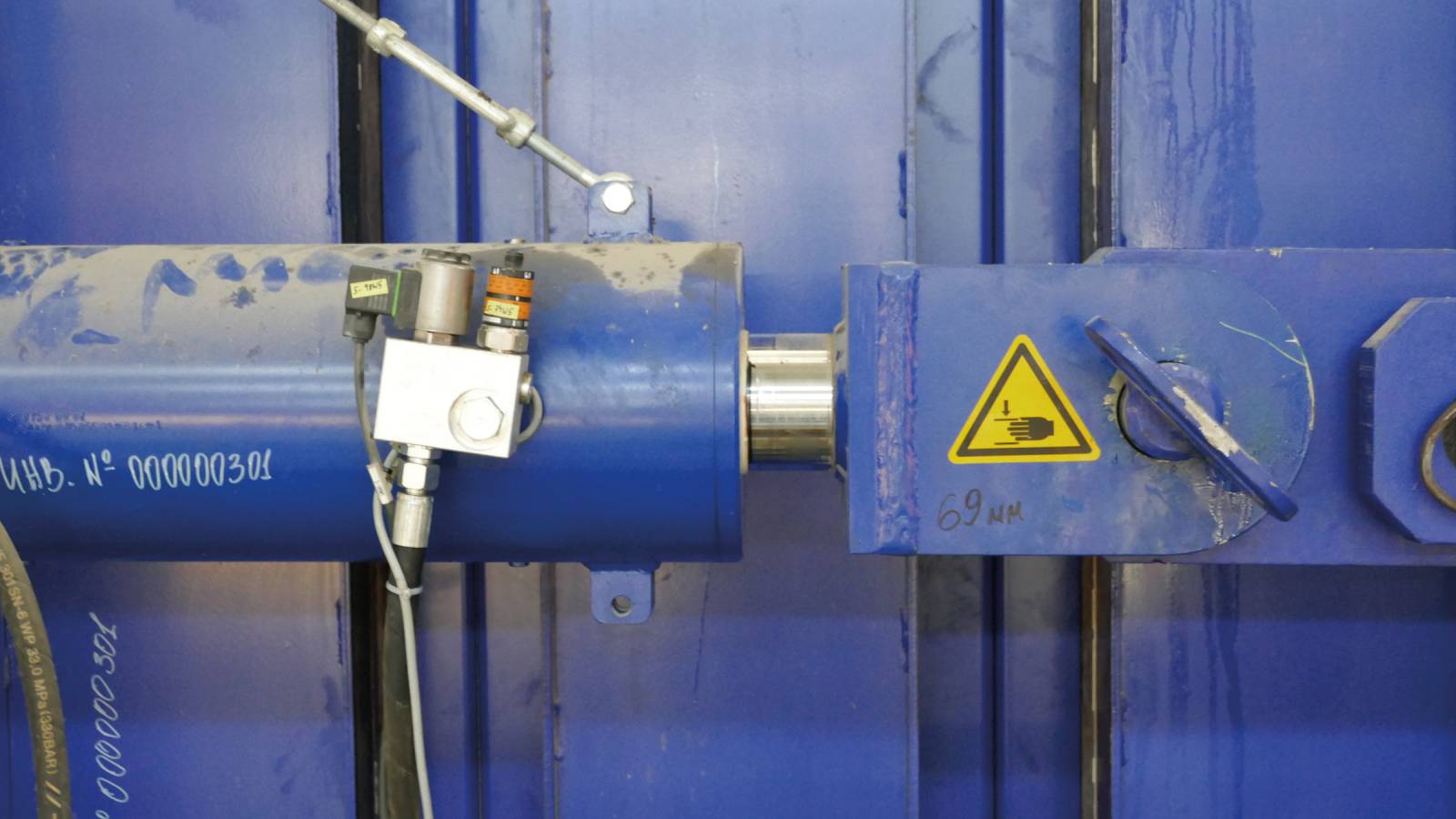

- Hydraulic locking system with pump control guarantees airtight sealing and minimal manual labor
Vibration-optimized performance
The mould is equipped with:
- Special vibrators to ensure uniform compaction
- Low-noise operation and minimal wear, improving operator comfort and extending lifespan
- Optimized for achieving premium fair-faced concrete surfaces
Optional integrated heating system
For controlled curing, the system can be equipped with built-in heating pipes that operate using hot water circulation.
This ensures:
- Even temperature distribution
- Energy-efficient heating
- Consistent curing quality of precast wall elements
Leak-proof construction
- Bottom and side-forms made from precision steel, optionally fitted with rubber sealings to prevent leakage

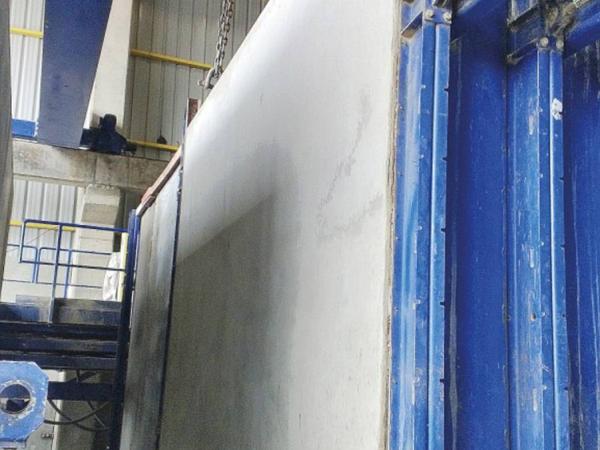

- Ideal for clean, edge-true casting with tight dimensional tolerances
Key benefits
- Space-saving vertical casting with easy access between moulds
- Hydraulic automation and radio remote operation
- High surface quality with vibration-optimized design
- Optional hot water heating system for consistent curing
- Leak-proof, steel-and-rubber construction with hydraulic locking
- Suitable for high-volume, double-sided wall panel production
