Hydraulic multi-pocket wall battery moulds

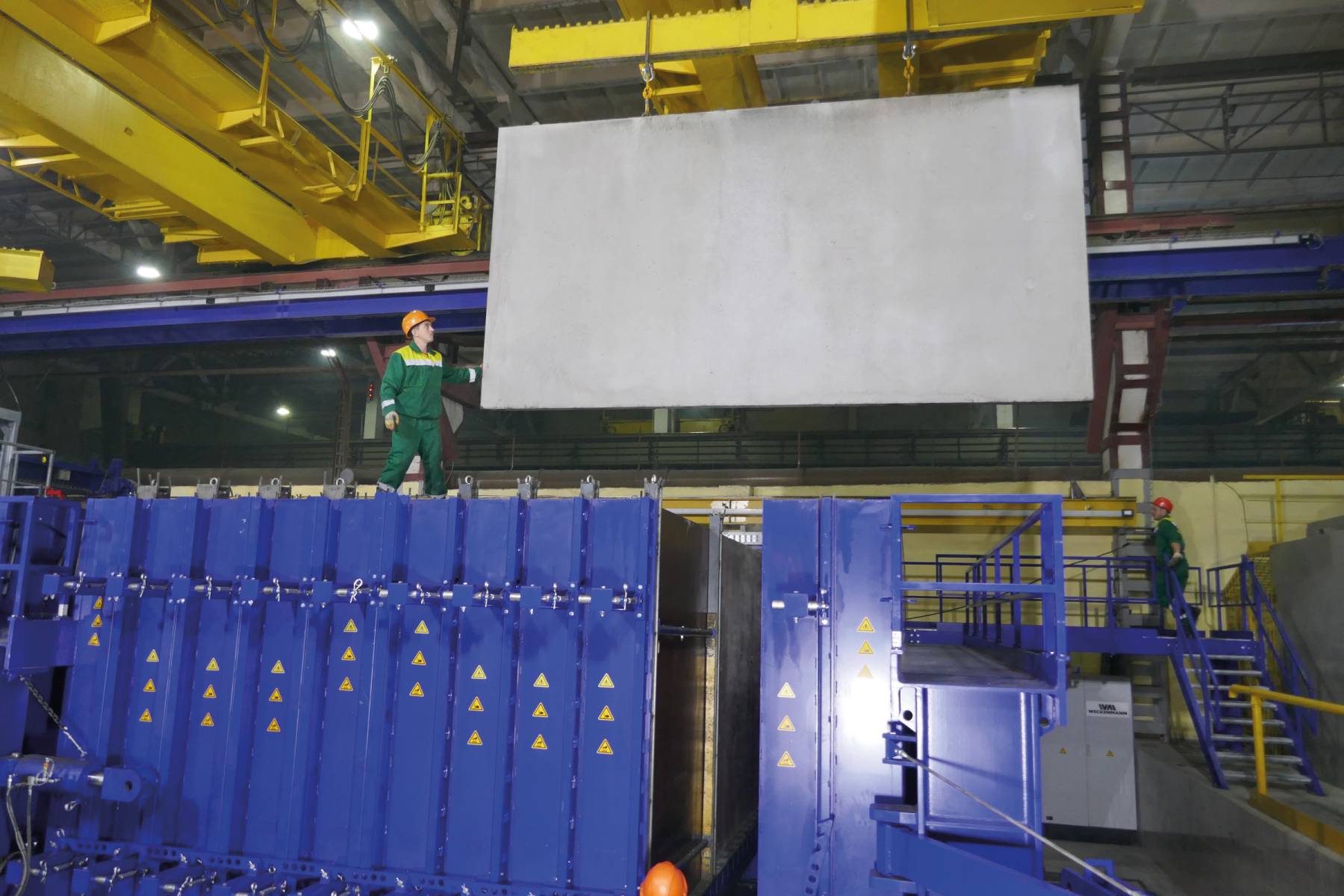

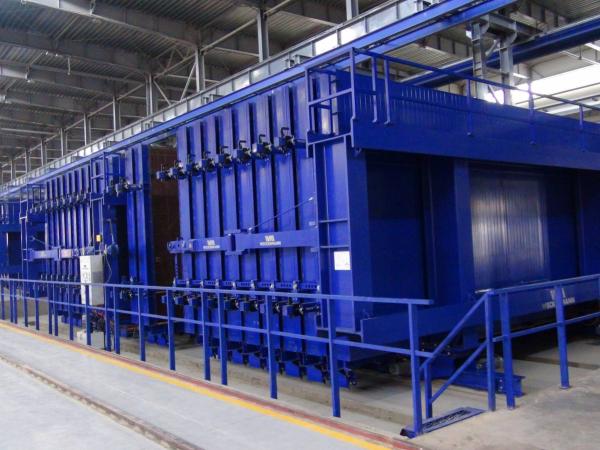

Fully equipped vertical wall battery mould for double-sided fair-faced walls
Fully equipped vertical wall battery mould for double-sided fair-faced walls

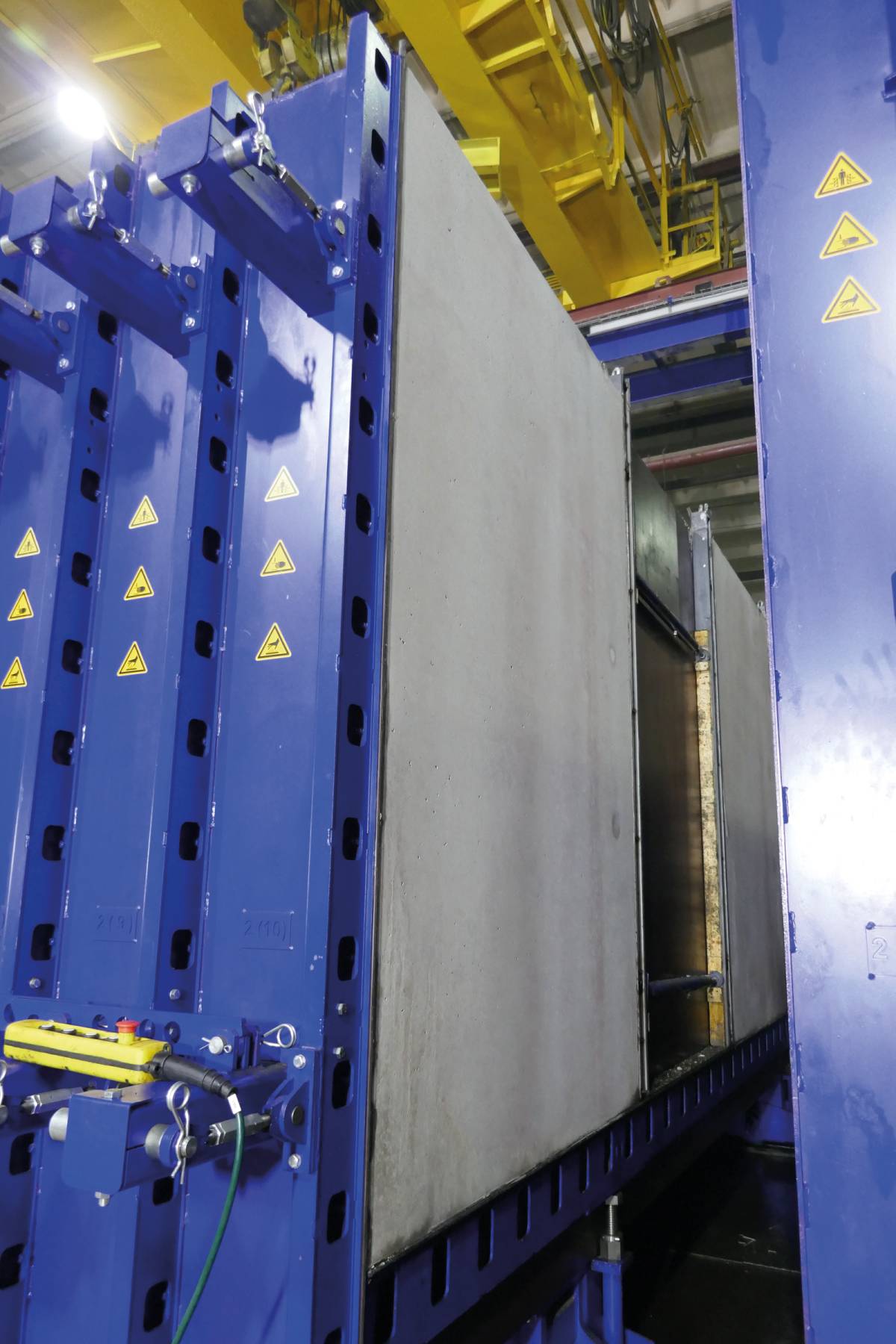

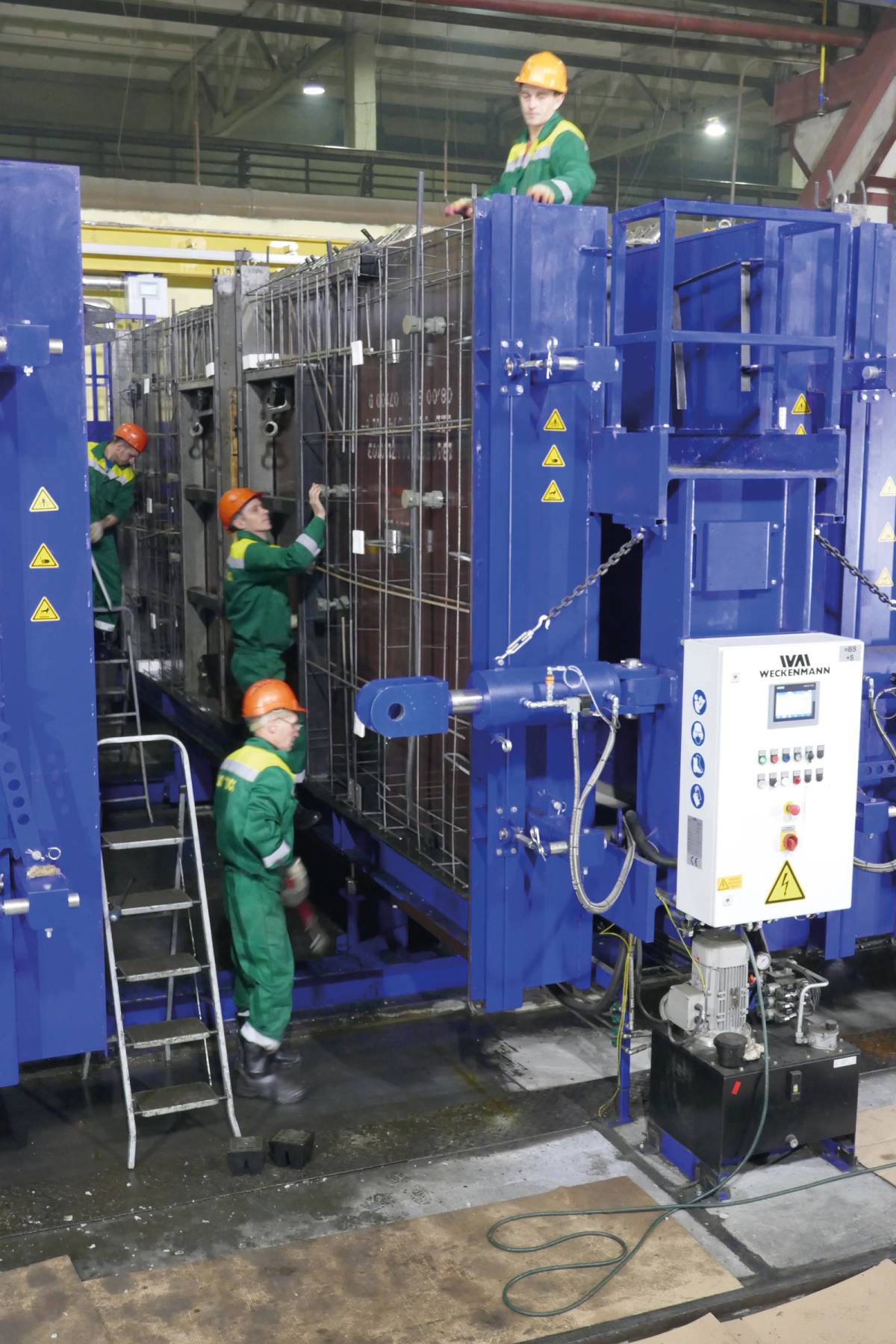

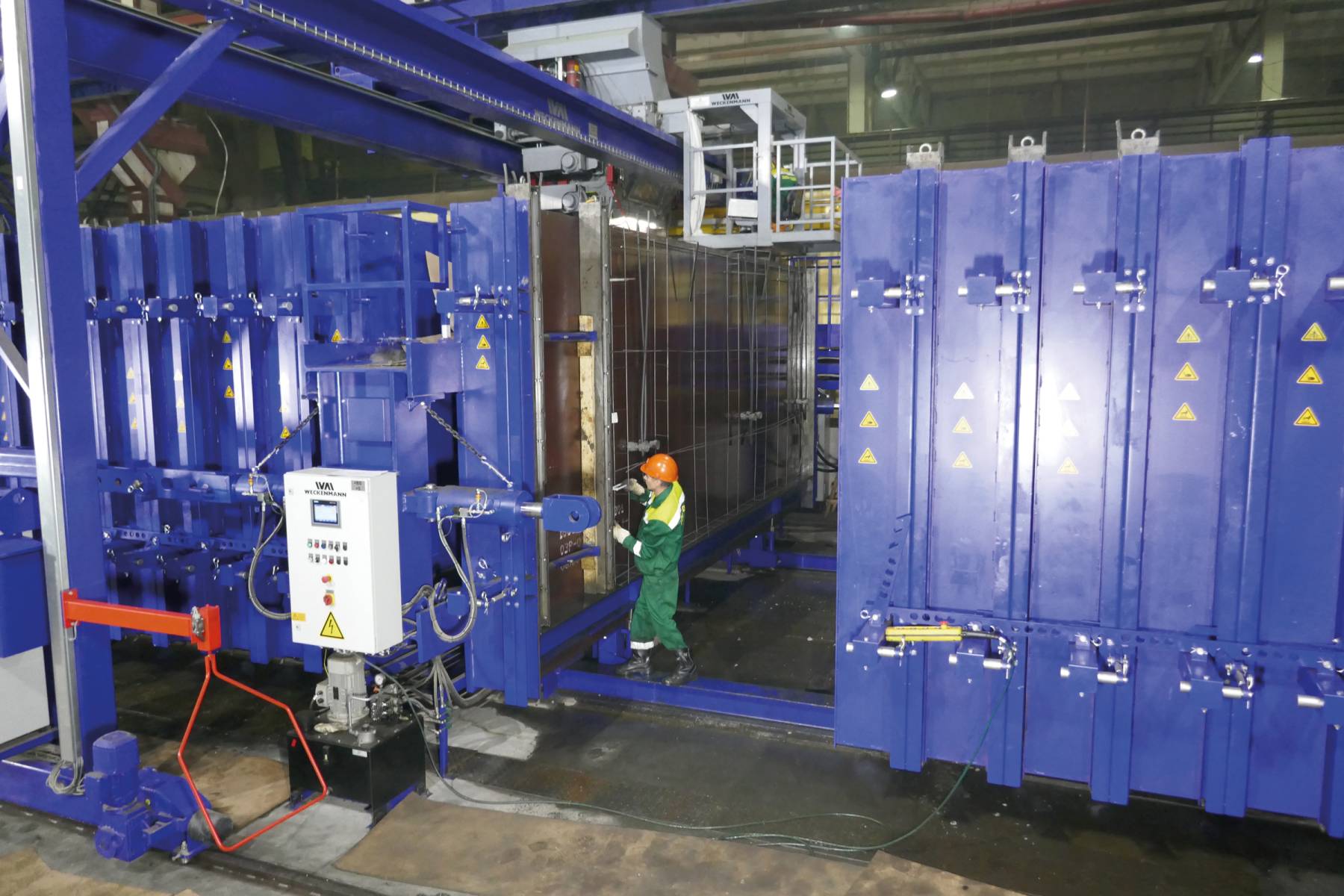

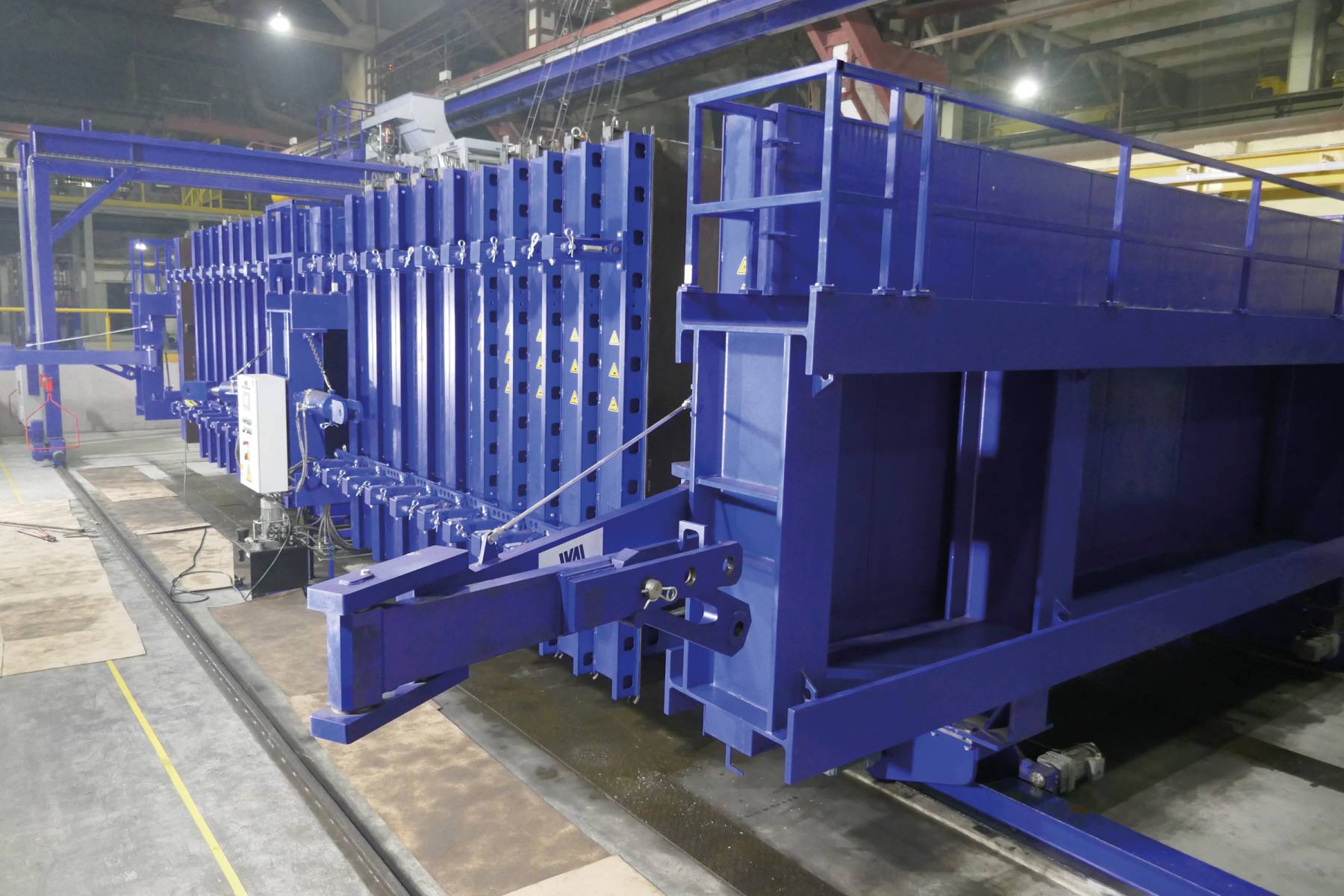

Vertical wall battery mould:
- Pockets: 7m x 3m
- 2 x 10 pockets per mould
- Electric opening and closing
- Hydraulic securing
- Hot water heating
- High frequency electric vibrators: 5n° per panel, 110n° in total
- Frequency converter
- Soffits and stop-ends for 80mm and 160mm thickness
- Height adjustment system for each pocket
- Box-outs with magnets for doors and windows for 80mm and 160mm thickness
- Full steel working platforms with access stairs and handrails

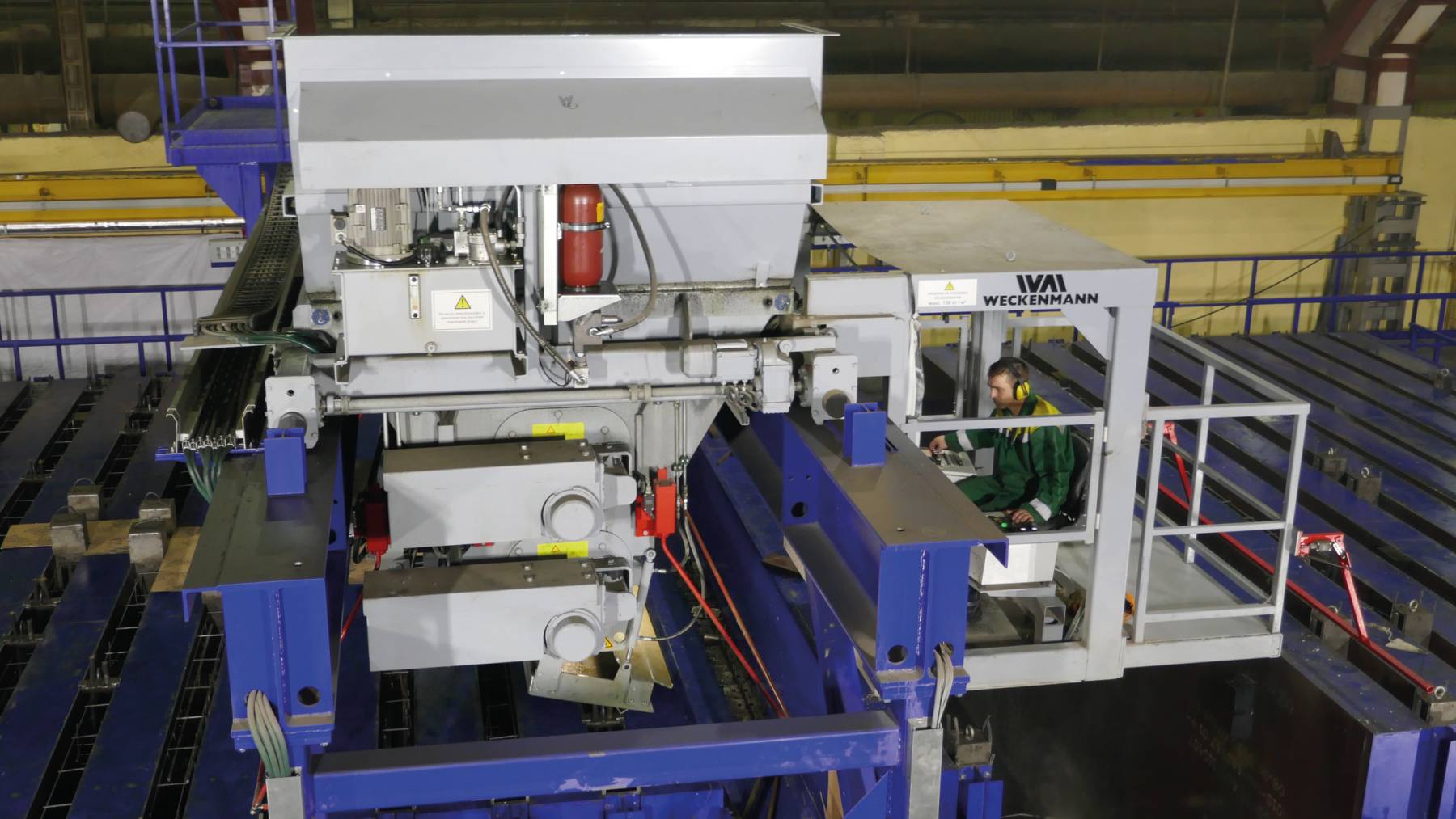

Concrete bucket with portal crane:
- Semi-automated
- Span portal crane: 12m
- Capacity bucket: 3,1m³
- Full steel control platform
