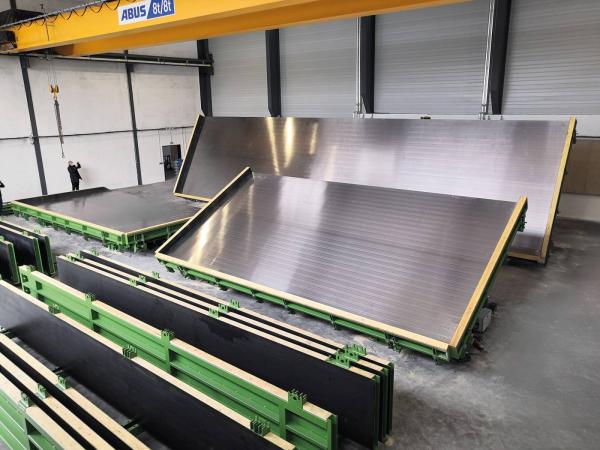

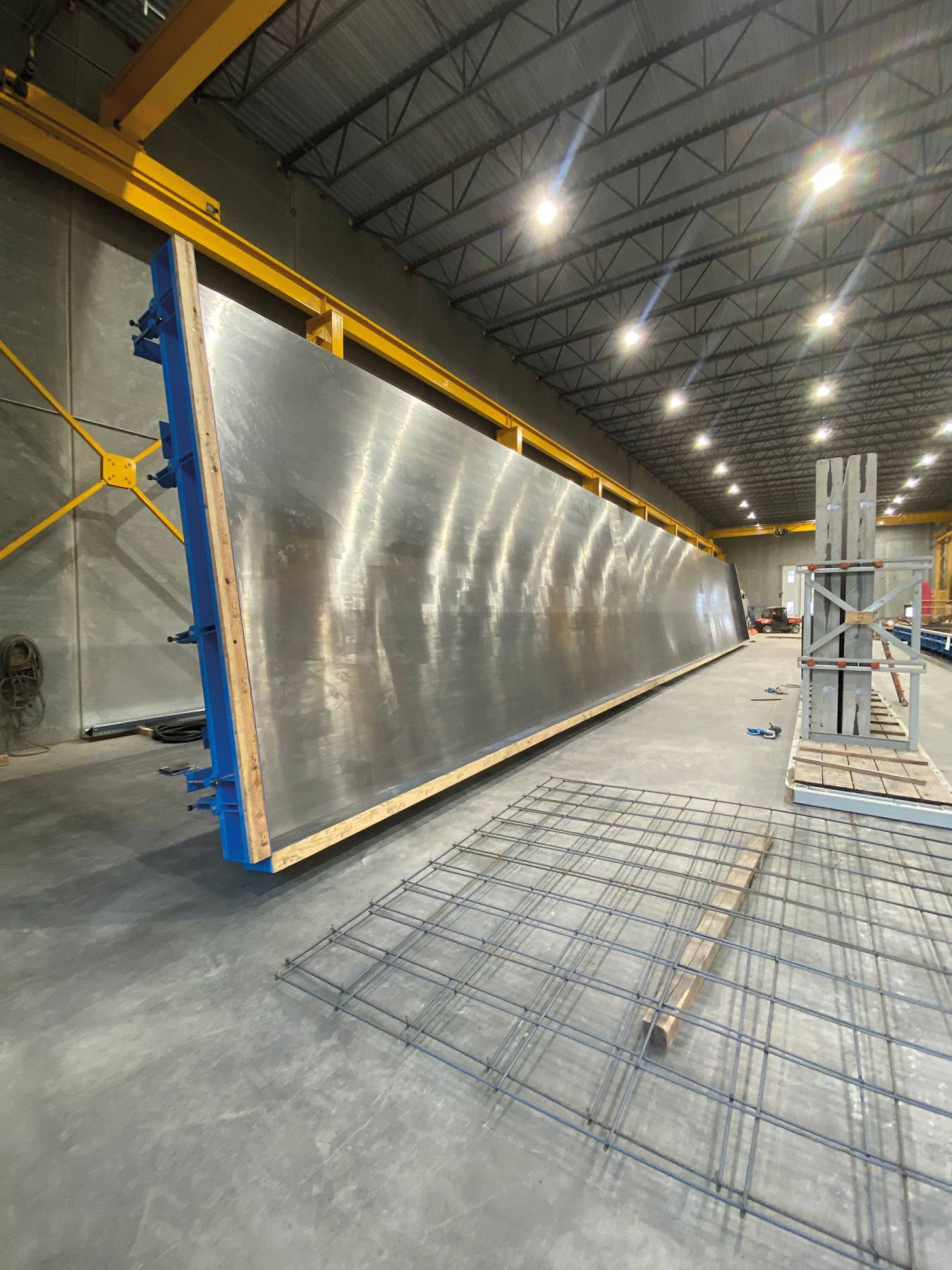

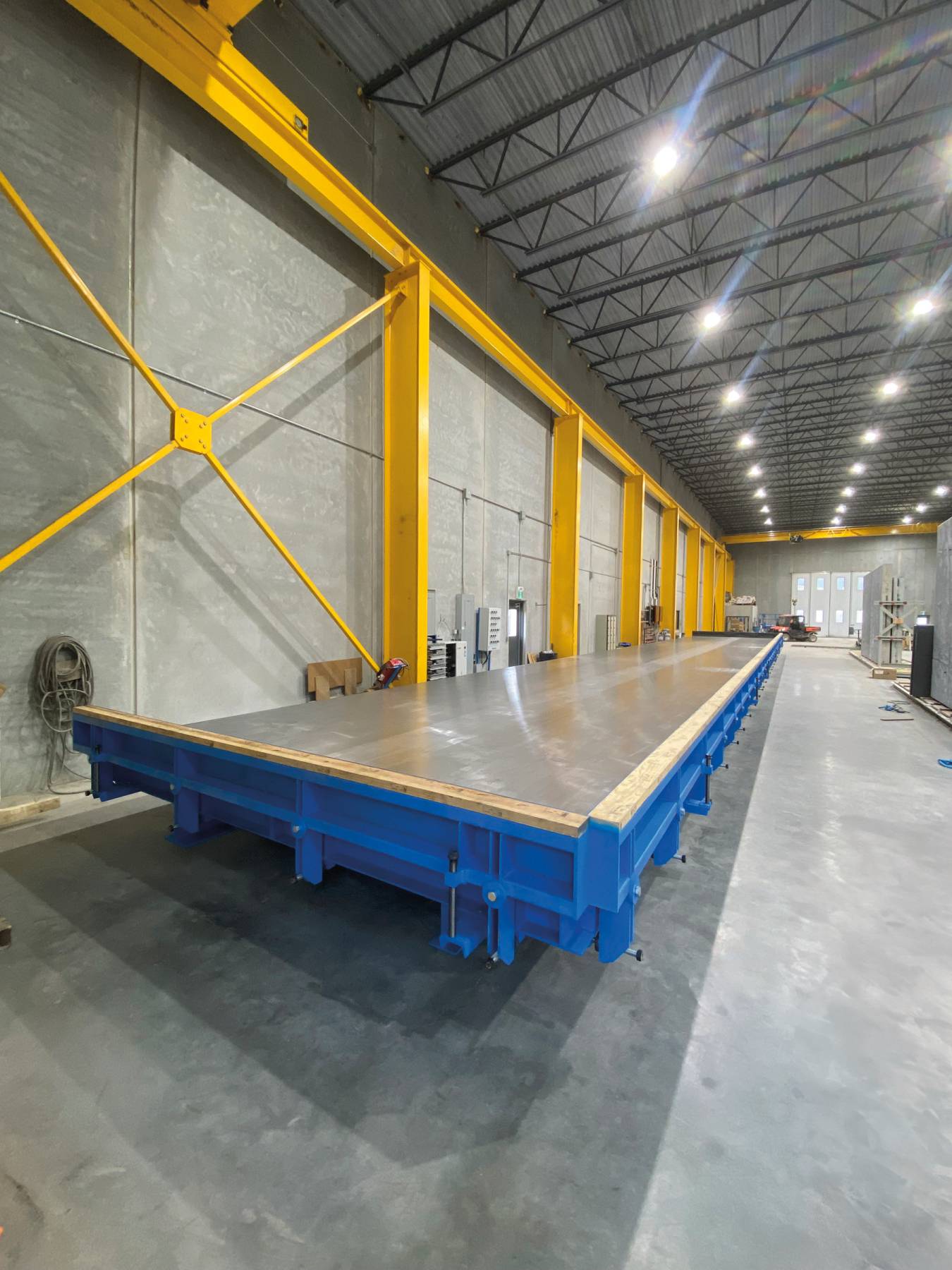

Construx-Weckenmann installs 2 XL tilting tables (28m x 4m) in a Canadian precast facility

XL tilting tables to produce fair-faced wall elements

Specifications:

• 10mm sheeting
• 28m x 4m top pallet delivered in 6 individual pallets to fit in 40’ containers

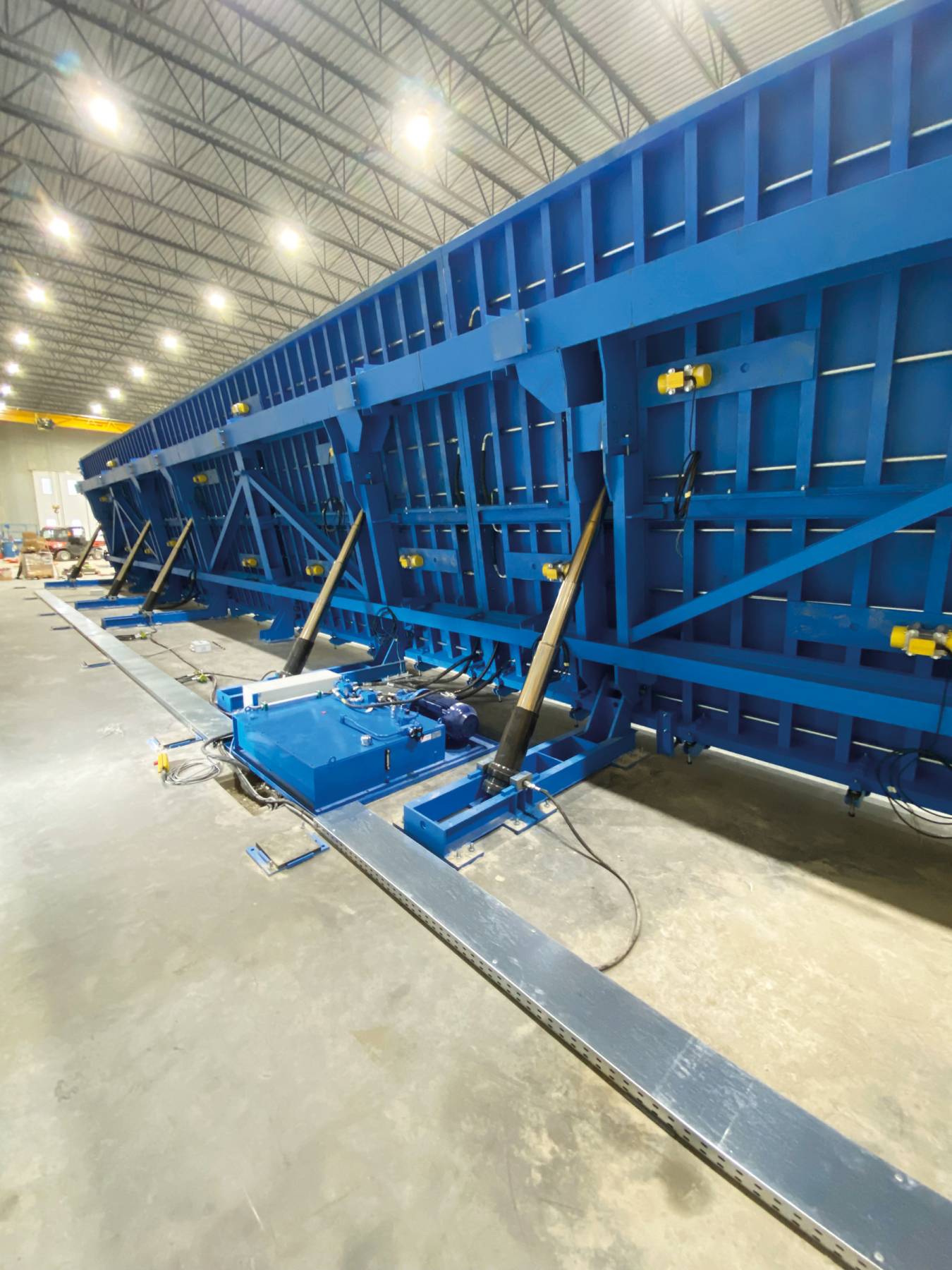

• 6 perfectly synchronized multi-stroke hydraulic rams, capacity 72T
• Stepless adjustable side-forms between 100mm – 300mm
• Sides form foreseen with wooden profile
• 20 high frequency electric vibrators pro table + frequency converter
• Heating pipes
• Welded and polished joints between the pallets
