Table forms

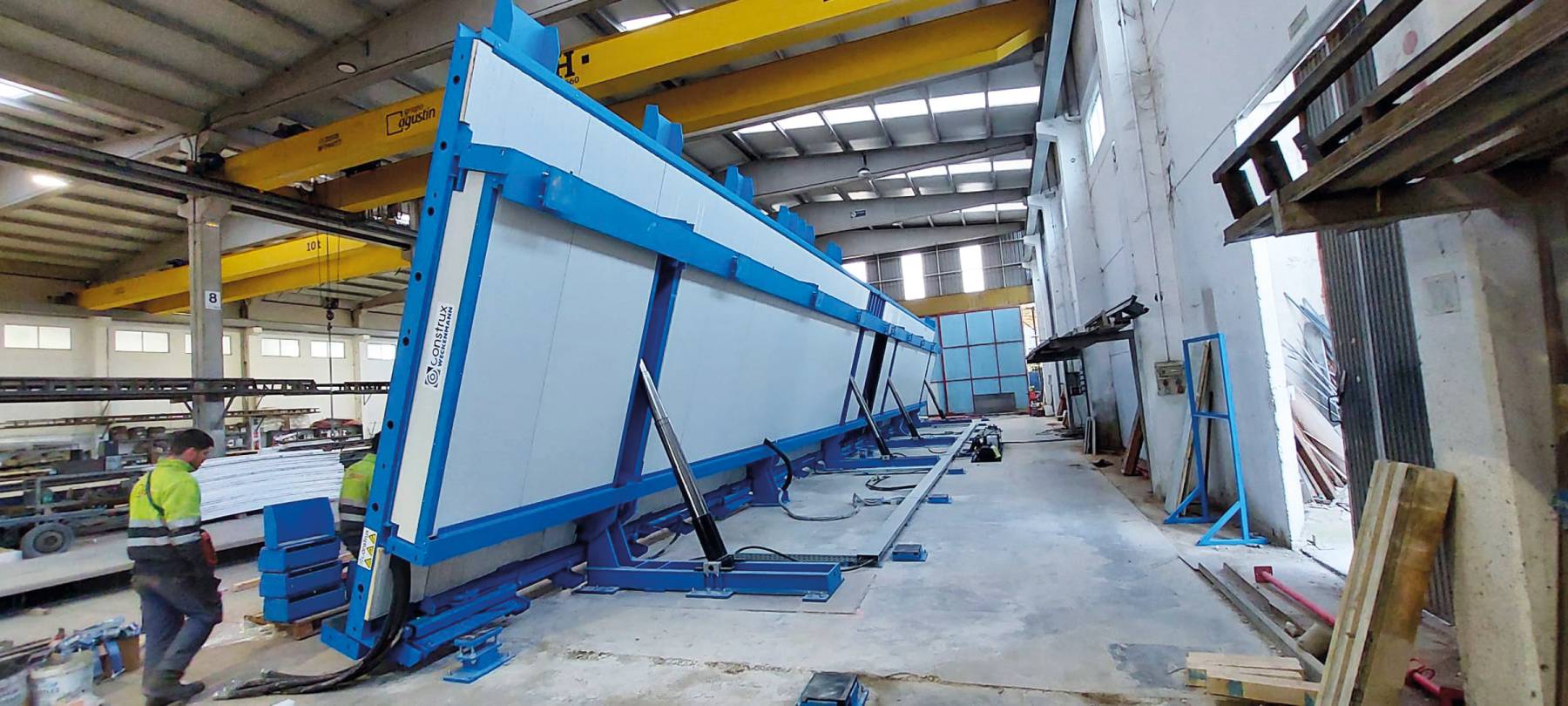

Spanish precast company invests in 2 XL tilting tables (25m x 4m)
XL tilting tables to produce fair-faced wall elements.
Specifications:
- 8mm sheeting

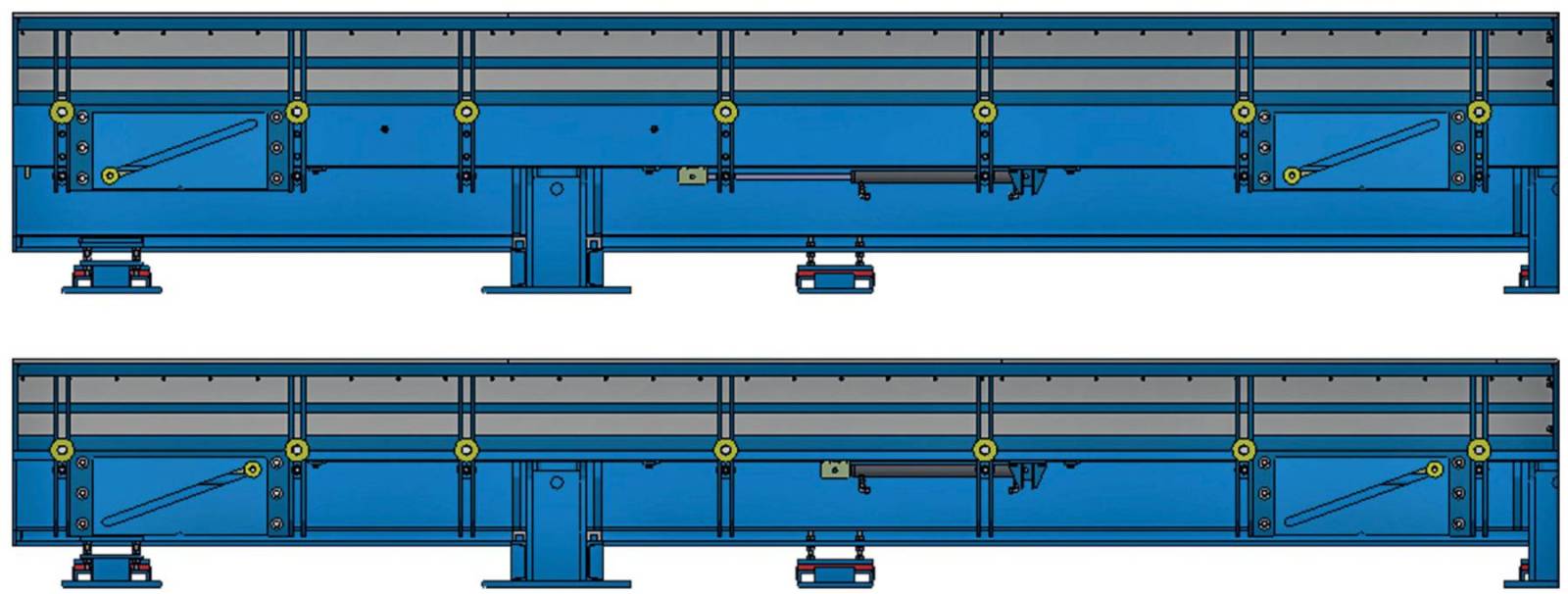

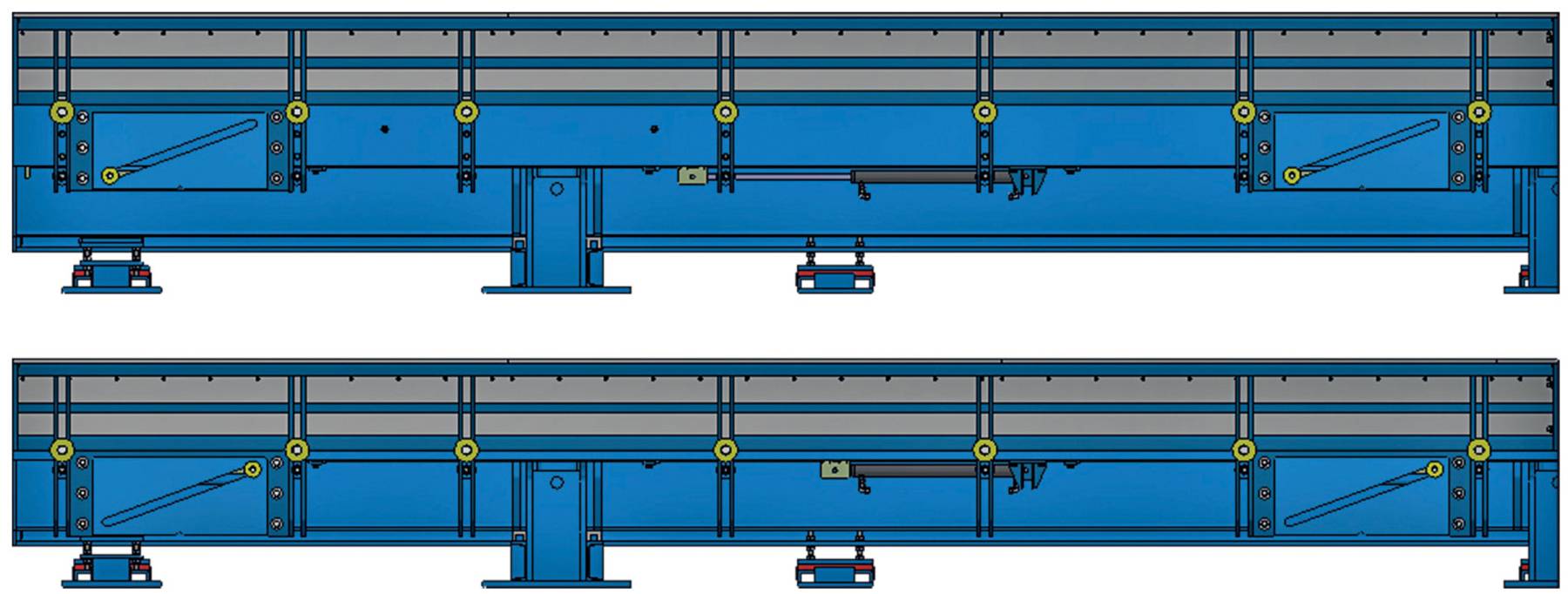

- 25m x 4m tilting table delivered in 2 individual tables 12m50 x 4m
- 4 perfectly synchronized multi-stroke hydraulic rams, capacity 50T
- 16 supports along the top of the tables

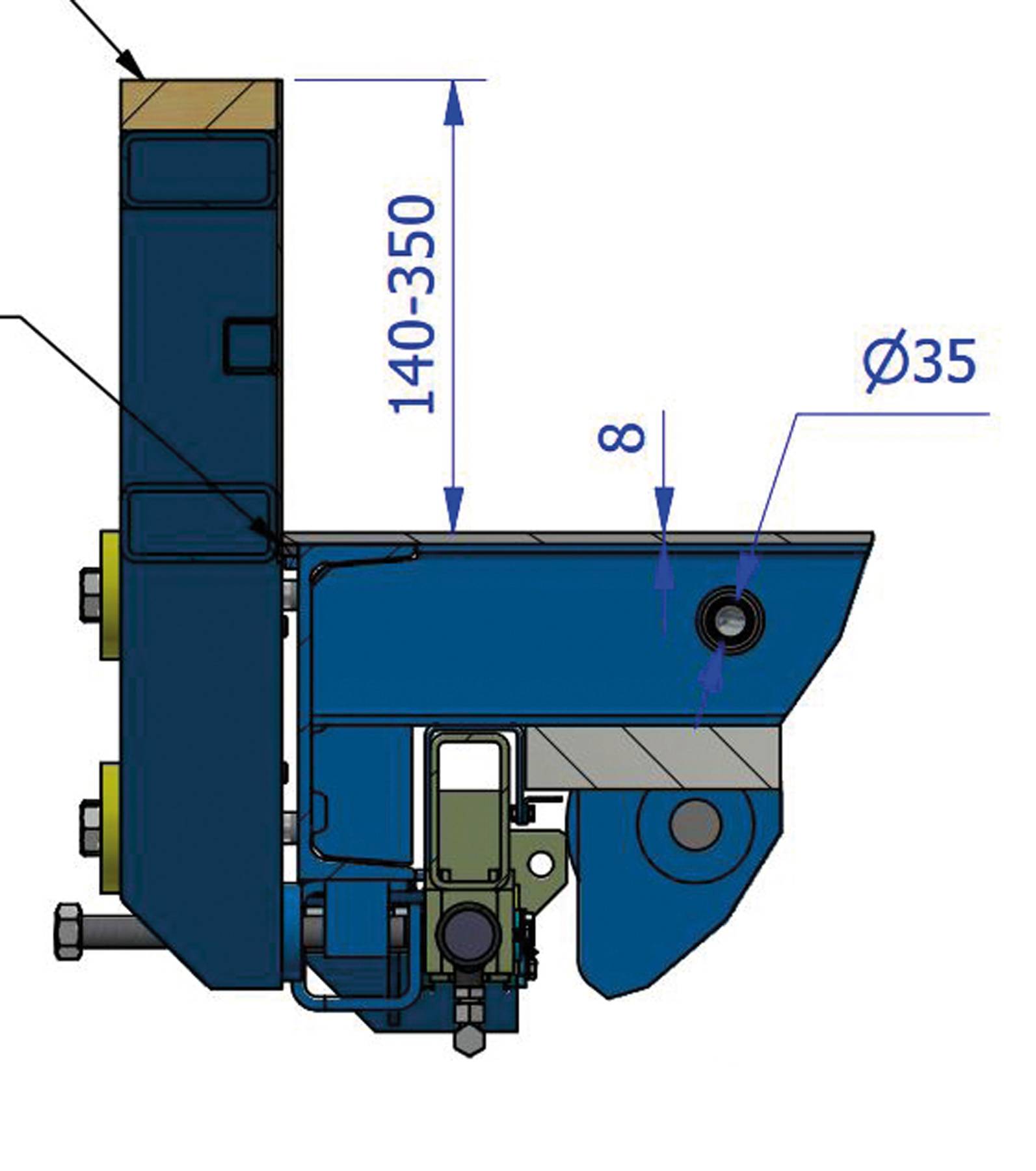

- Stepless adjustable side-forms between 140mm – 350mm
- Sides form foreseen with wooden profile
- 24 electric vibrators per table
- Heating pipes and insulation panels
- Welded and polished joint between the tables
Our latest model comes with an advanced extra feature:
Hydraulic stepless height adjustment of the sides to ensure higher accuracy and to reduce manual adjustments.
