Full option tilting tables: 6n°

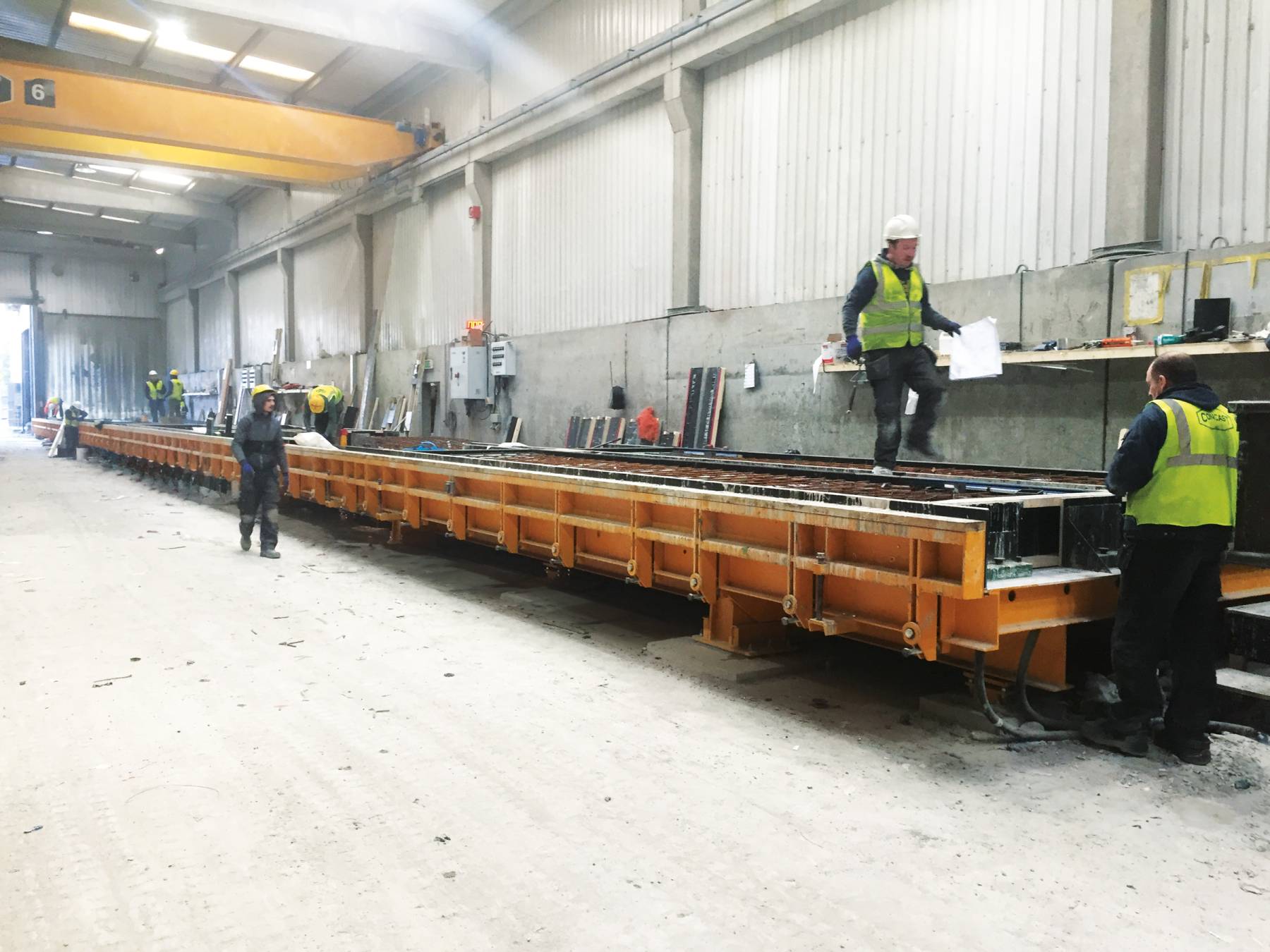

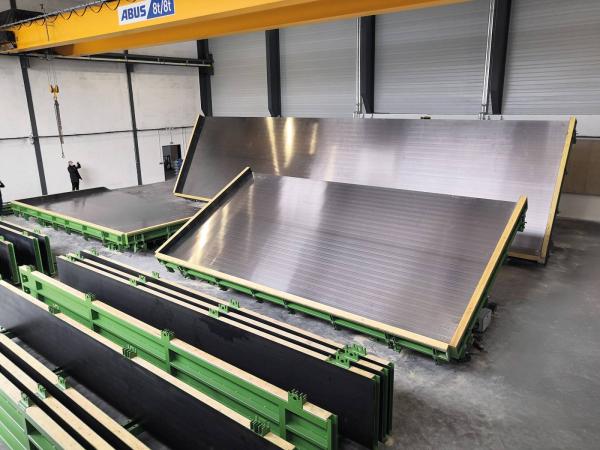

This facility is equipped with 6 fully equipped hydraulic tilting tables, each measuring 16m x 4,5m, designed for precision and efficiency in precast concrete production.

Key Features:

• Table dimensions: 16m x 4,5m
• Seamless steel surface: 10mm thick single steel plate, free from welds or joints for superior finish quality
• Adjustable side forms: Fully adjustable on three sides, ranging from 100mm to 300mm

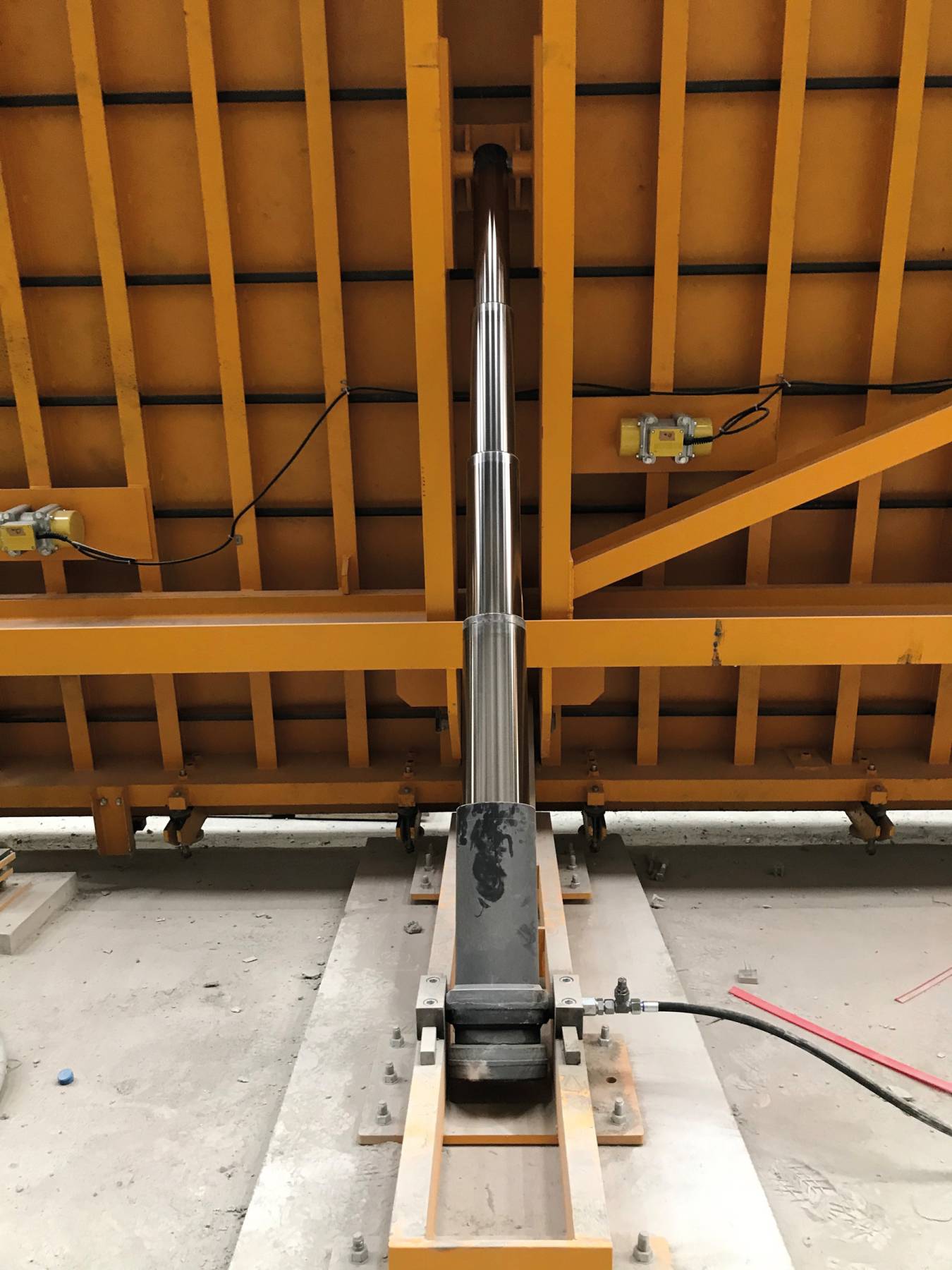

• Advanced vibration control: Integrated shock absorbers between the tilting frame and top structure to minimize vibrations going into the chassis
• High-frequency vibrators: Strategically positioned to ensure complete coverage of each transverse profile of the top structure

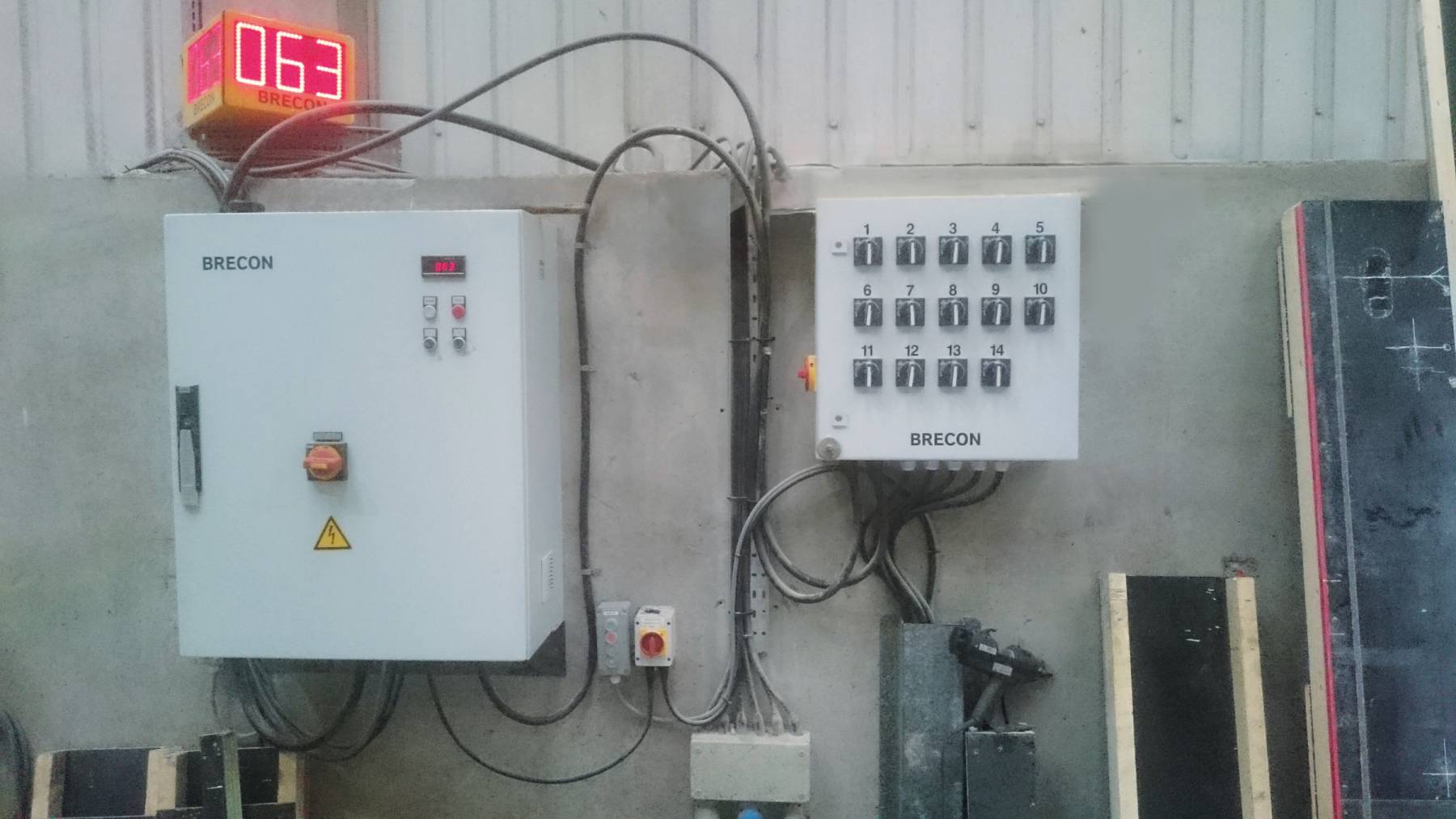

• Vibration control system: Equipped with a control cabinet featuring a frequency inverter, remote control, and an LED display for precise operation
• Integrated heating system: Heating pipes incorporated to optimize curing conditions
