Flexbox

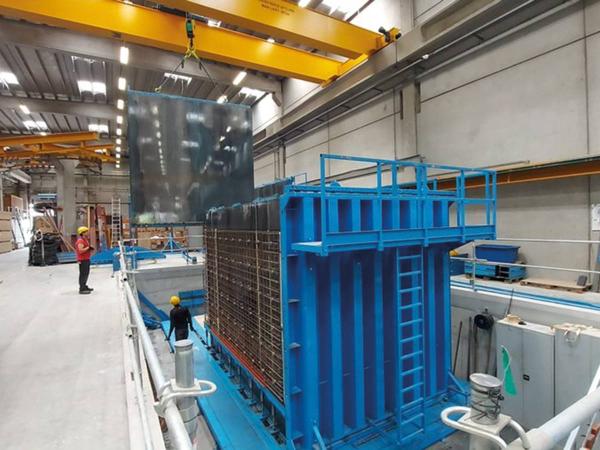

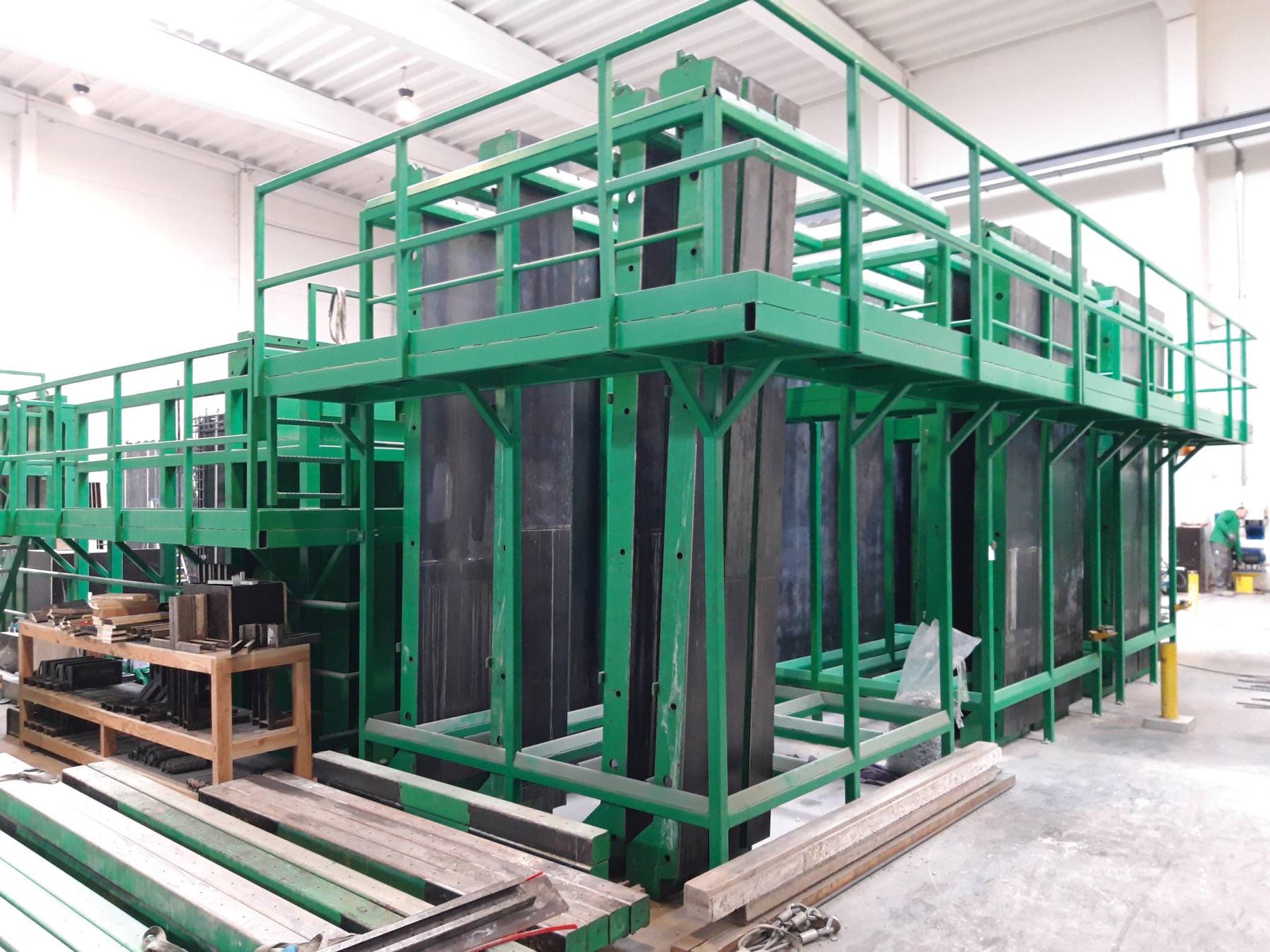

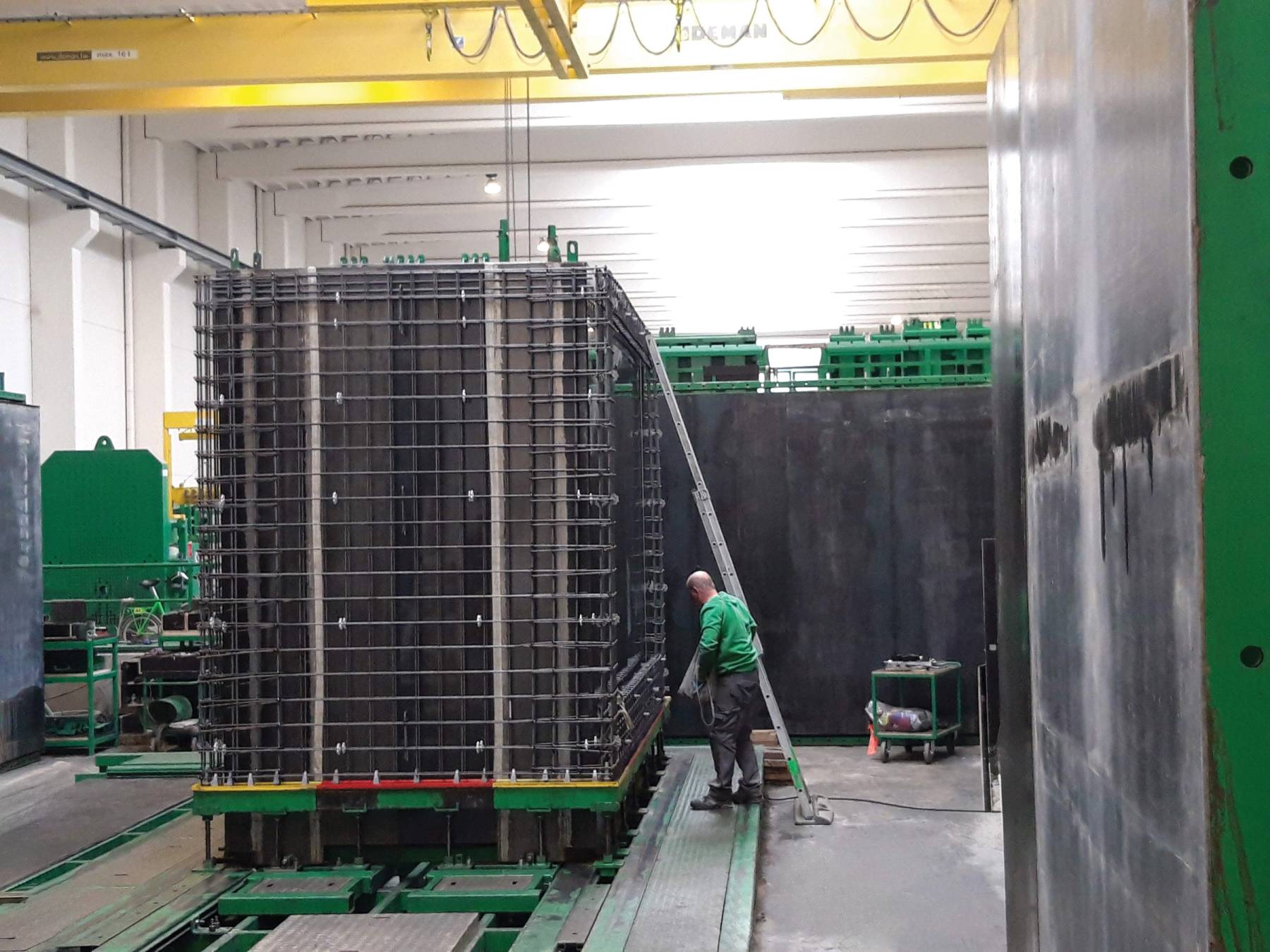

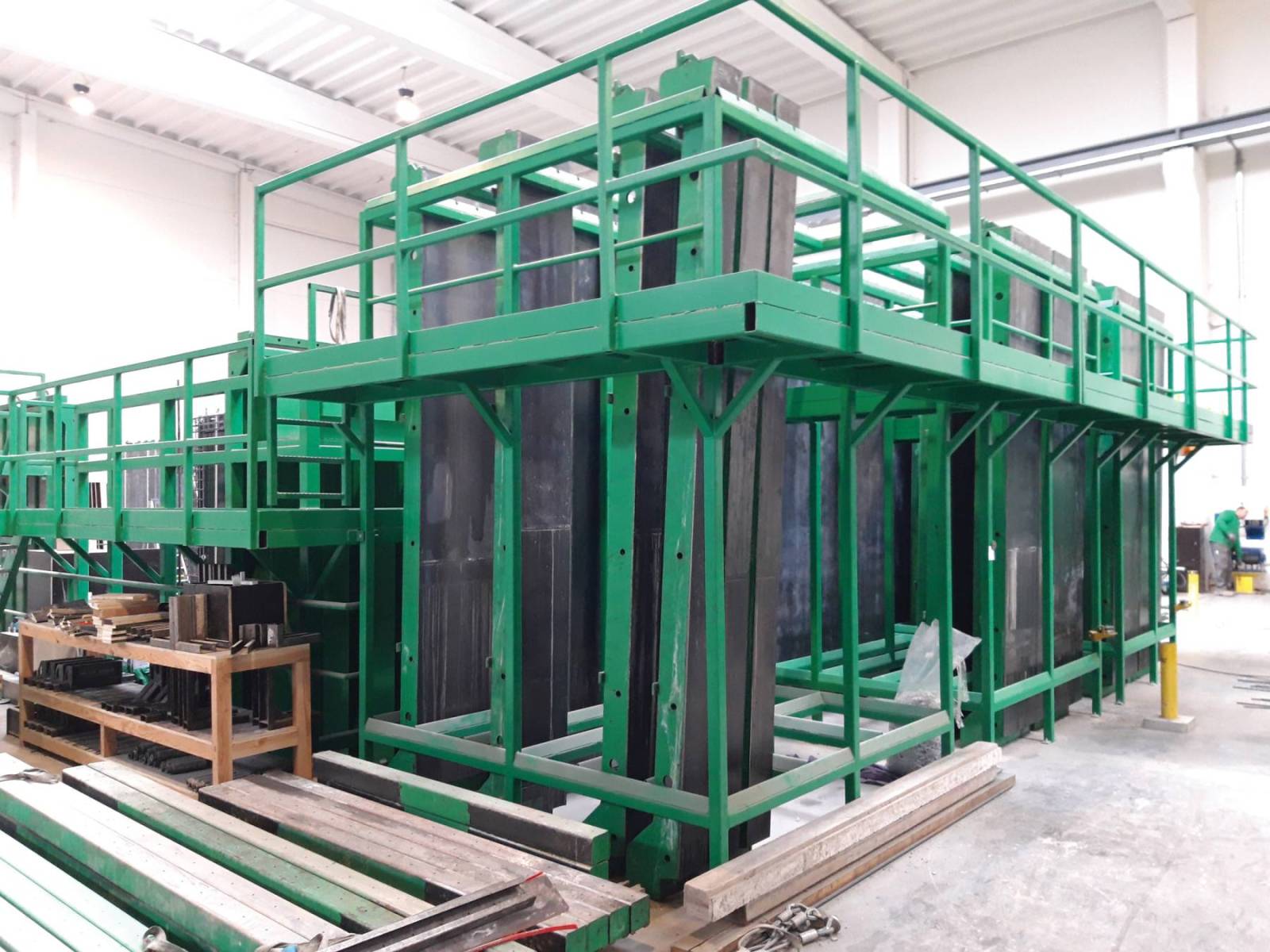

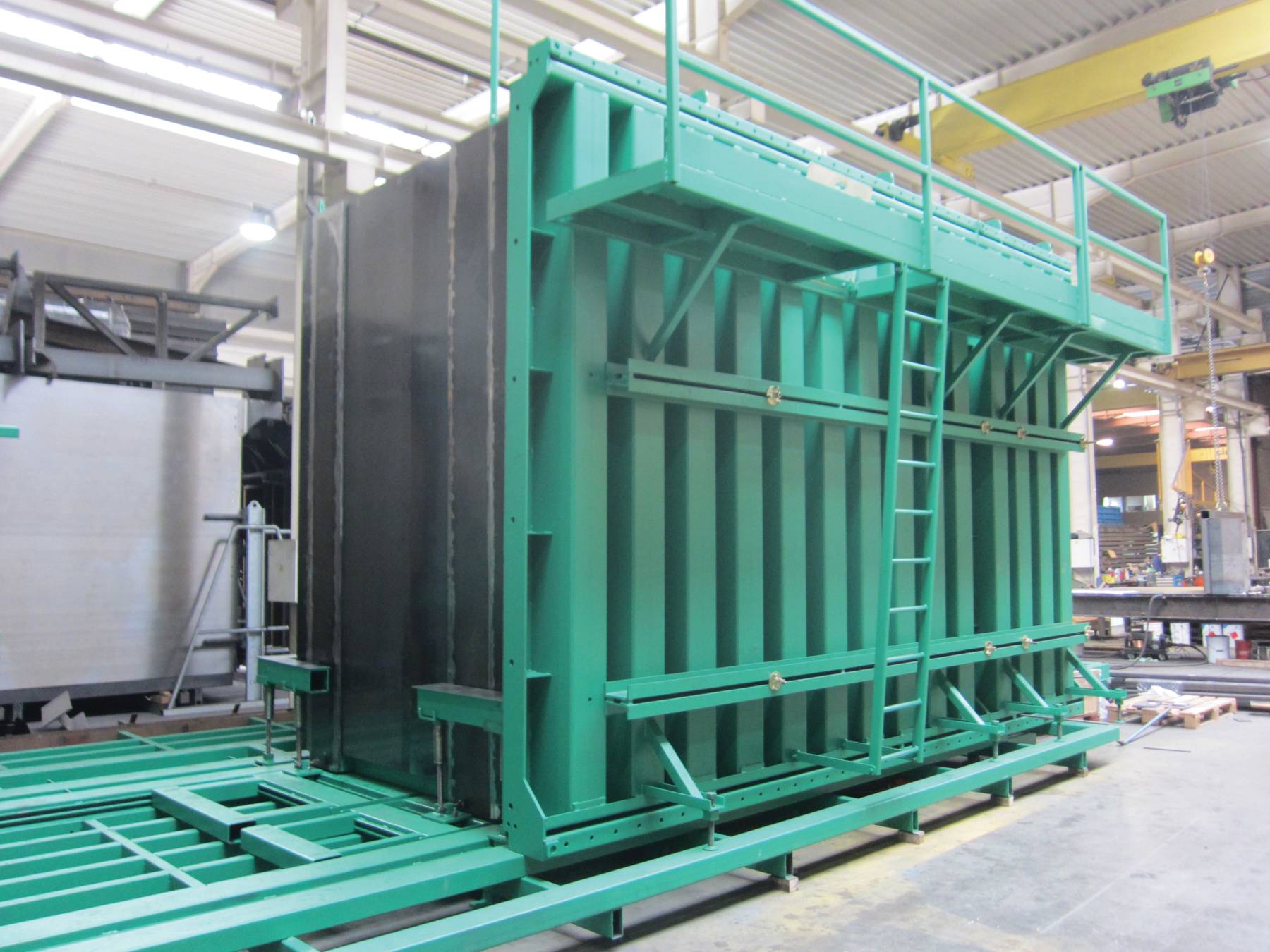

Flexbox mould for lift shafts, stair cores and culverts
Due to the detachable corner chamfers and extra shrinkable corners, this Flexbox mould is suitable to make single and double lift shafts, stair cores as well as culvert sections for silos.
Technical specifications:
- Maximum outside dimensions: L 7500mm x W 4000mm x H 3300mm
- Minimum inside dimensions: L 1200mm x W 1200mm x H 1300mm
- Straight 90° as well as chamfered corners
- Inner core with 100mm increments

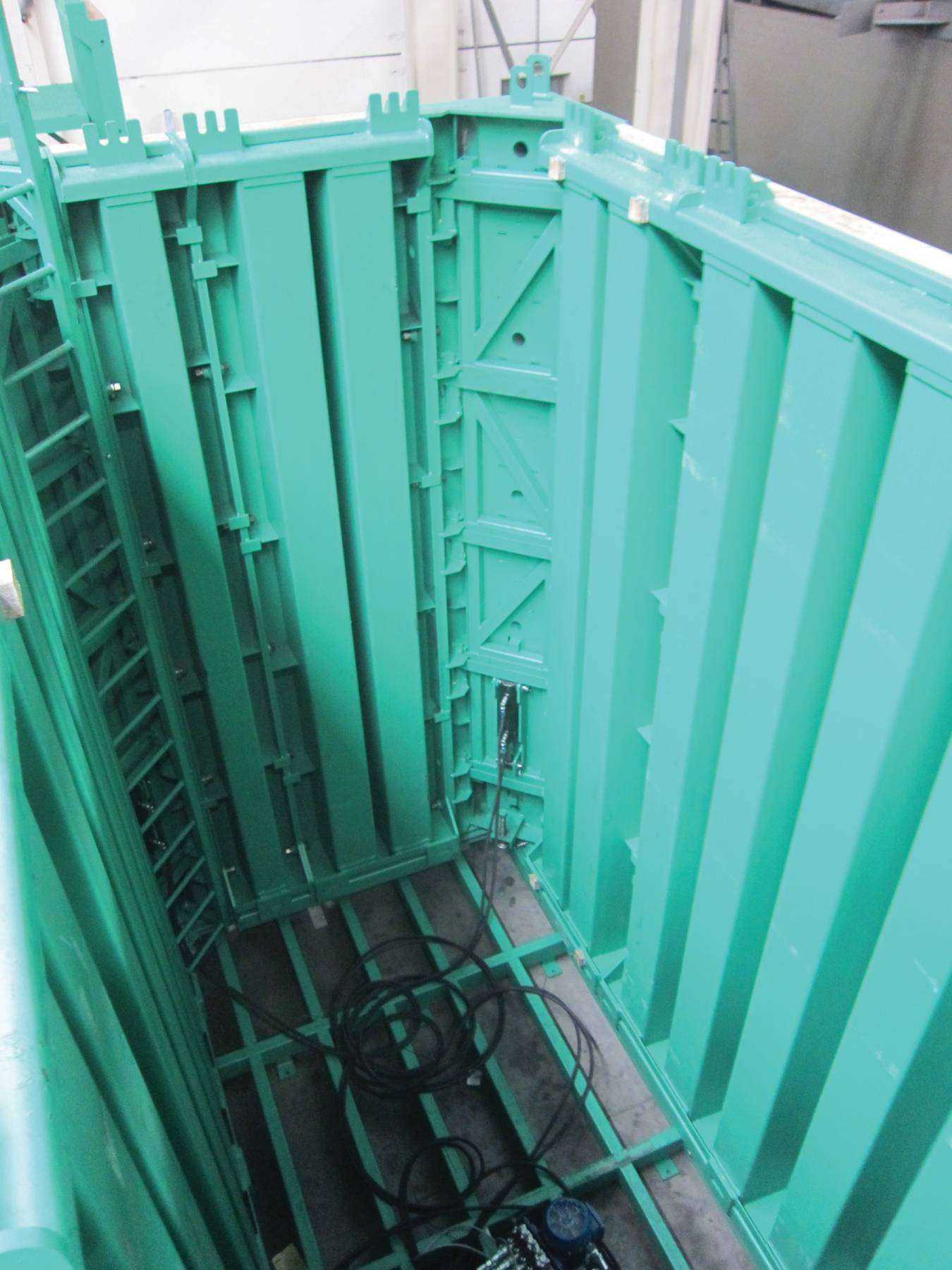

- Demoulding inside mould by means of 4 hydraulically shrinkable corners
- Outside panels in a hit-and-miss configuration
- Base adjustable in height from 1300mm up to 3300mm
- Steel base with timber infills
- Detachable 150mm x 150mm chamfers
- Extra set of 4 hydraulically shrinkable corners to make double shafts
