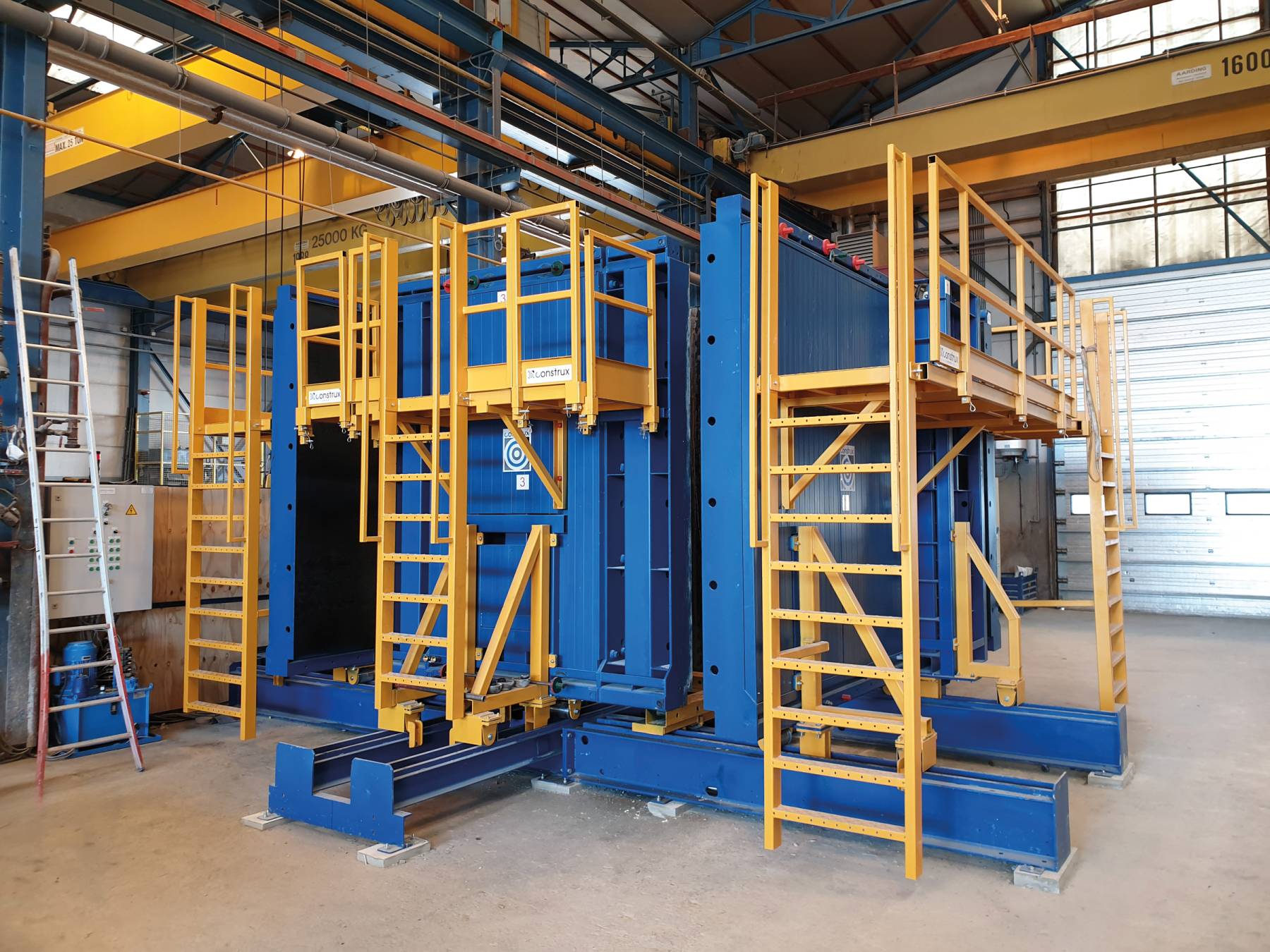

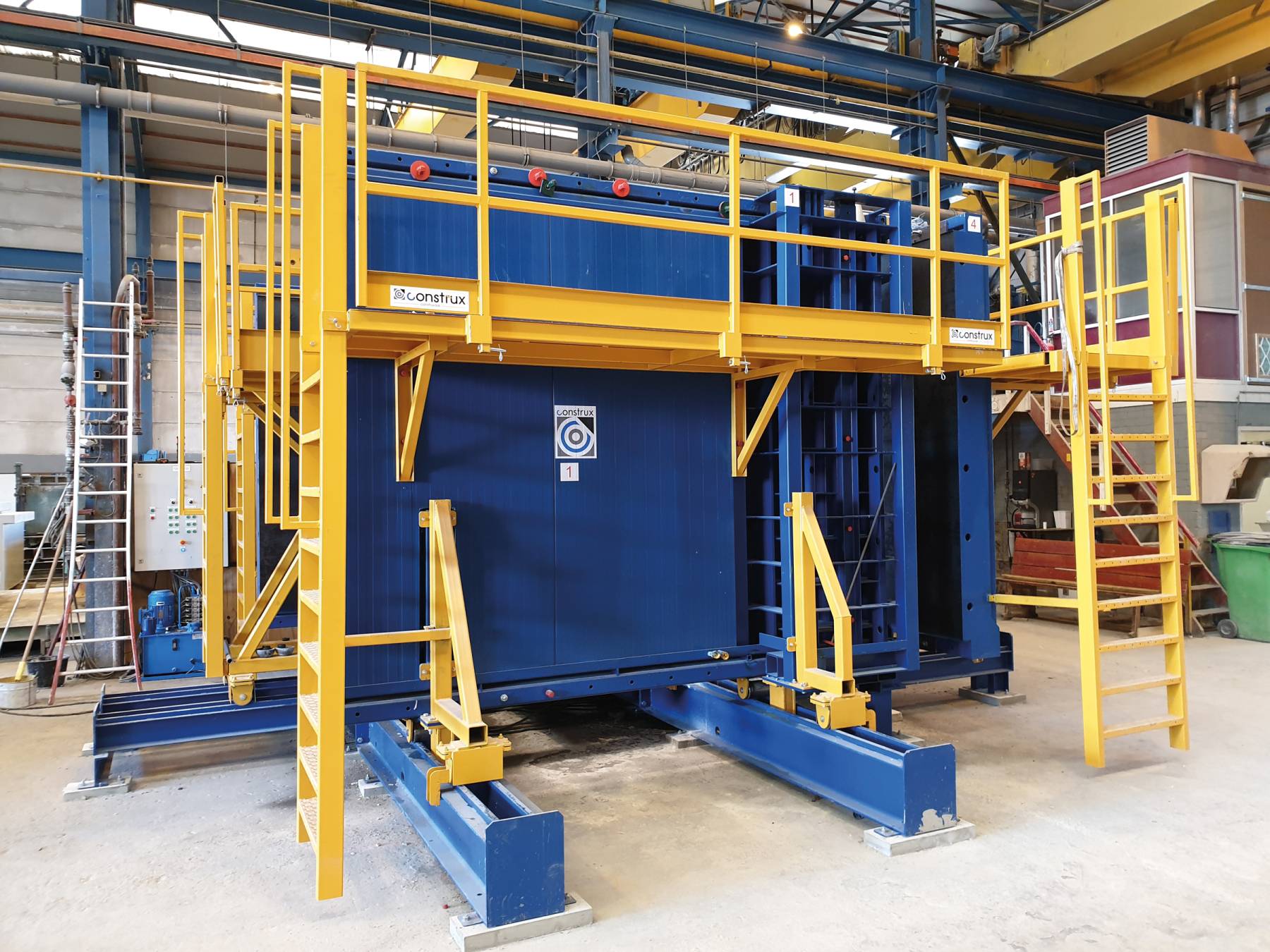

Hydraulically operated adjustable culvert mould

This culvert mould is adjustable in length, width and height and is fully hydraulically operated.

Specifications:

• Minimum size 1000mm x 1000mm
• Maximum size 2500mm x 3000mm
• Size adjustable with 250mm increments
• Height up to 2650mm, steplessly adjustable
• Wall thickness 250mm
• Hydraulic opening outside mould
• Hydraulic shrinking inside mould
• Hydraulic securing inside panels

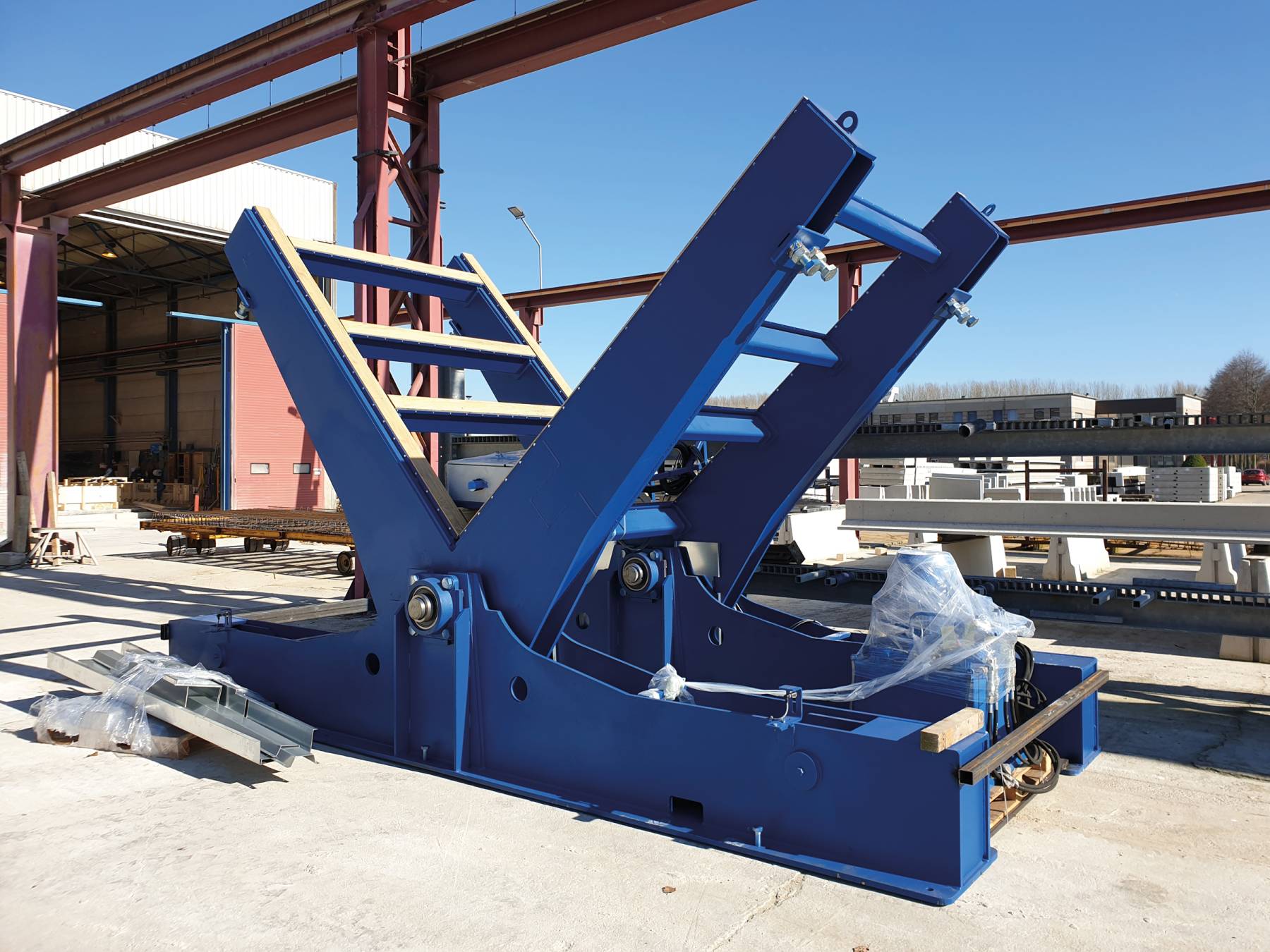

• Tilting station 90°, max. load 25T
