Moulds for manholes

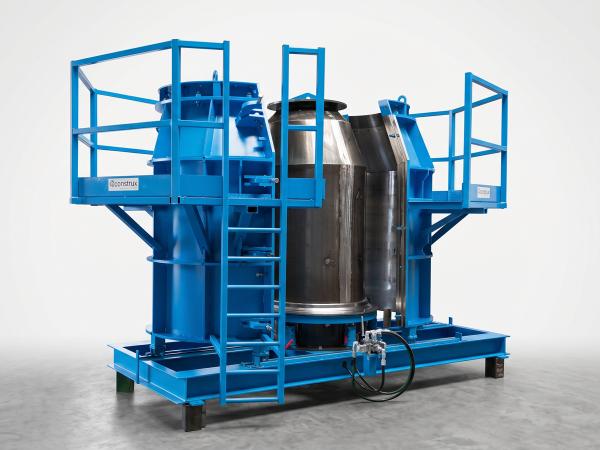

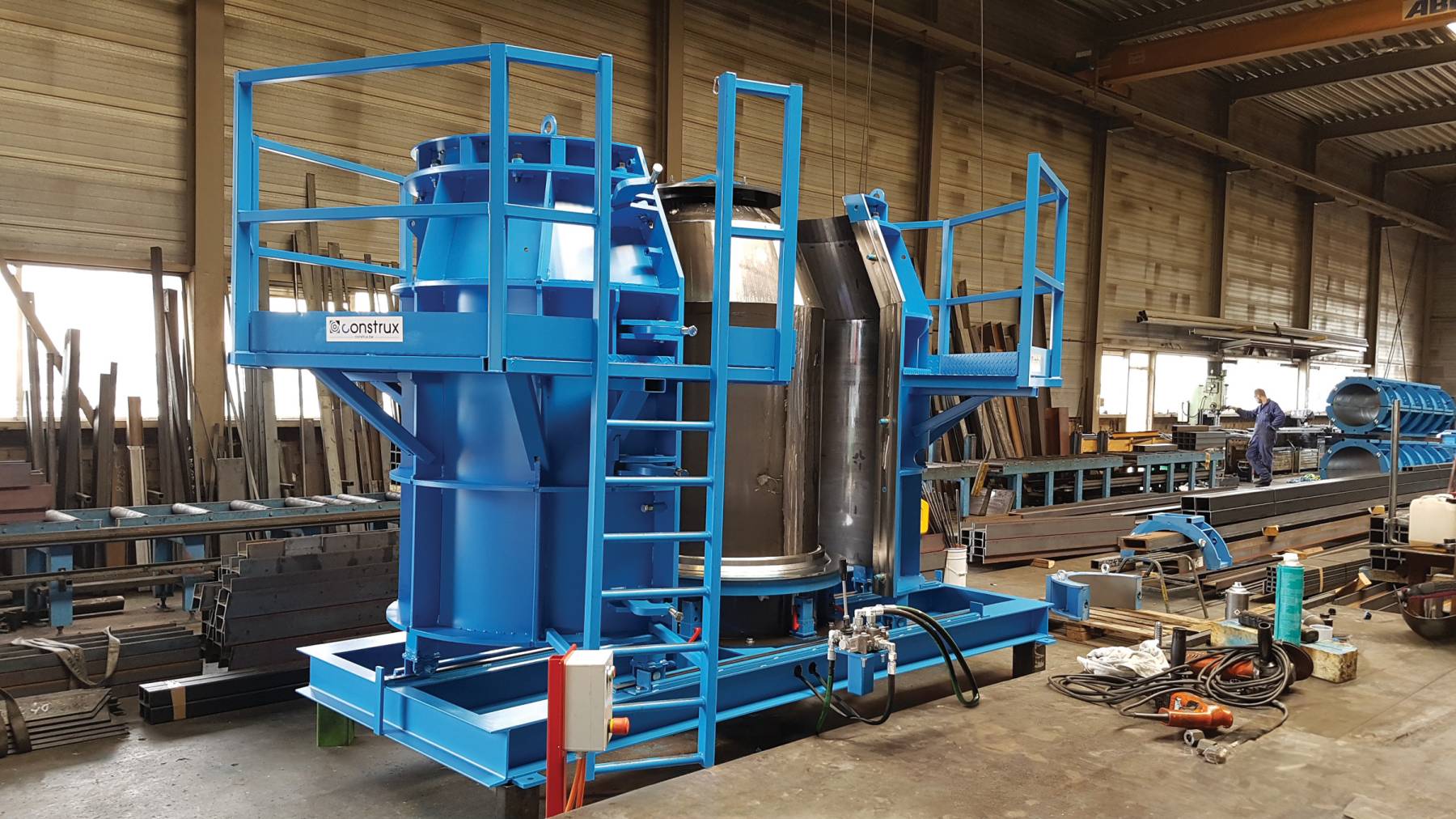

Mould for conical manholes

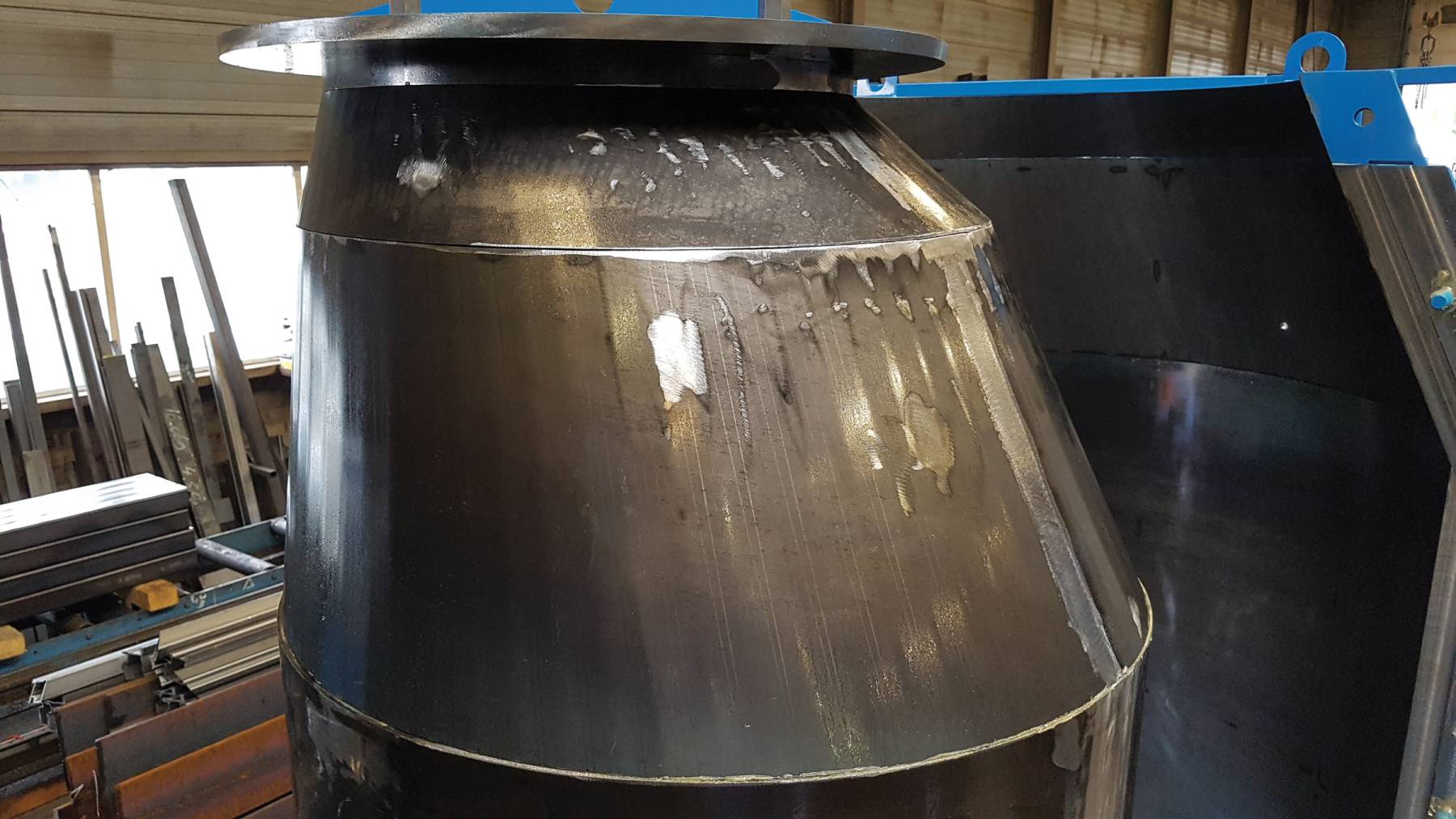

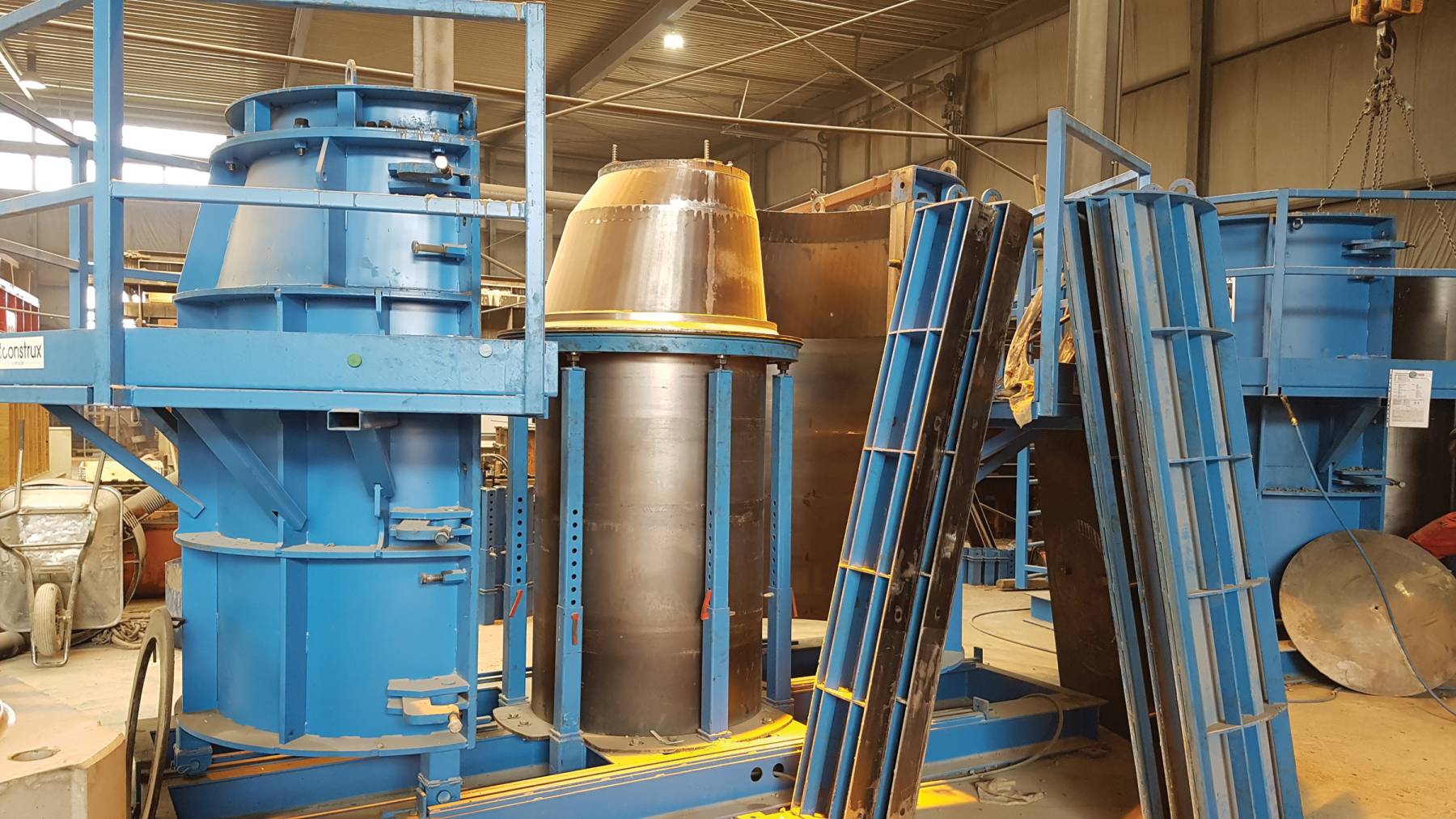

The inside mould has 1 straight part and 2 conical parts.
The division between the conical parts is 1/3 and 2/3. The straight part is hydraulically shrinkable and both conical parts have a different form.
Specifications:
- Height outside mould 2000mm
- Height shrinkable round inside mould 1400mm
- Height fixed conical inside mould 600mm
- Wall thickness 150mm
- Internal diameter round mould 1000mm
- Internal diameter conical mould 625mm or 800mm
- Outside diameter round mould 1300mm
