Moulds for Monobases and Vaults

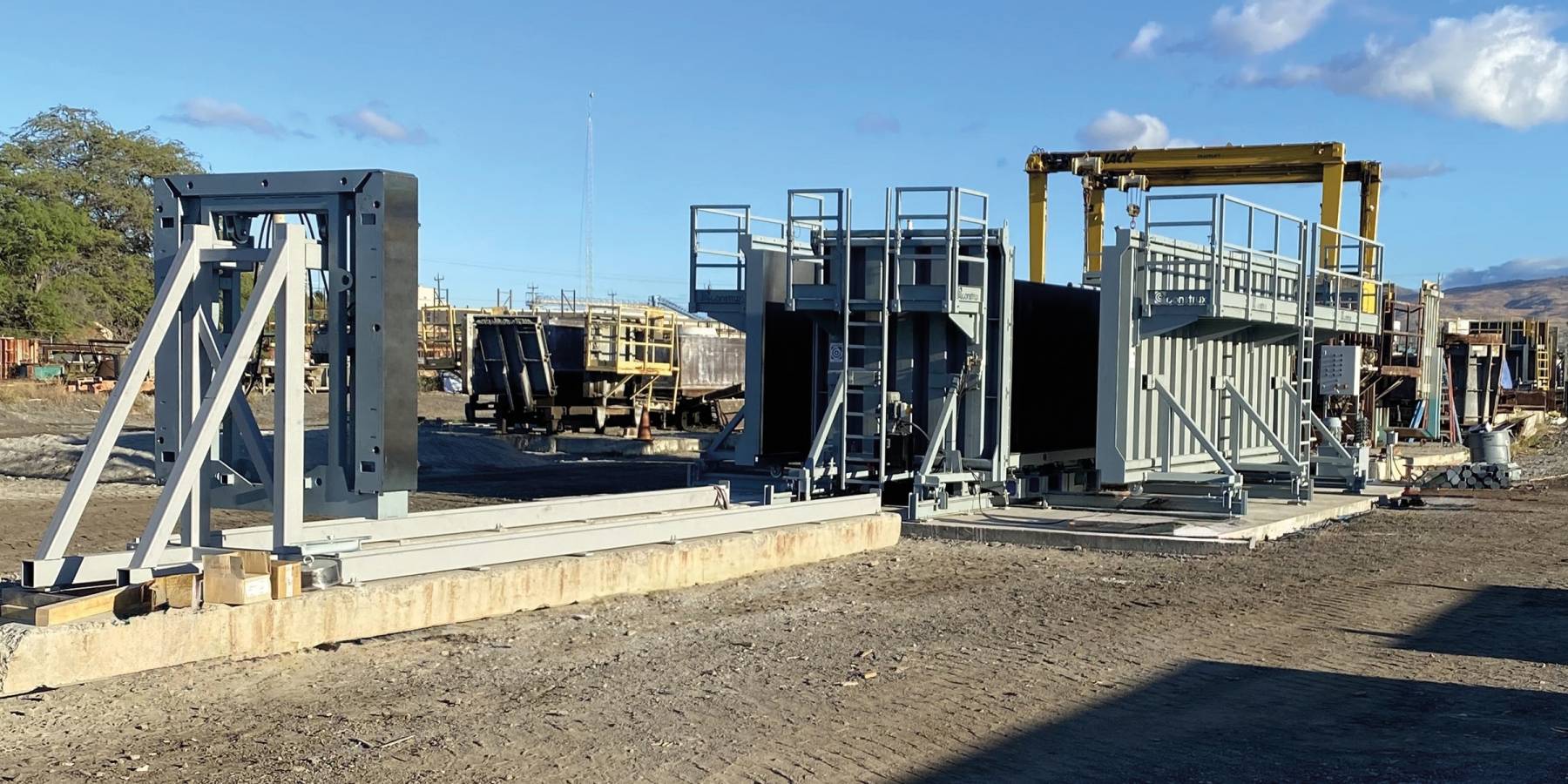

Fully automated monobase mould

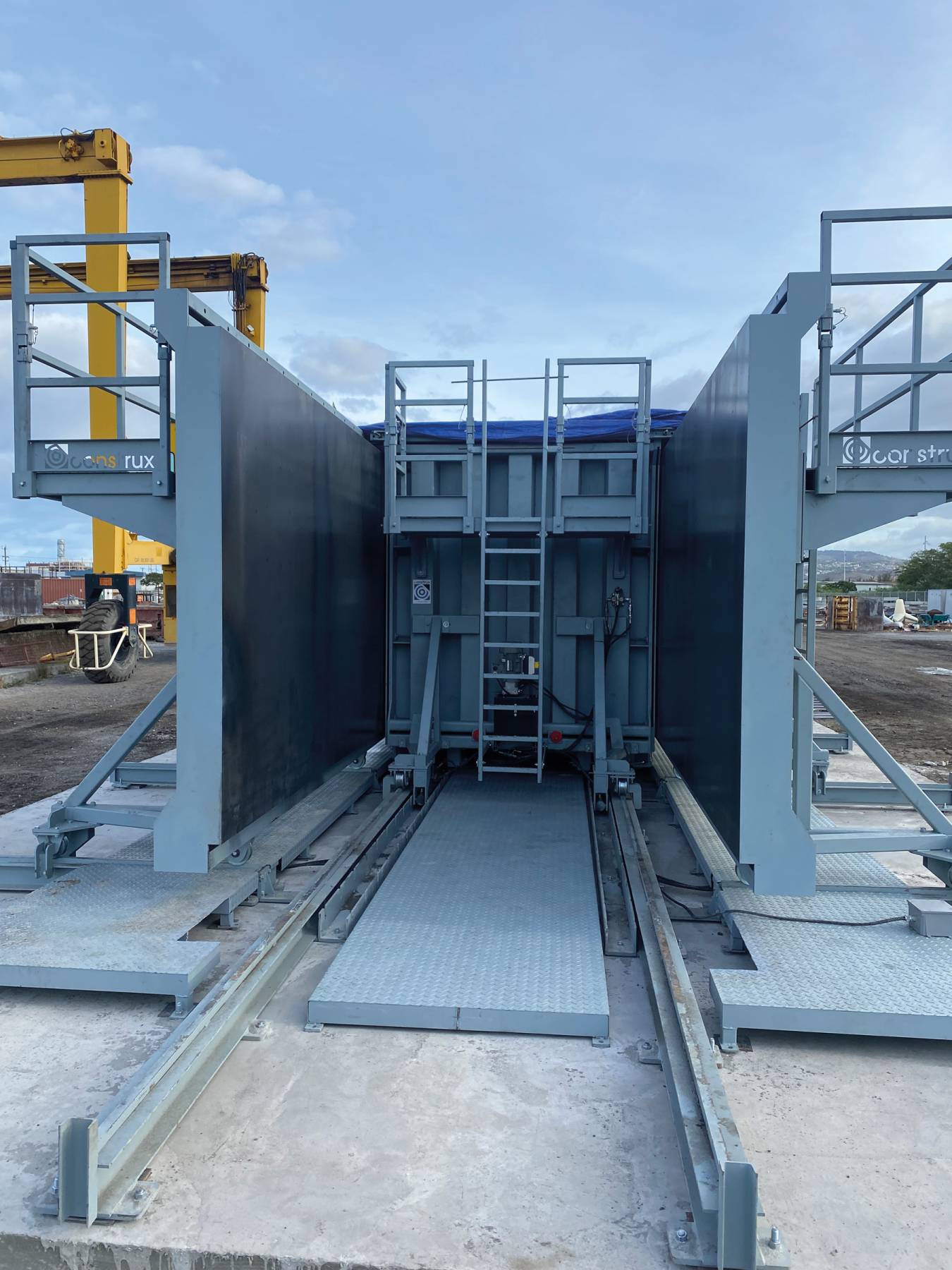

The mould provided by Weckenmann is stateof-the-art, hydraulically operated and equipped with all required safety features.

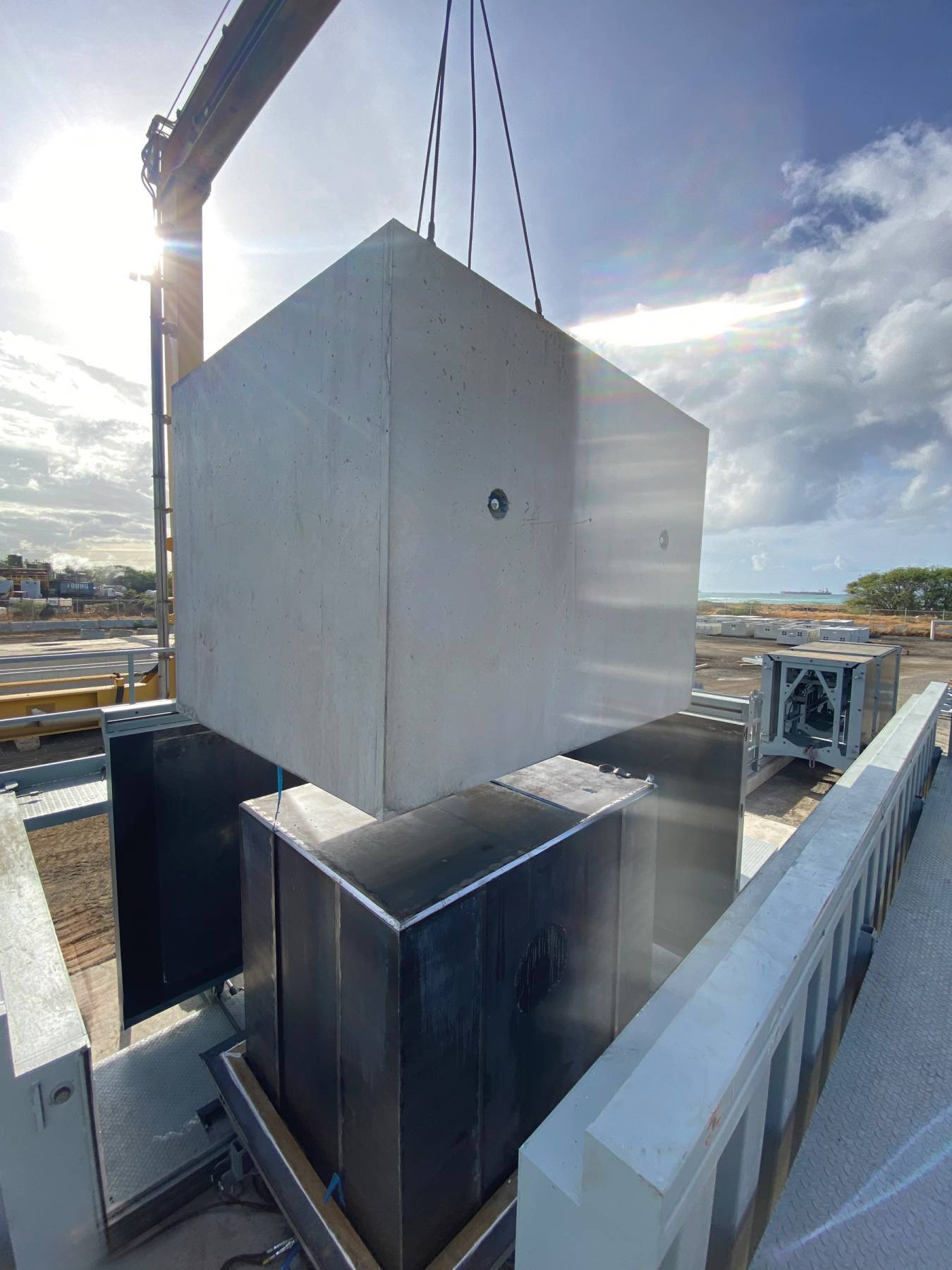

The mould is an adjustable and flexible solution for the full range of the customers’ mono-box elements, and allows for a monolithic cast: walls and base slab at the same time.
The system is suitable to make mono-boxes which come with a fixed width and different lengths, forming a minimum size box of 6’ x 6’ and a maximum size of 6’ x 20’:
- Inside width: 6’
- Inside length: 6’ to 20’ in steps of 1’
- Wall thickness: 8”, 10” and 12”

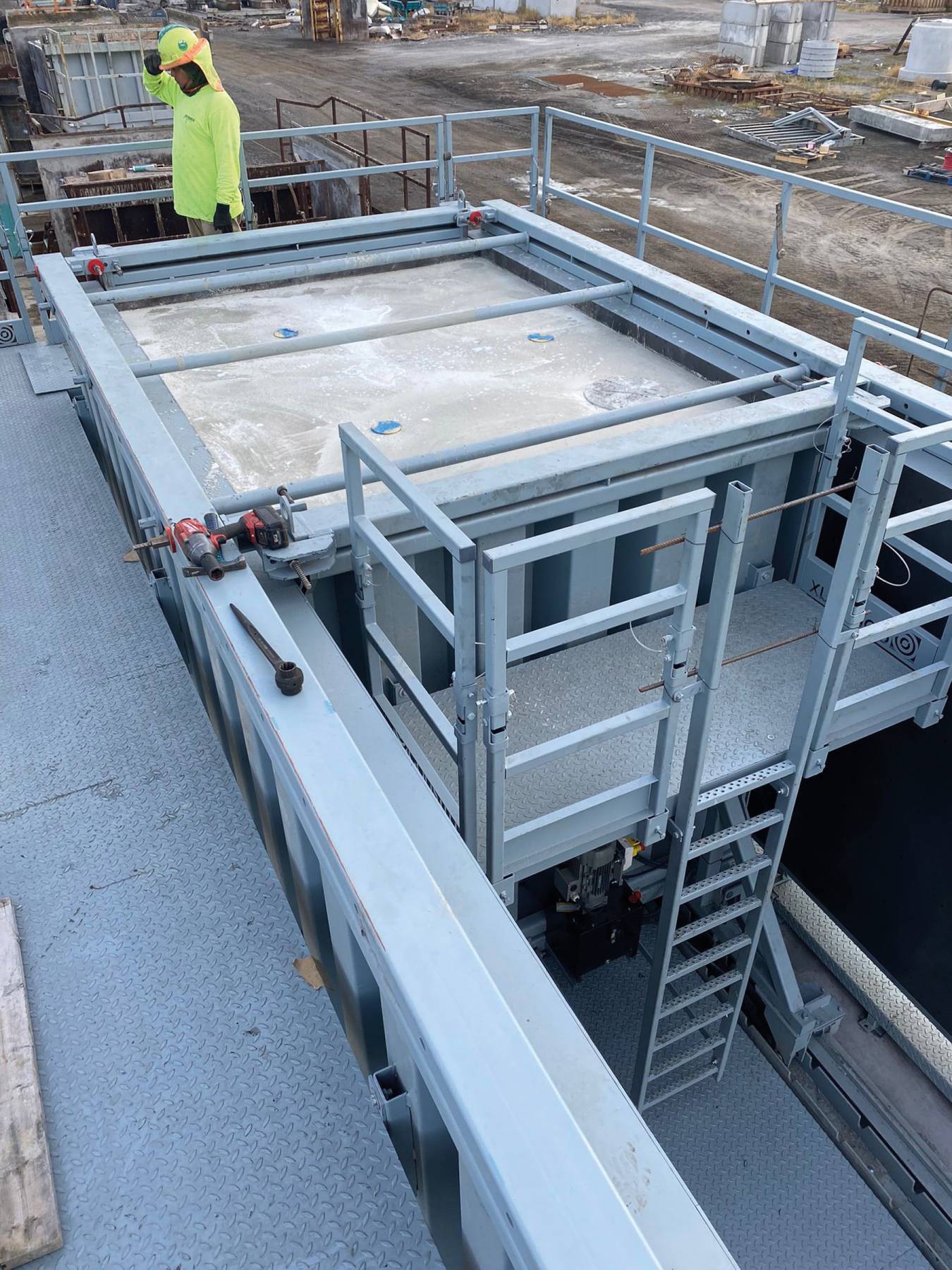

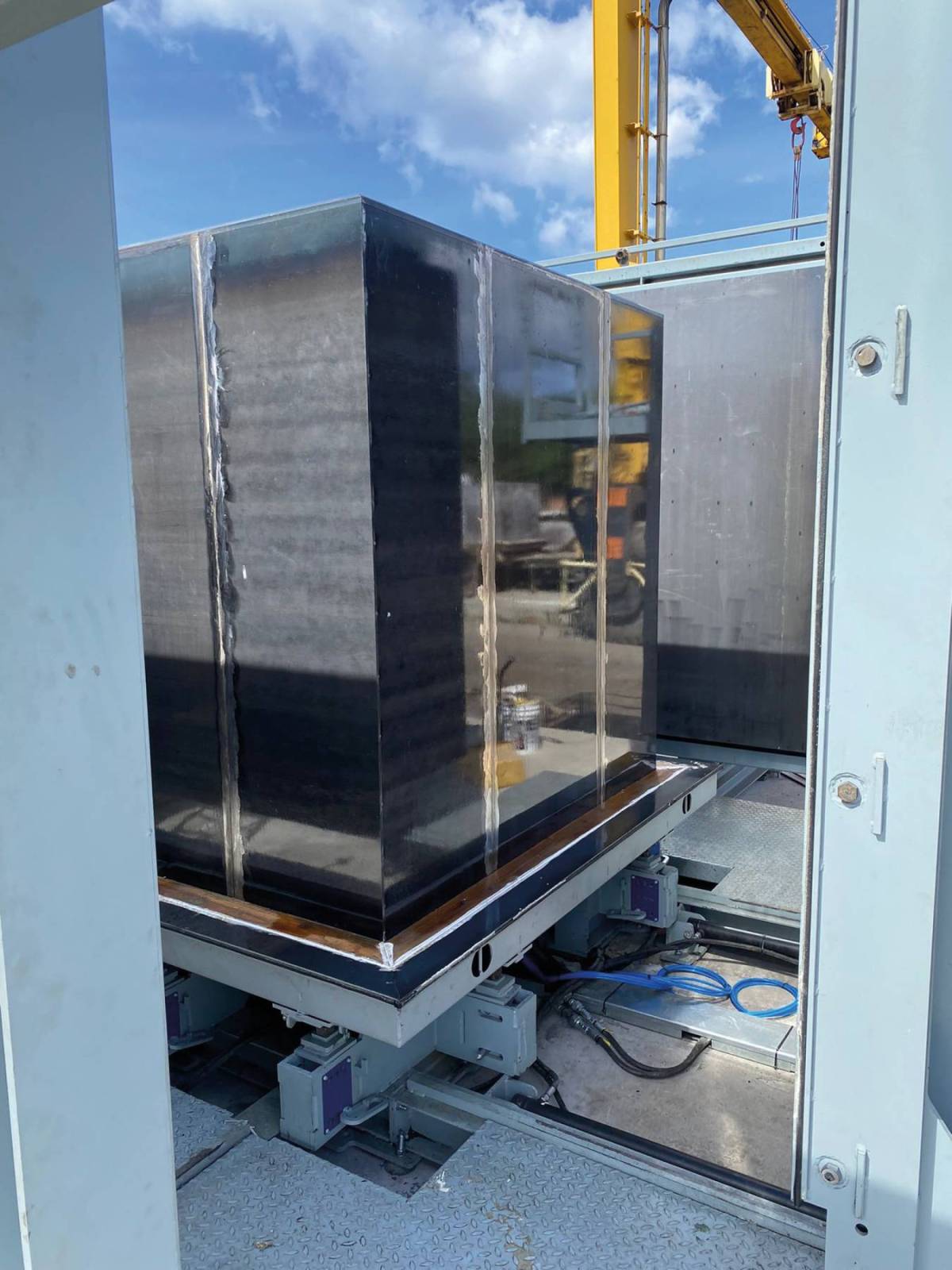

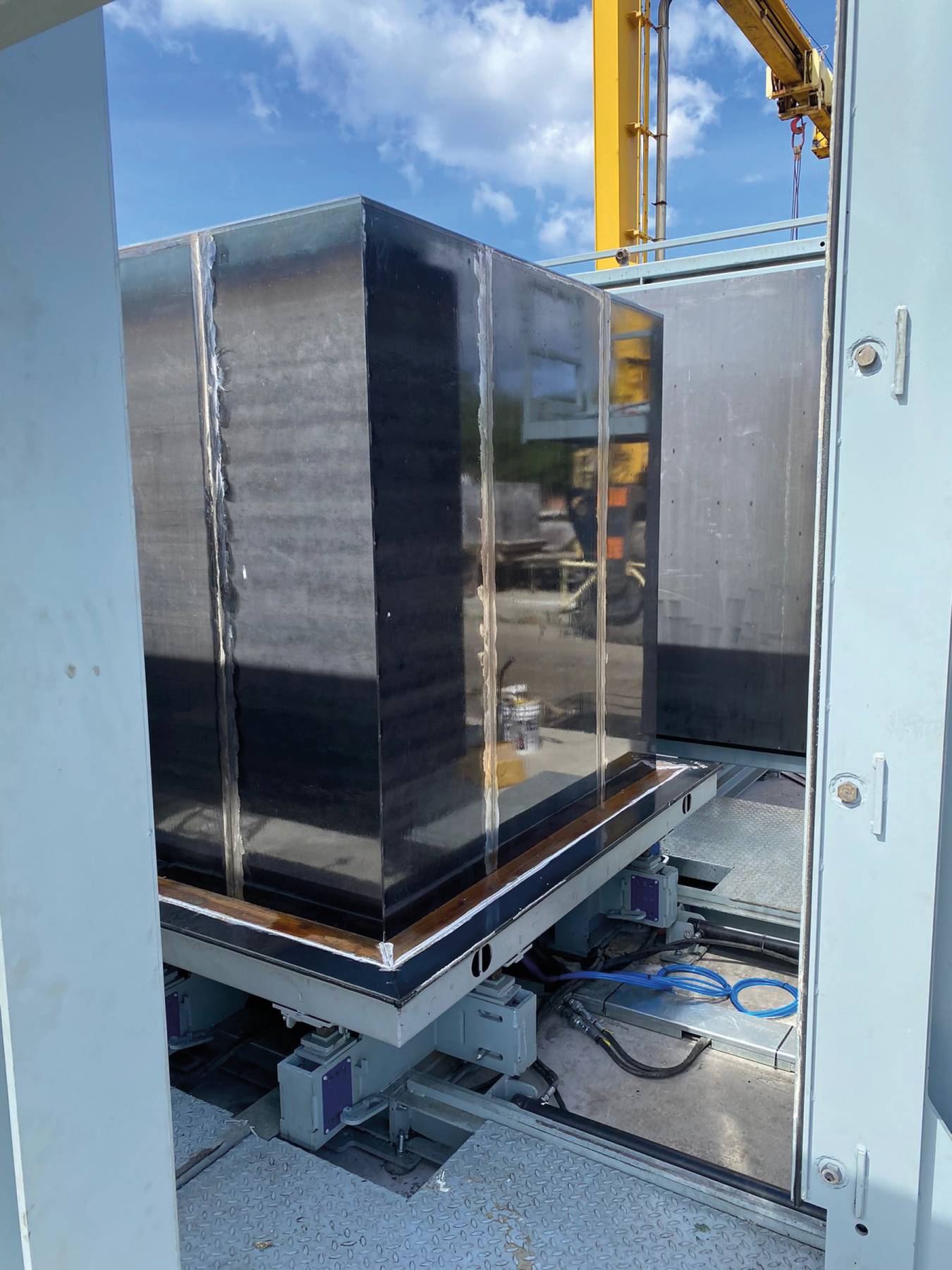

All infill segments and the movable end segments are equipped with a hydraulic lock. This hydraulic locking device consists of 3 individual pins which each have a hydraulic cylinder to activate them. The hydraulic lock avoids workers having to go inside the core when assembling it.
