Moulds for Monobases and Vaults
Moulds for burial vaults and columbariums
Various moulds for single and double precast concrete burial vaults and for single, triple and 12-fold columbariums.

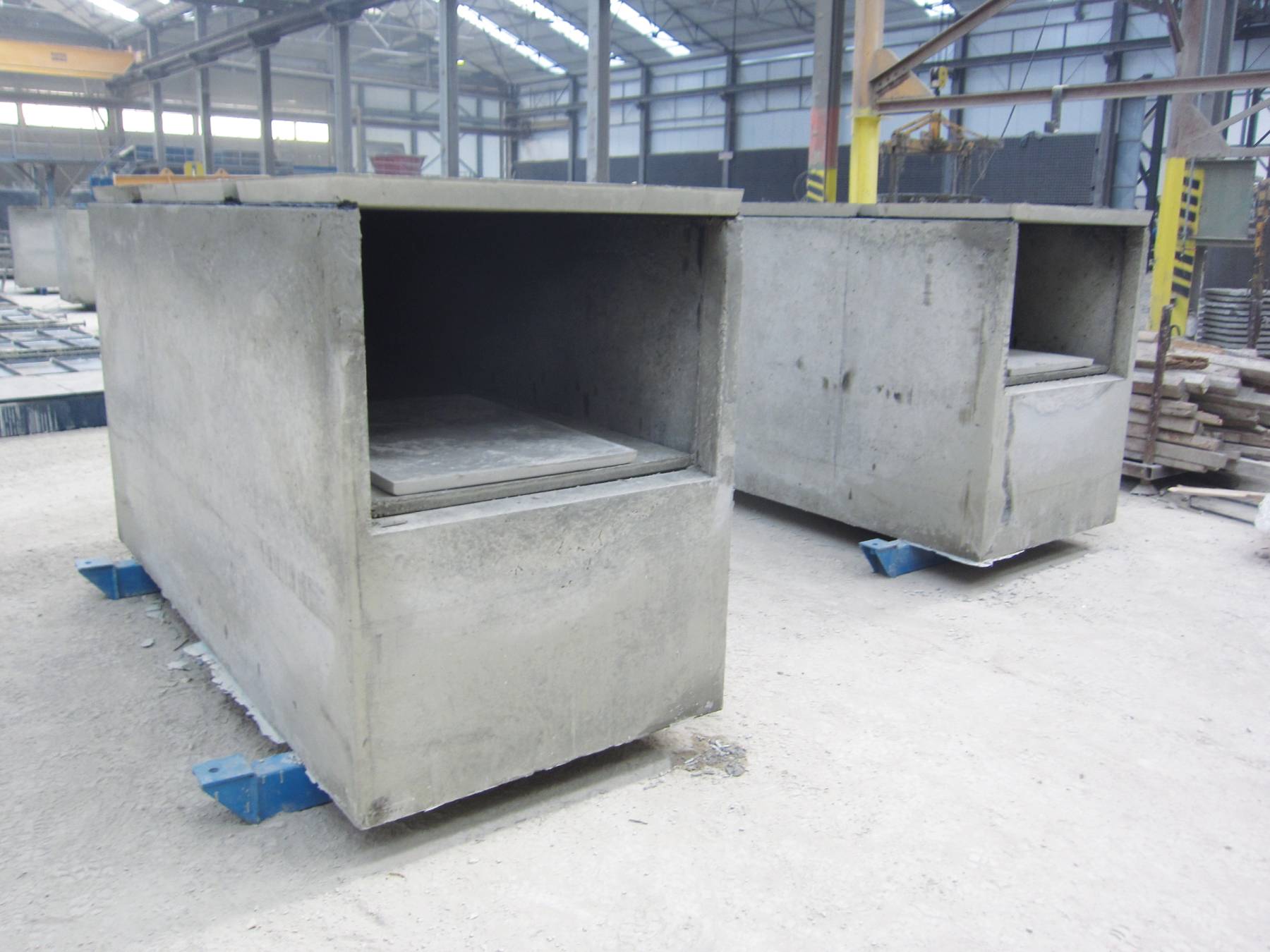

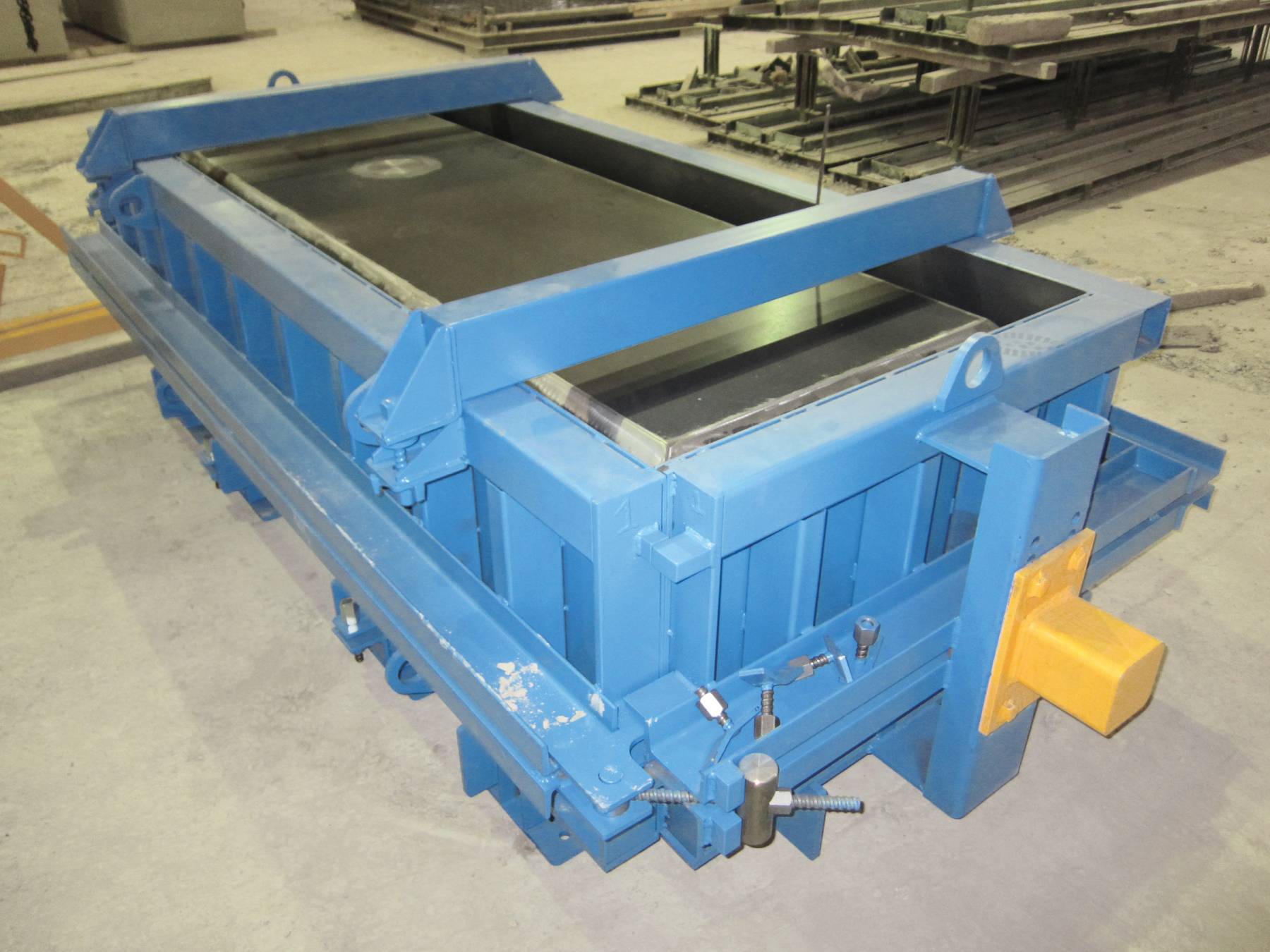

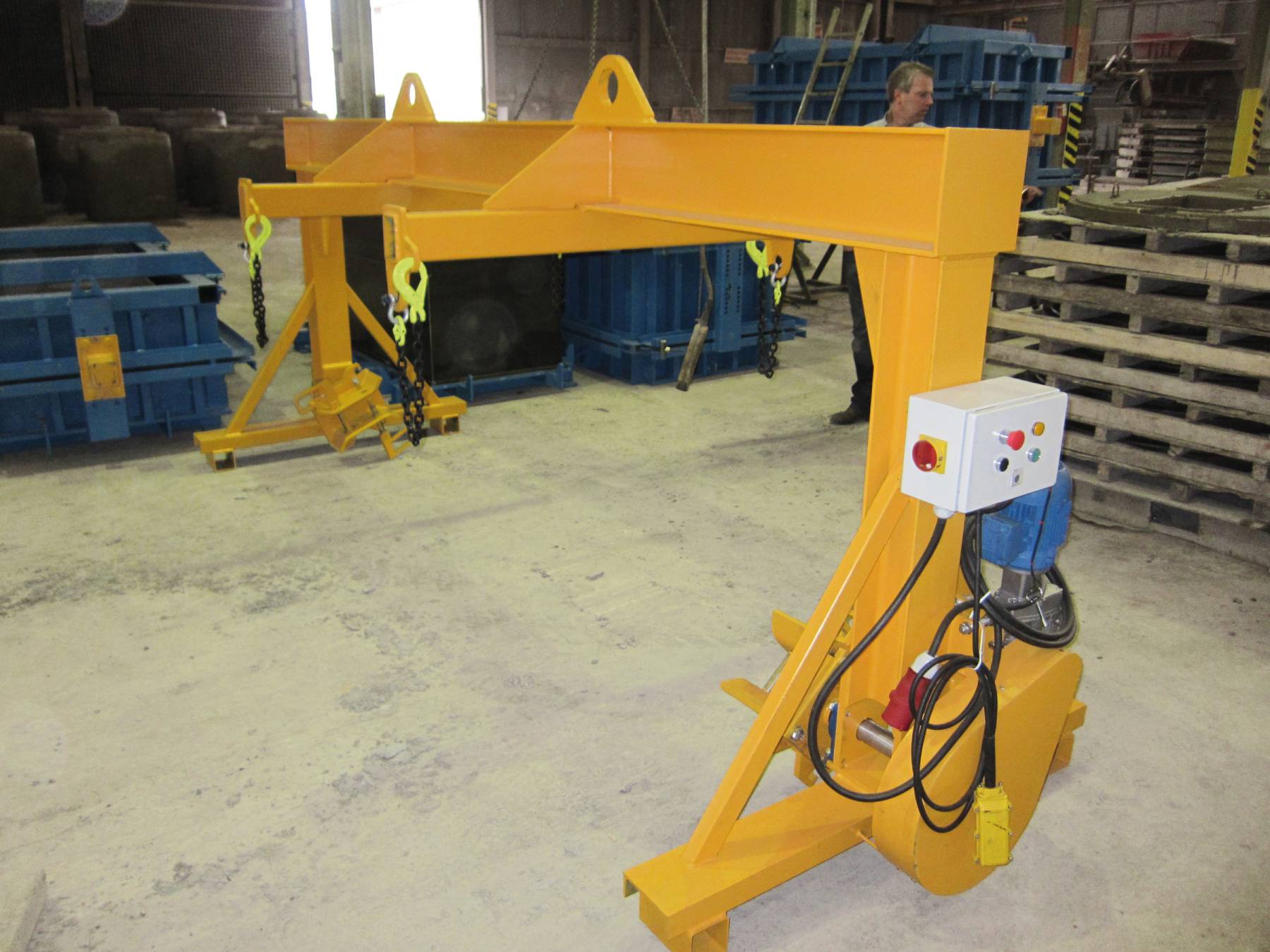

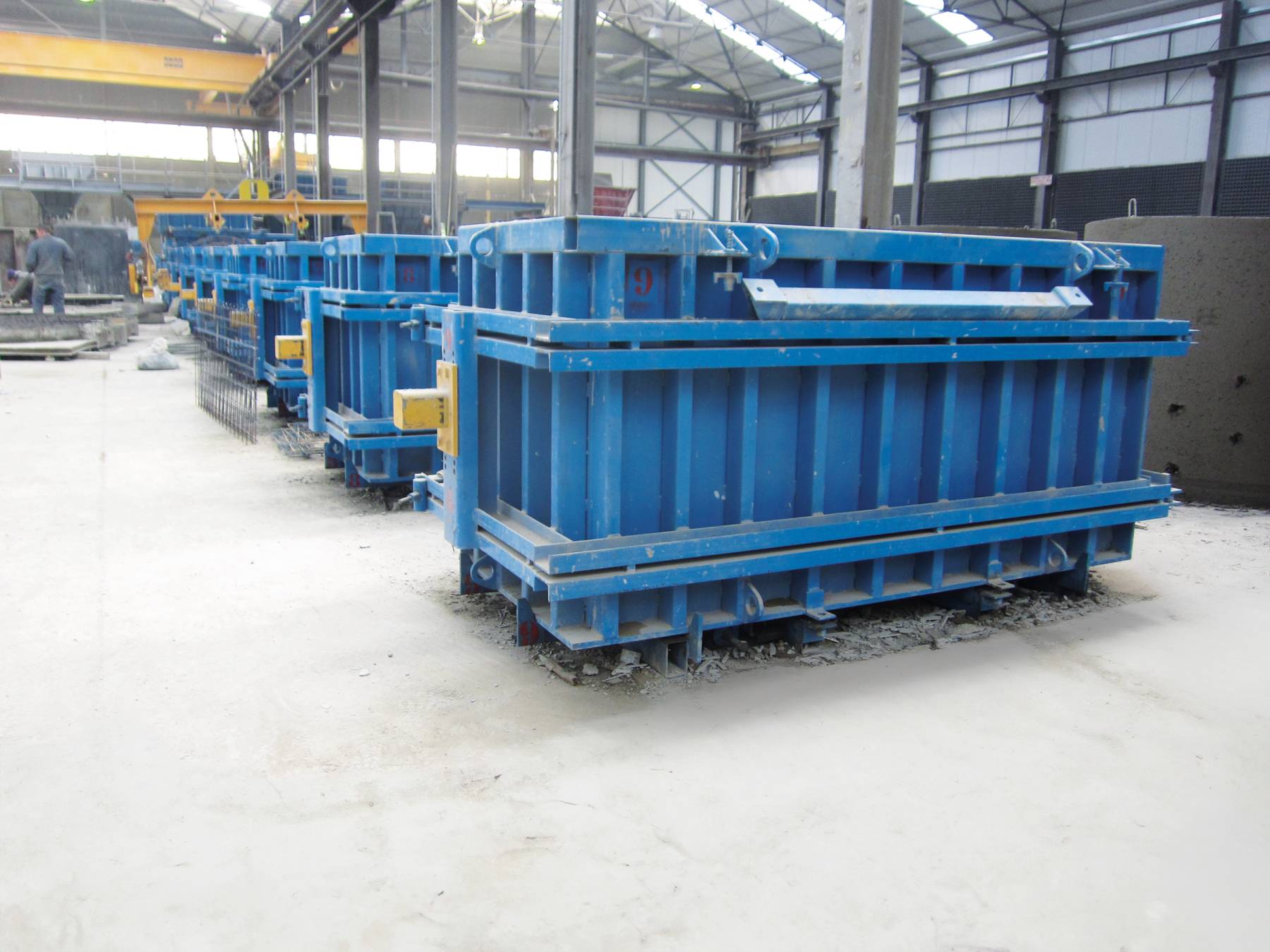

The burial vaults are cast upside down, the next day the exterior mould is removed together with the concrete vault and rotated 180° with an electric turning device after which they are put down and the outer form is removed and turned back. Construx-Weckenmann supplied 2 sets of outside moulds per inside mould. The inner mould contains 2 manual air vents.

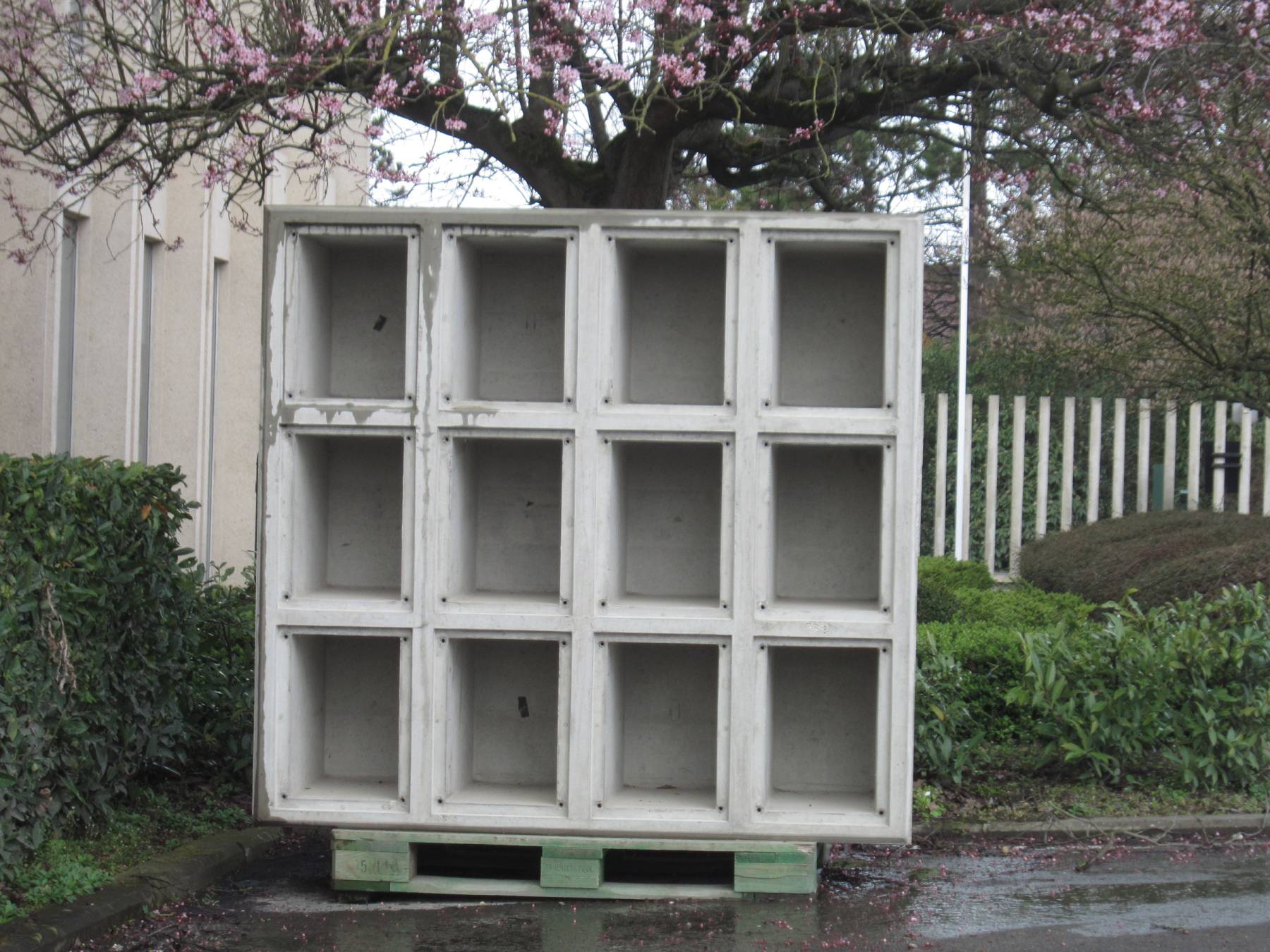

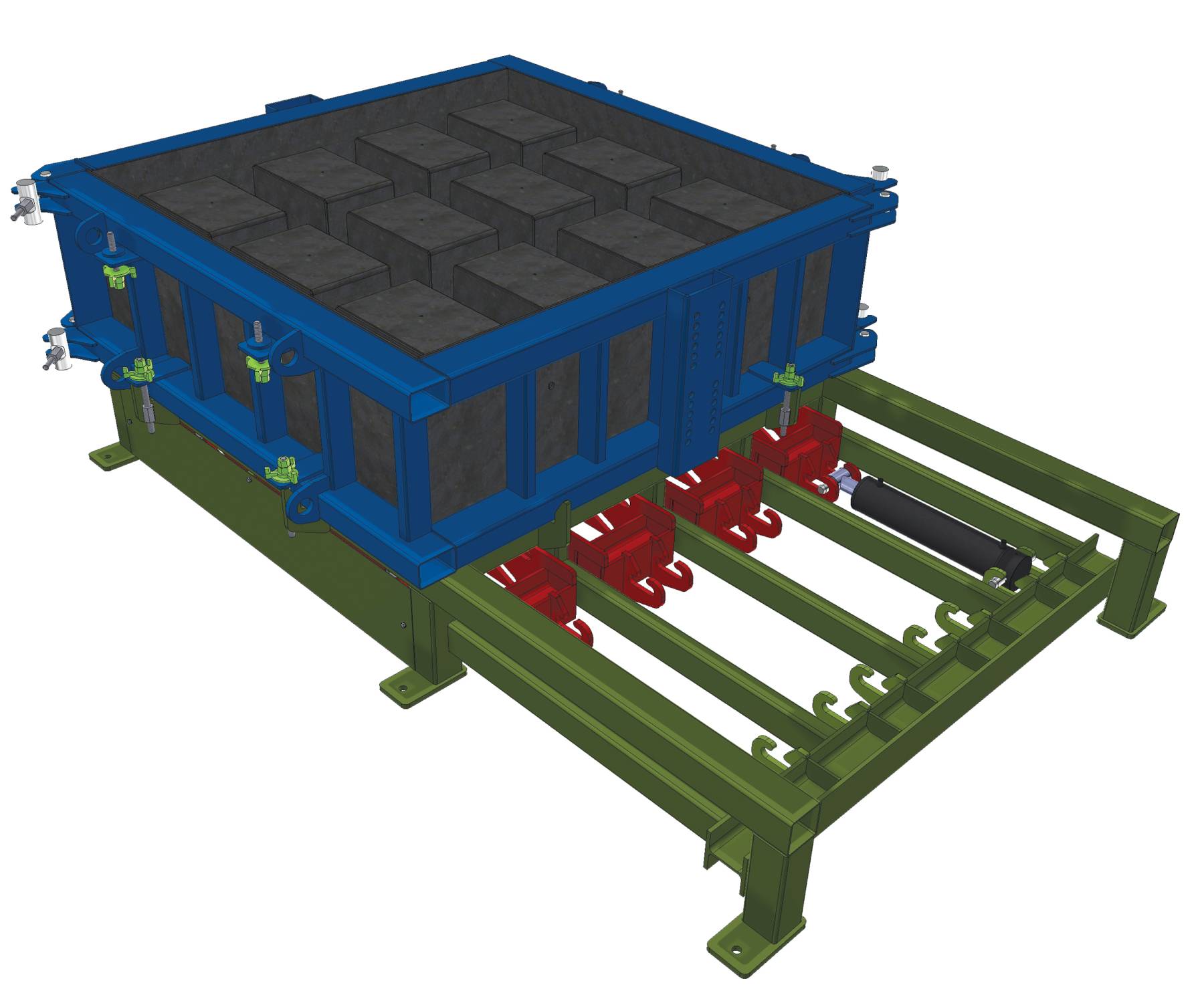

The columbariums are also cast upside-down with small air vents in each of the individual pockets. The multiple moulds are hydraulically demoulded.
