Moulds for basements and lubrication pits

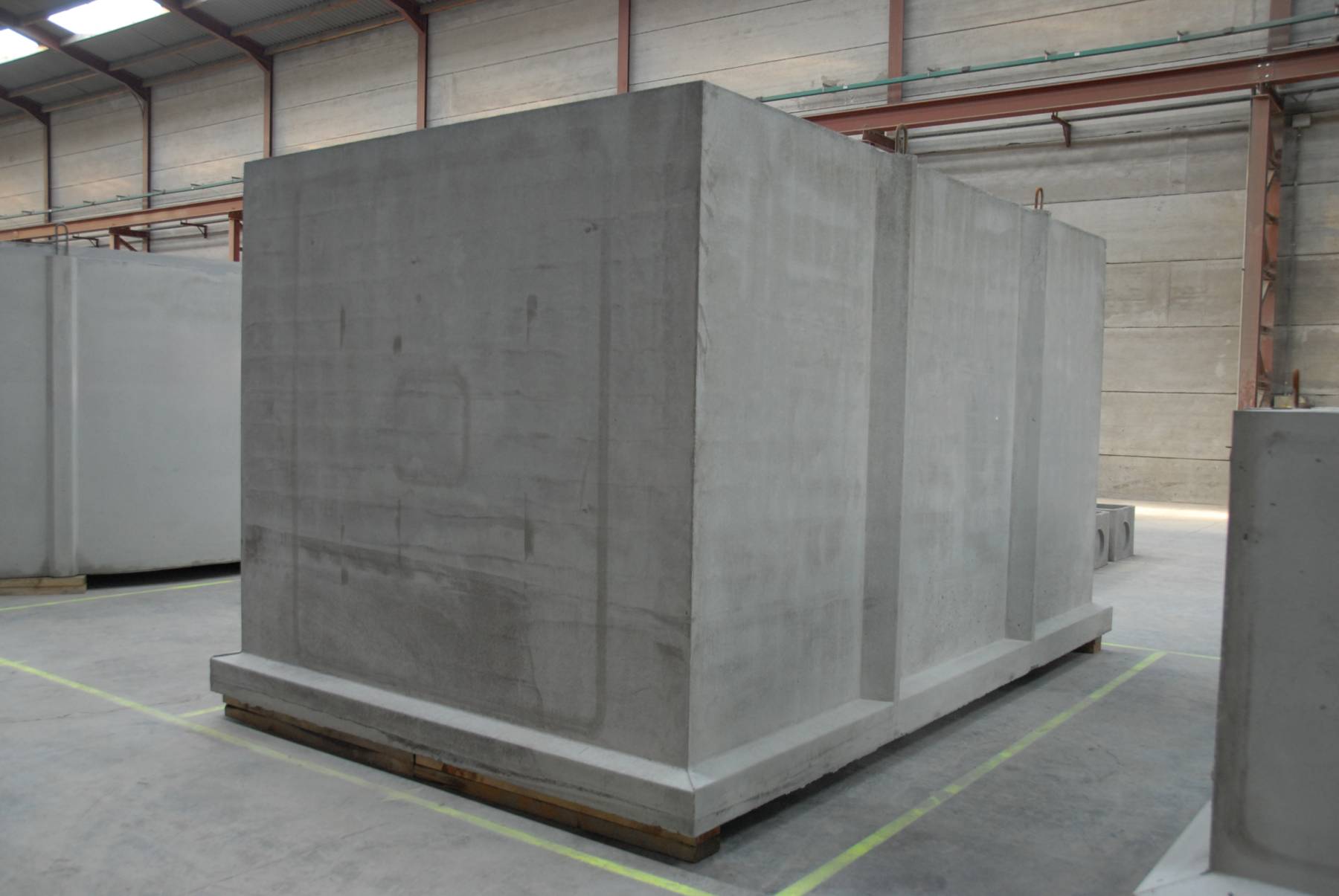

The basements are not conical but fully rectangular with sharp 90° angles in between the walls and the floor. All inner moulds shrink hydraulically and all outer moulds open manually.

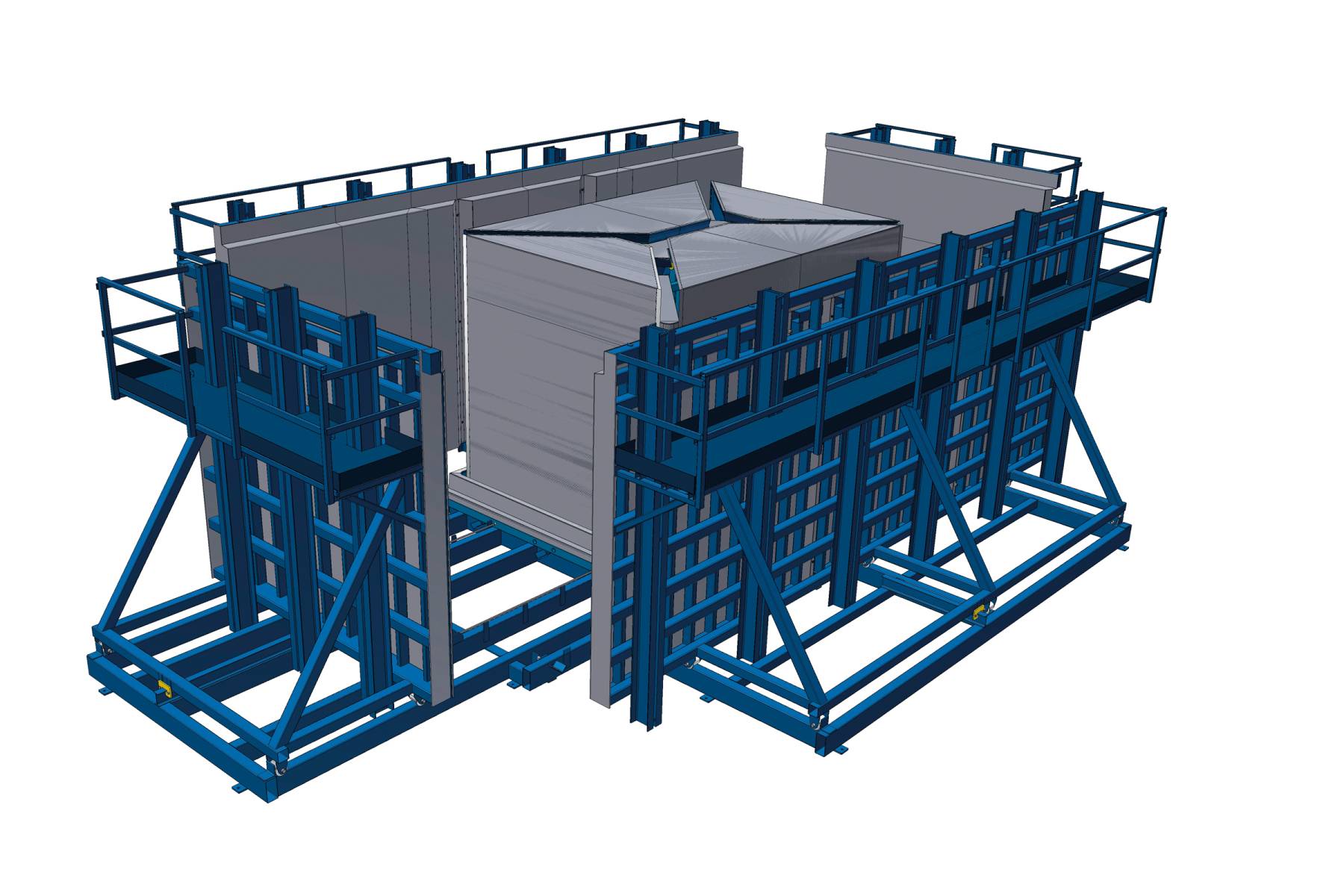

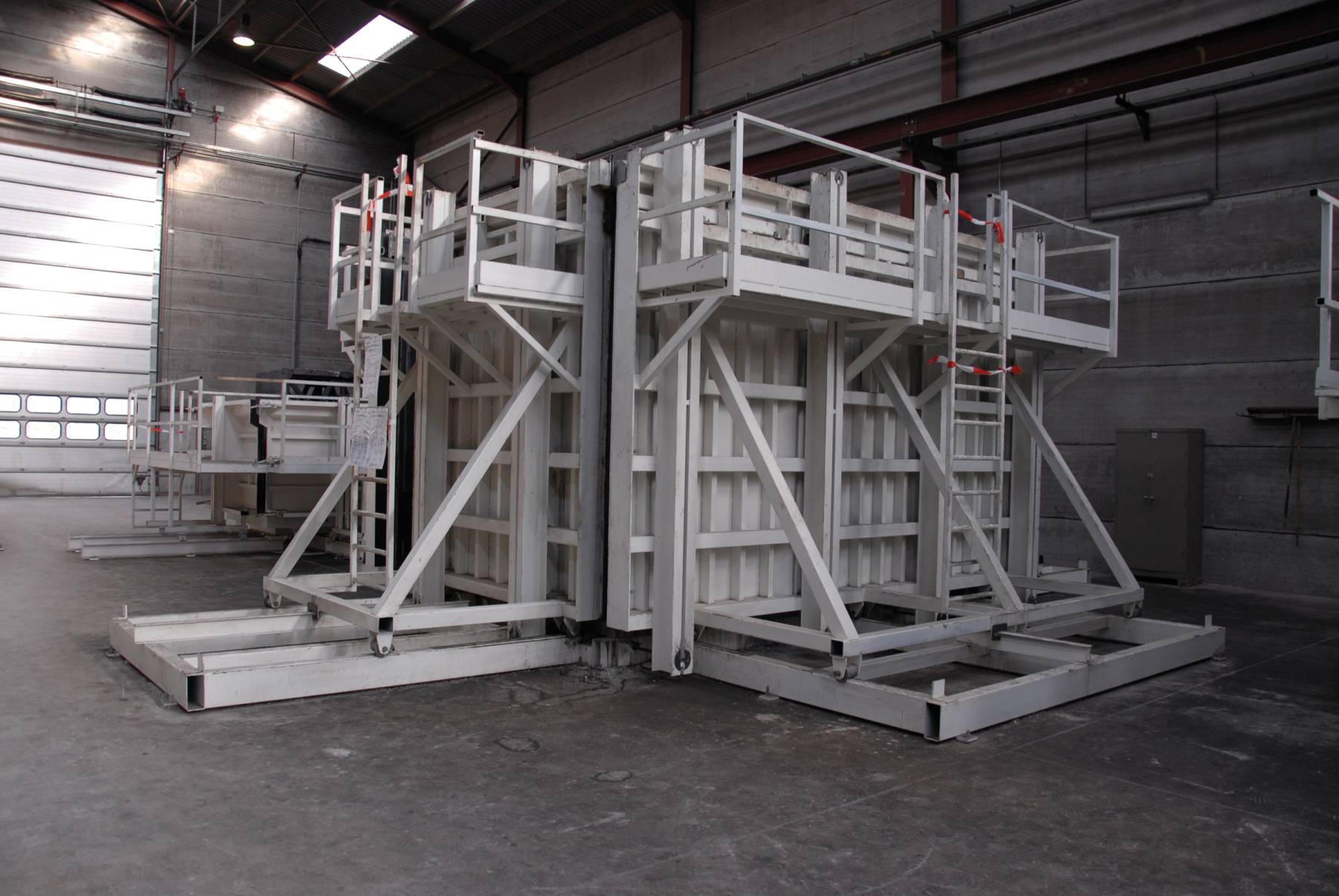

The complete set consists of 1 fixed and 2 adjustable (modular) moulds:

• Fixed mould: L 3240mm x W 2540mm x H 2100mm
• Adjustable mould: L 2240mm, 3240mm or 4240mm x W 2540mm x H 2100mm or 3000mm
• Adjustable mould: L 4280mm, 5280mm, 6280mm or 7280mm x W 3280mm x H 2100mm or 3000mm

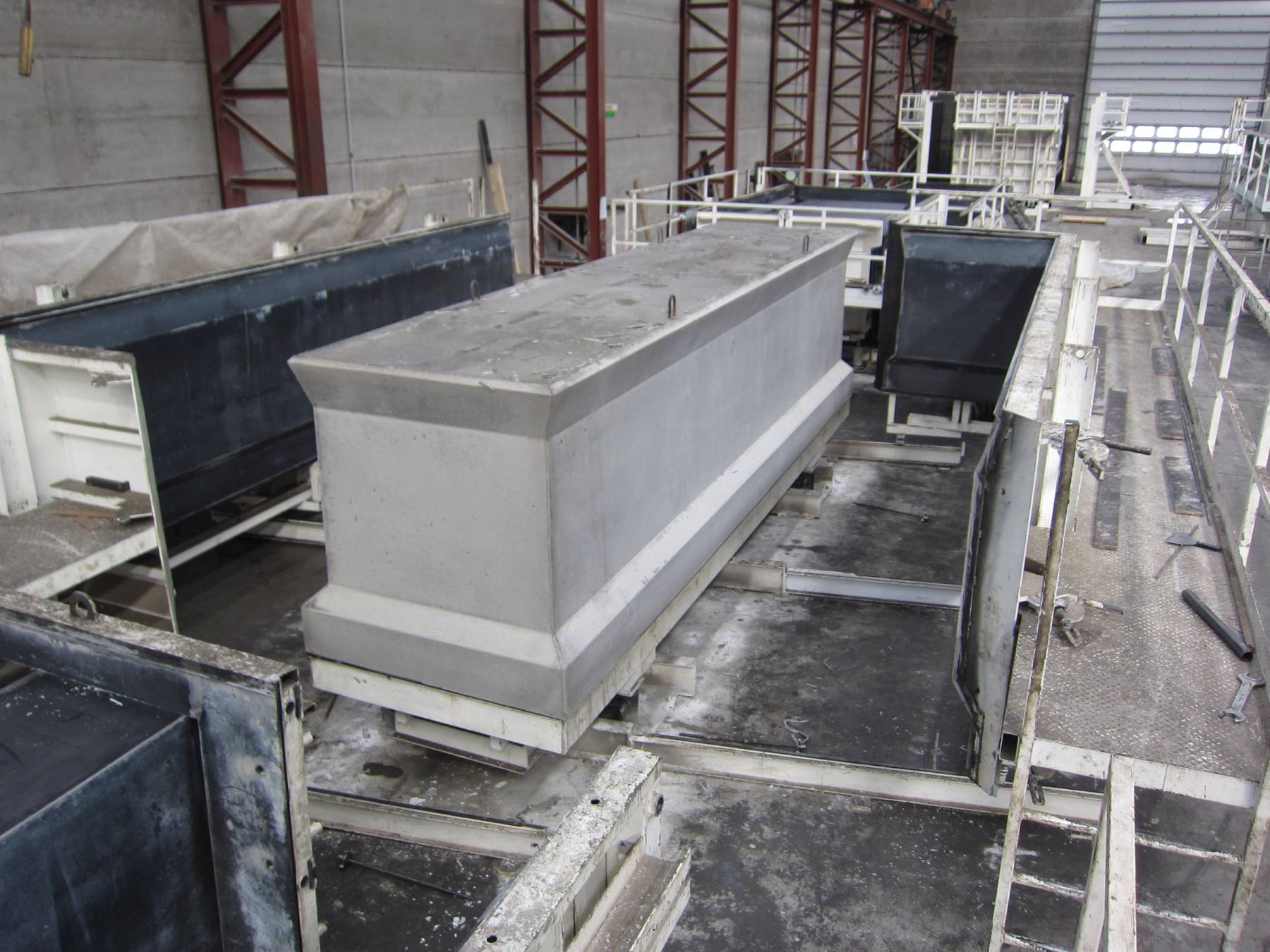

The lubrication pits are U-shaped and modular.

Specifications:

• Type A:
  • All sides closed, or 1 or 2 sides open
  • L 5500mm x H 1400mm

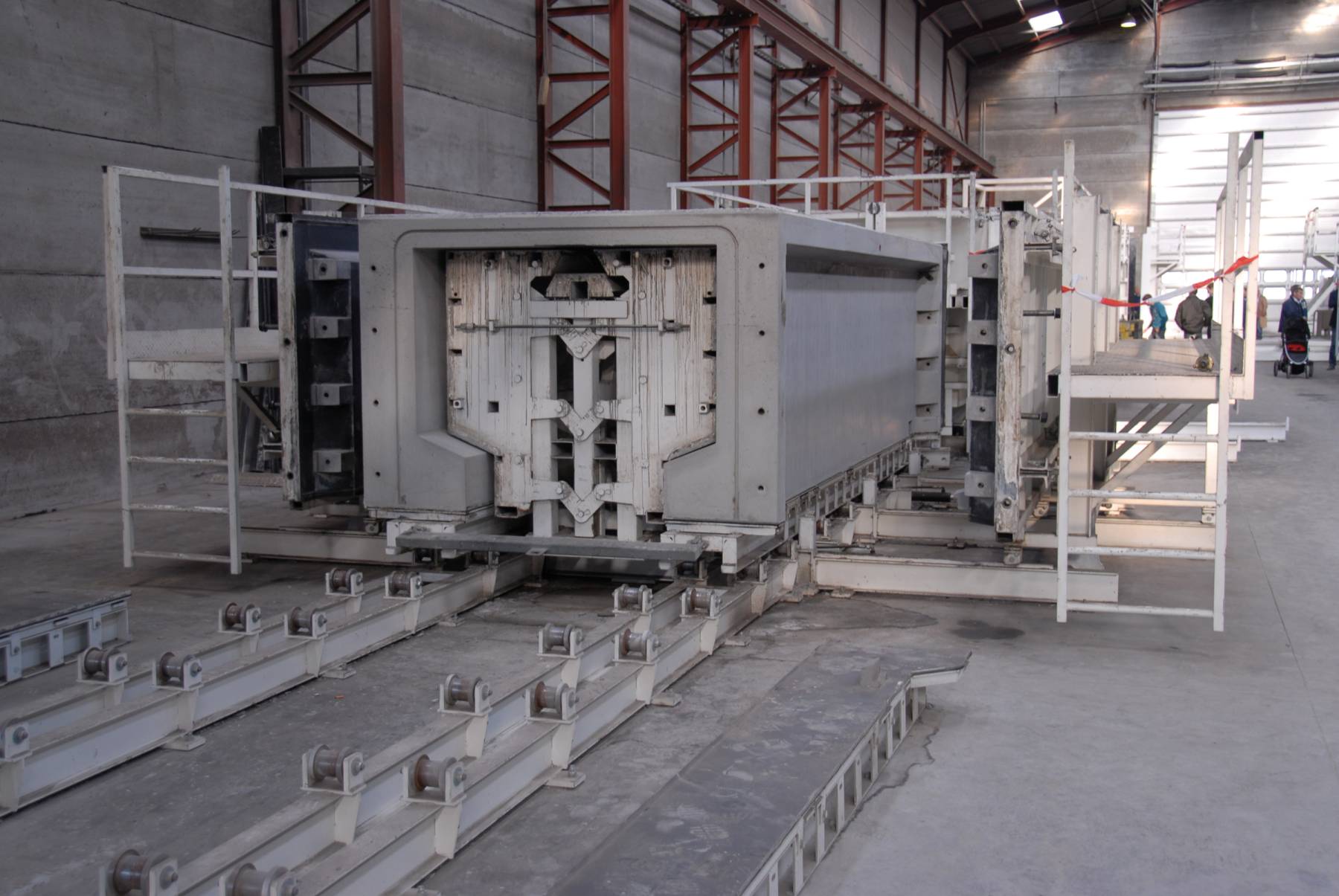

• Type B:
  • Retractable core
  • Heavy duty
  • 2 sets of bases on rails
  •  L max 5250mm x H 1250mm
