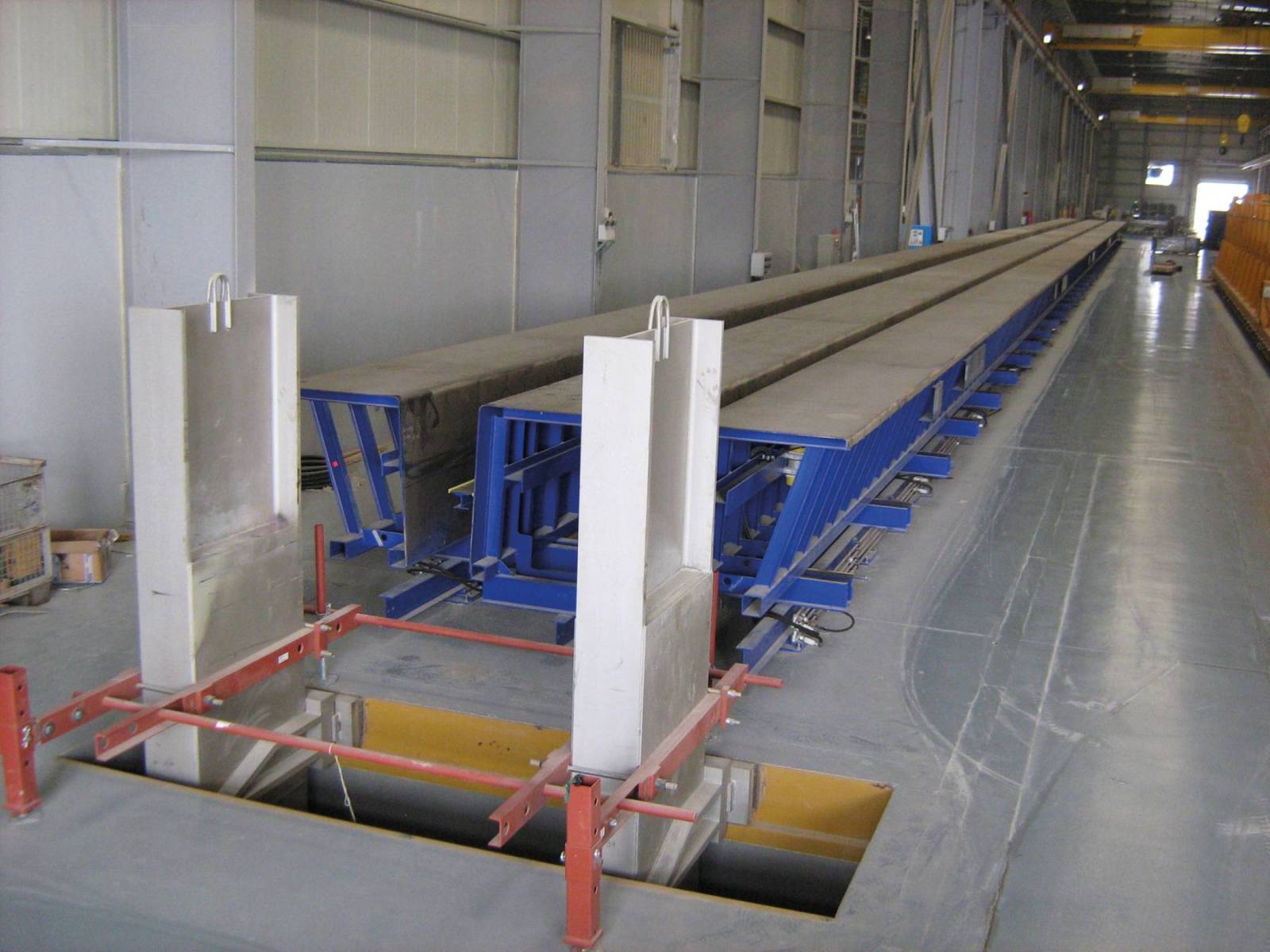

Hydraulically operated mould for prestressed TT-elements
Hydraulically operated mould for prestressed TT-elements
Technical specifications of the TT-elements:
- Width adjustable from 2400mm to 3000mm
- Maximum leg height 1000mm
- Minimum leg height 400mm
- Top plate thickness 70mm
- Bottom width of the legs 120mm or 160mm
Technical specifications of the mould:
- Length 72m
- Steel main frame supported by silent blocks
- Fixed center form
- Width adjustable from 2400mm to 3000mm
- Side-forms with integrated magnets to change the width of the slab, 70mm high
- Height of the legs adjustable from 400mm to 1000mm
- Two hydraulically movable side-forms to adjust web width
- Interchangeable soffits, 120mm and 160mm wide, equipped with rubber sealings
- Height adjustment for the soffits, in a grid of 50mm
- High frequency vibrators, 48n°
- Frequency converter
- Hydraulic unit, cylinders and piping
- Control system with radio remote
