Self-reacting long line system for turnout railway sleepers

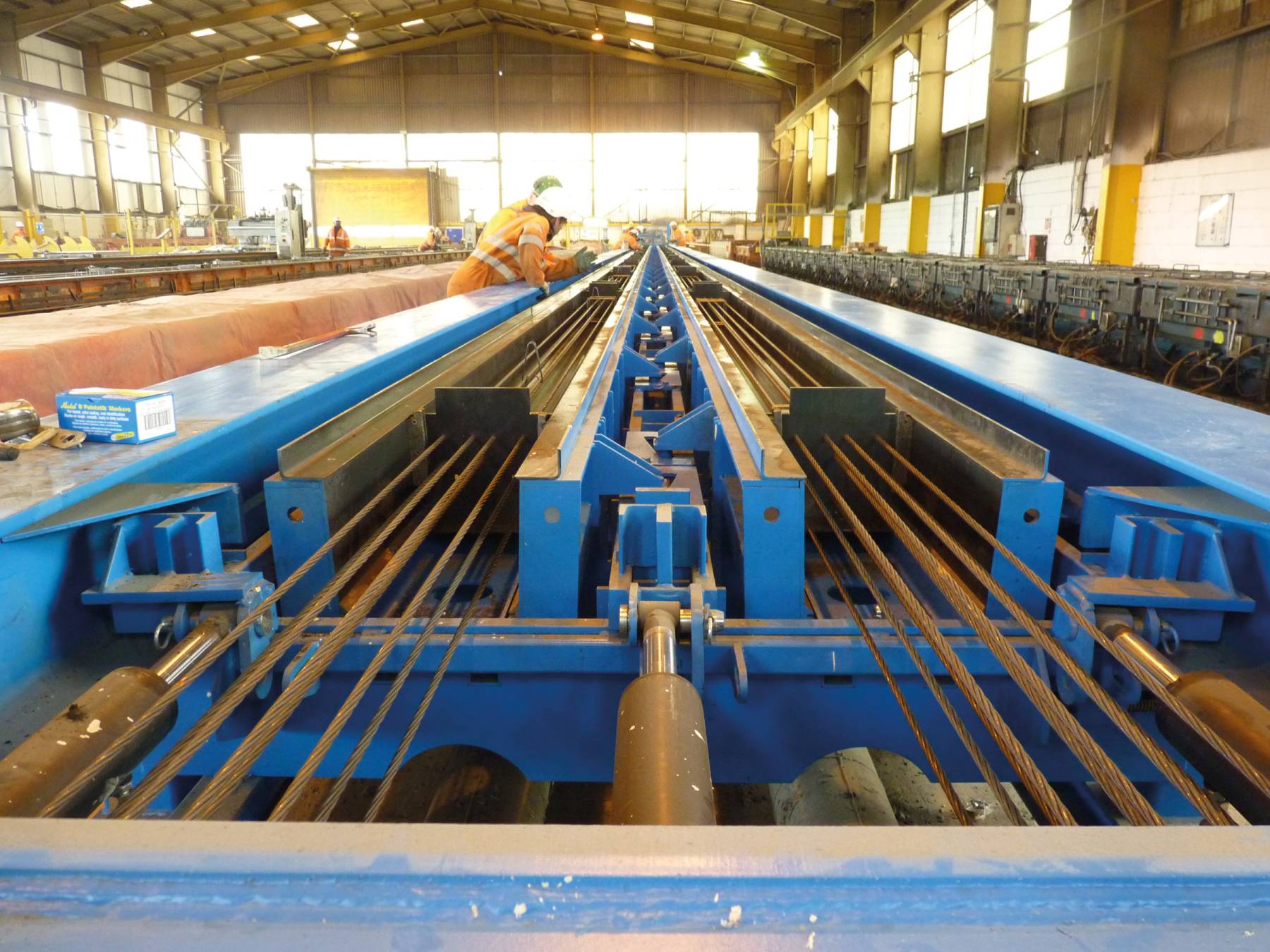

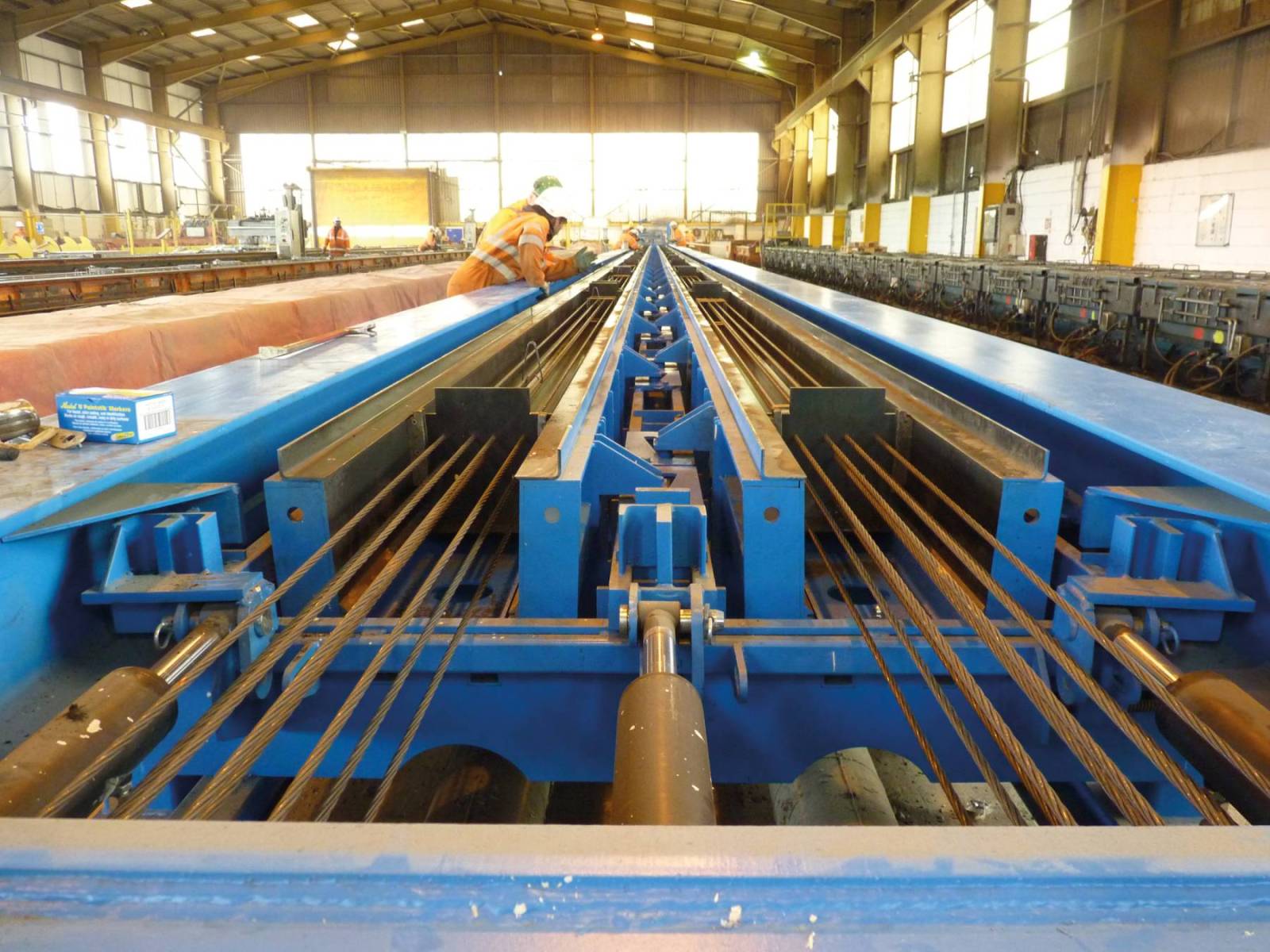

Construx-Weckenmann supplies a 50m long 200T self-reacting mould for the production of turnout sleepers.

The construction of the mould absorbs all applied prestressing forces hence there is no need for any anchoring.

Technical specifications of the mould:

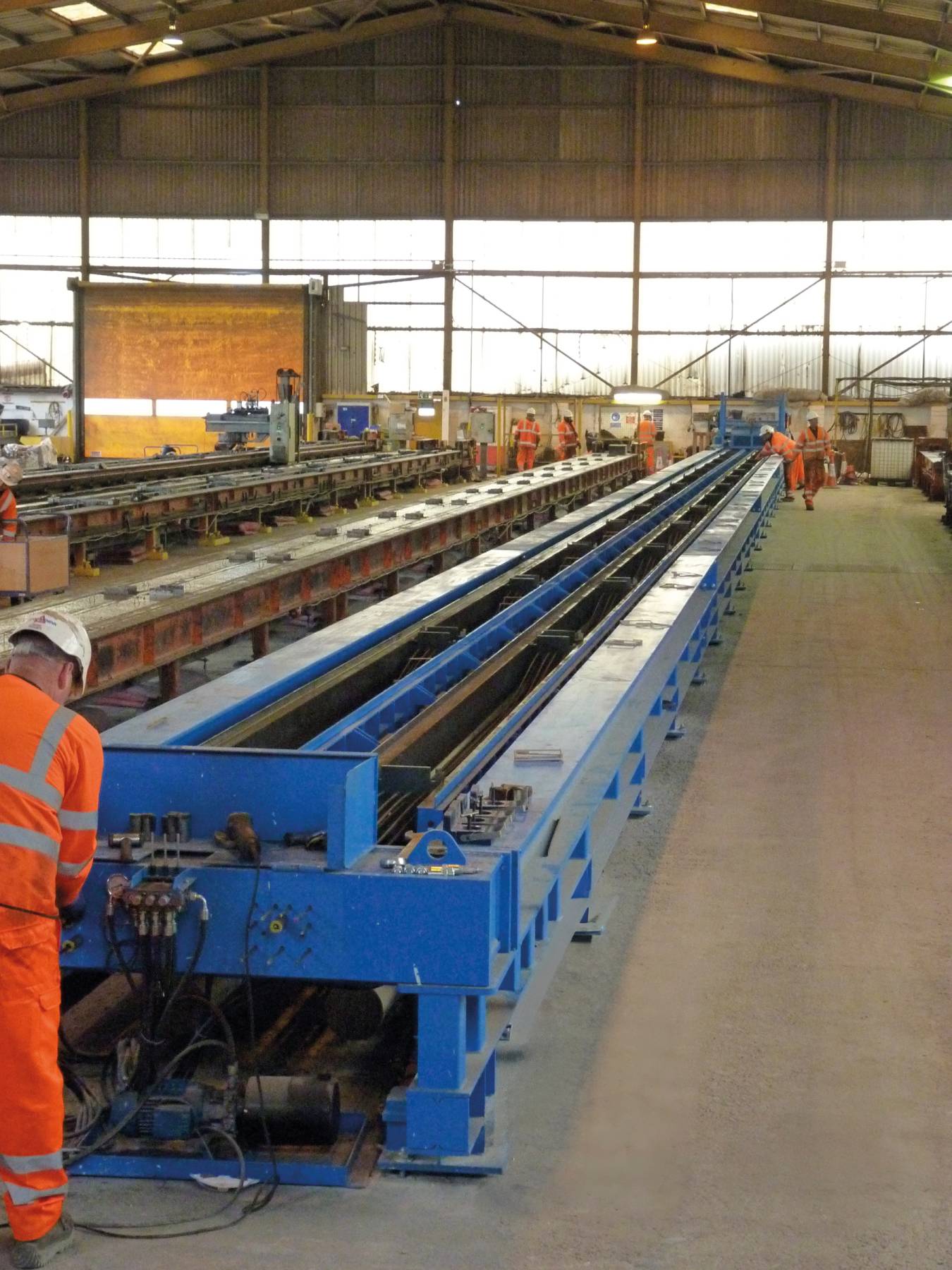

• Pouring length 50m
• 2 lines of railway sleepers
• Tapered sleeper width, from 260mm to 280mm
• Sleeper thickness 205mm
• Random number of rail seat positions
• Maximum 10 strands per line
• Prestressing force 200T

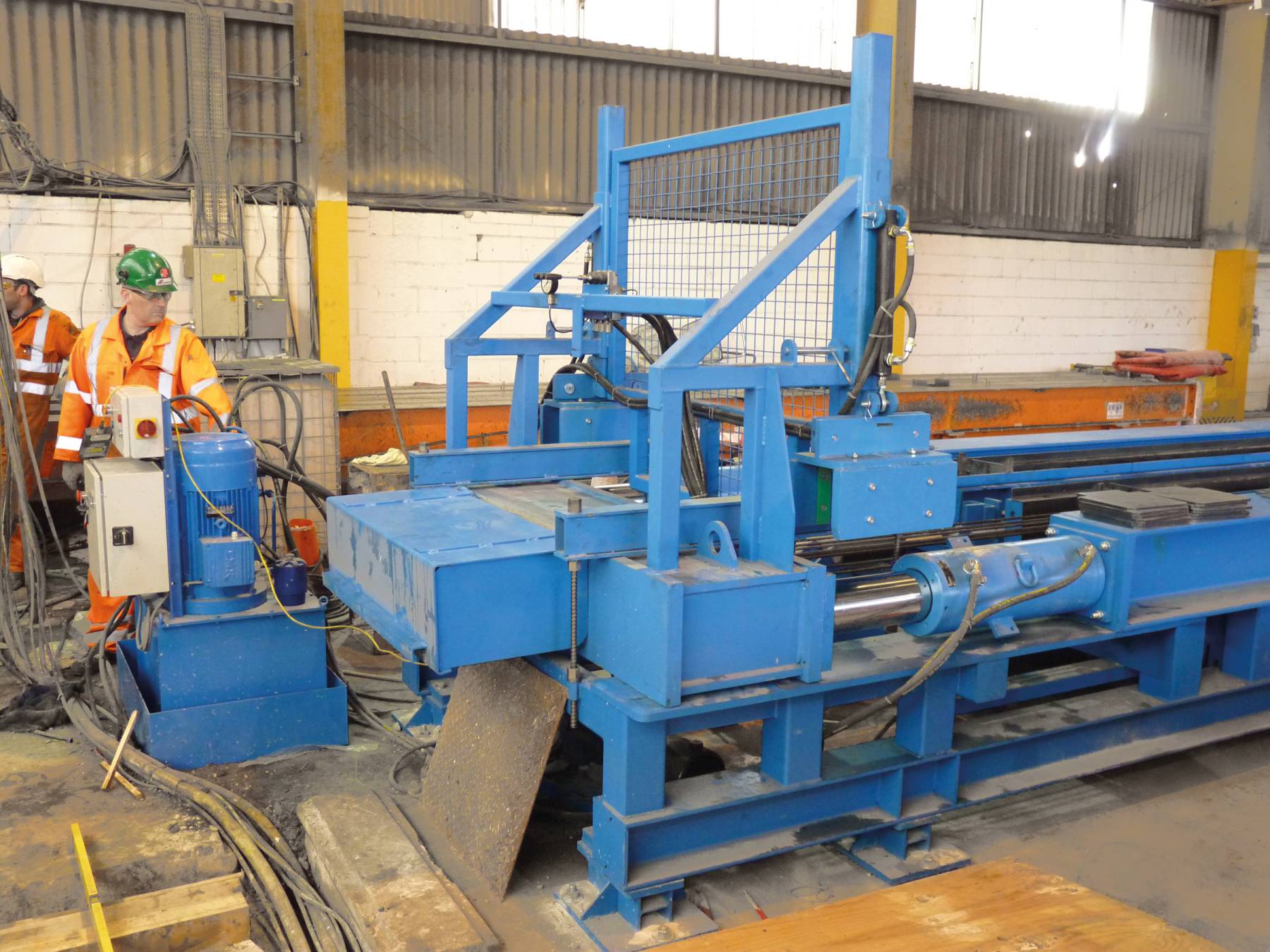

• 2 double-acting hydraulic cylinders, stroke 400mm, capacity 100T
• Mass tensioning and detensioning

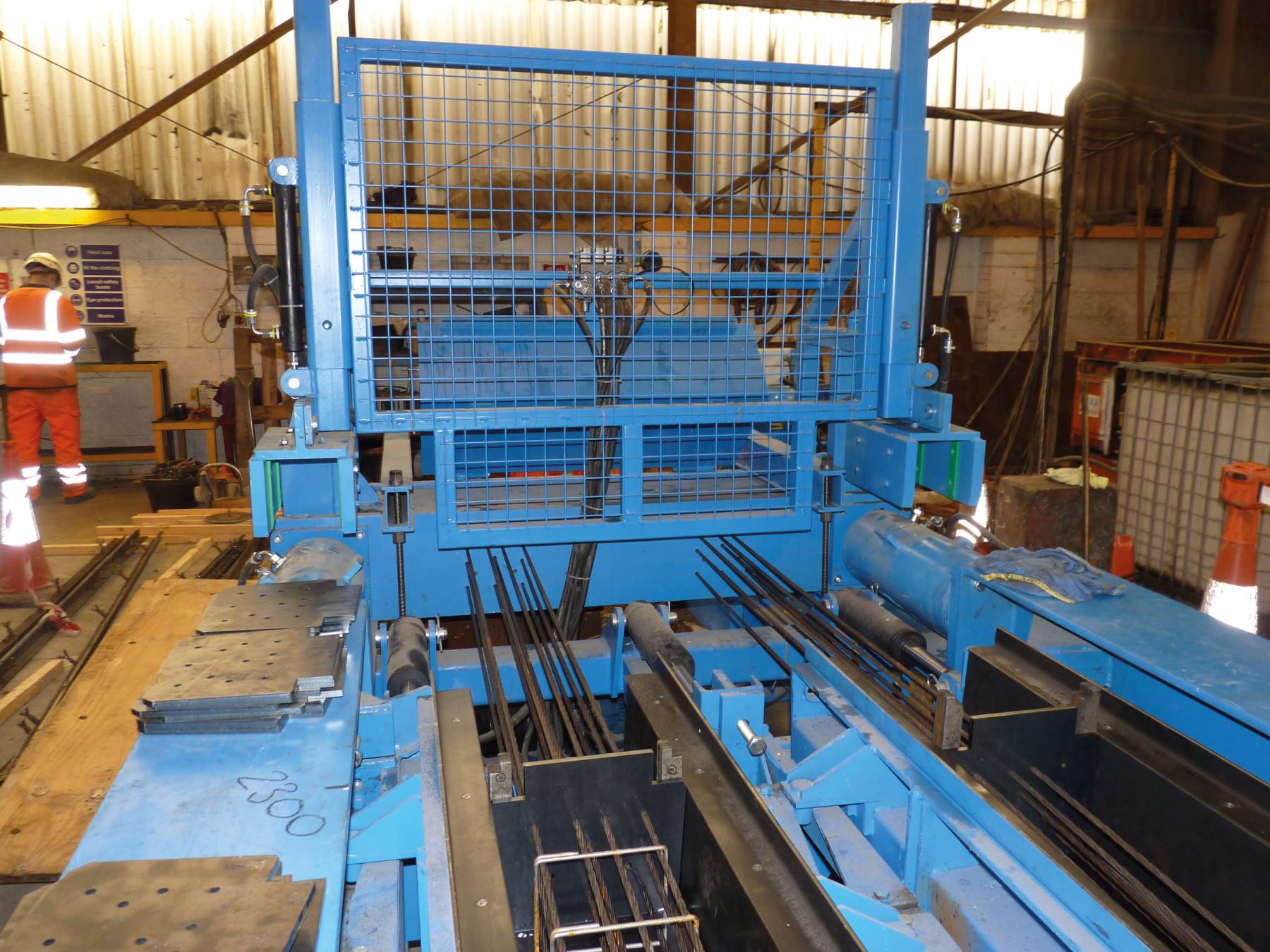

• Hydraulic placing and removing of the horseshoe clamps
• Side-forms open and close hydraulically

Show more of:

• Prestressed elements
• United Kingdom

Linked products

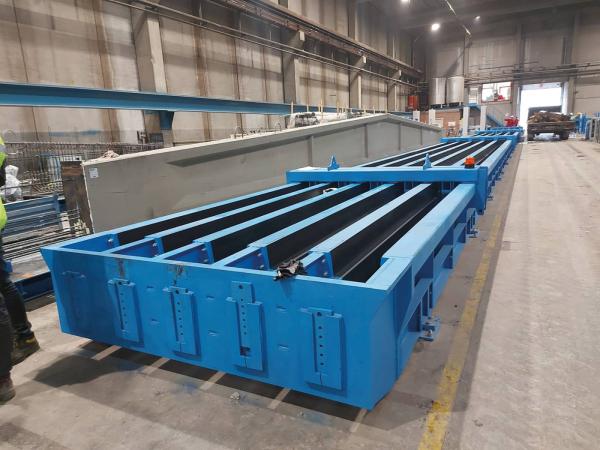

Self-reacting moulds
