Self-reacting frames for floor slab systems

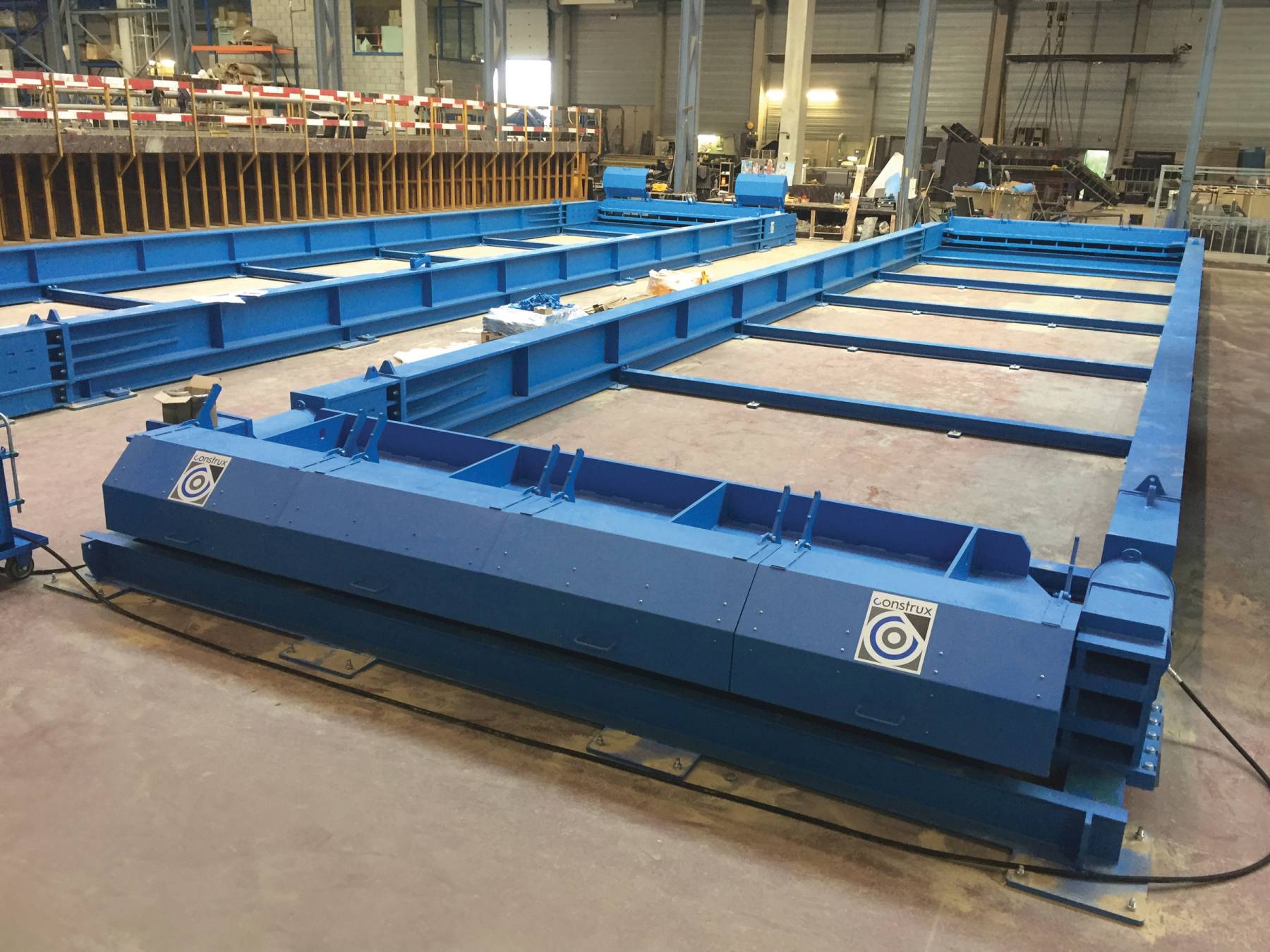

Construx-Weckenmann supplied 2 very wide 500T self-reacting frames to accommodate timber or steel moulds, without any need for foundation works or special anchors to hold the frame down.

Specifications:

• Frame width
  • Overall 5605mm
  • Inside 4800mm
  • Usable 4500mm
• Frame length
  • Overall 22,725m
  • Inside 19,5m
  • Usable 190m

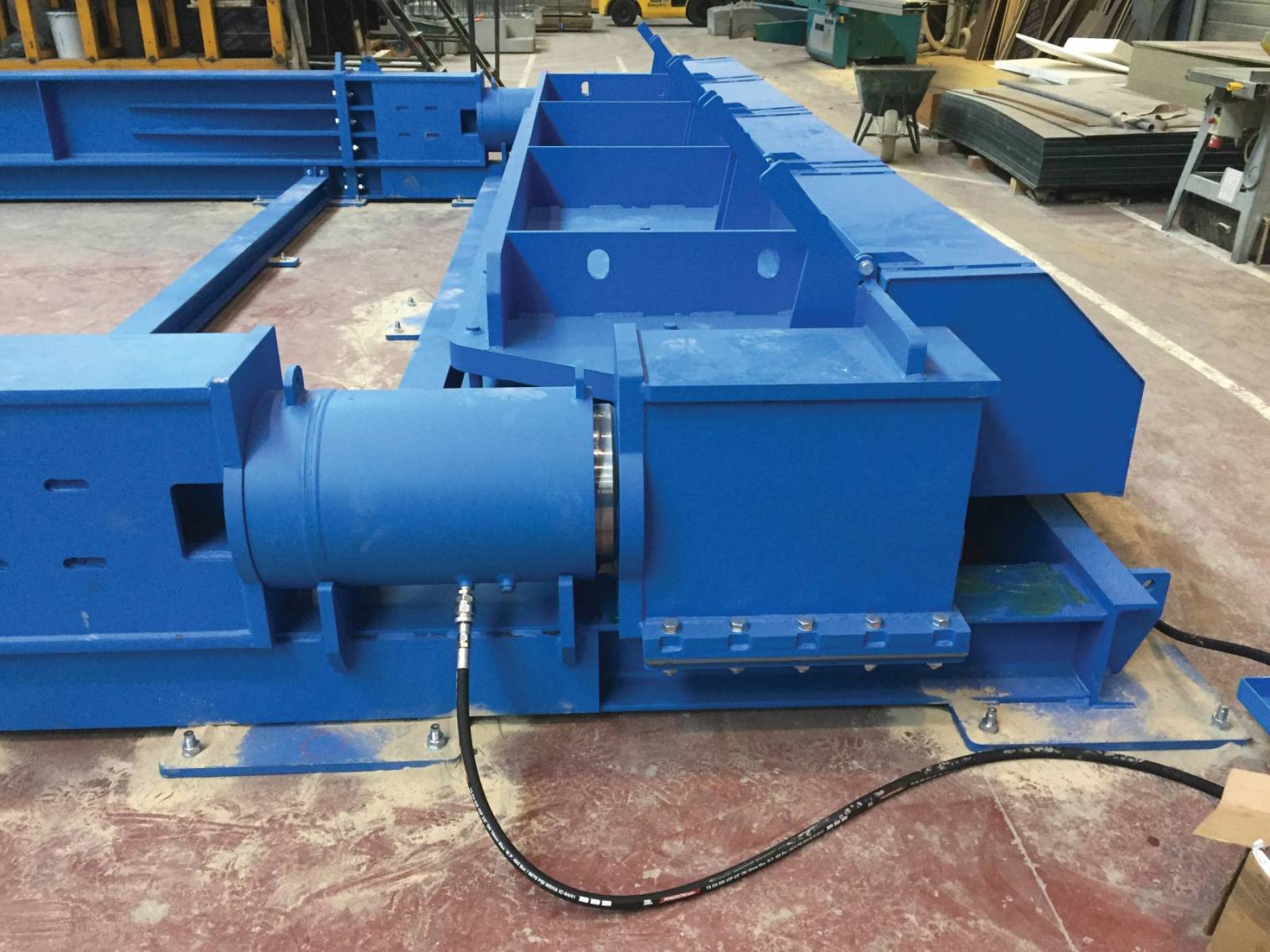

• Hydraulic cylinders 2 x 250T
• Maximum prestressing force 500T
• Stroke cylinders 250mm
