Self-reacting frame for wide slab

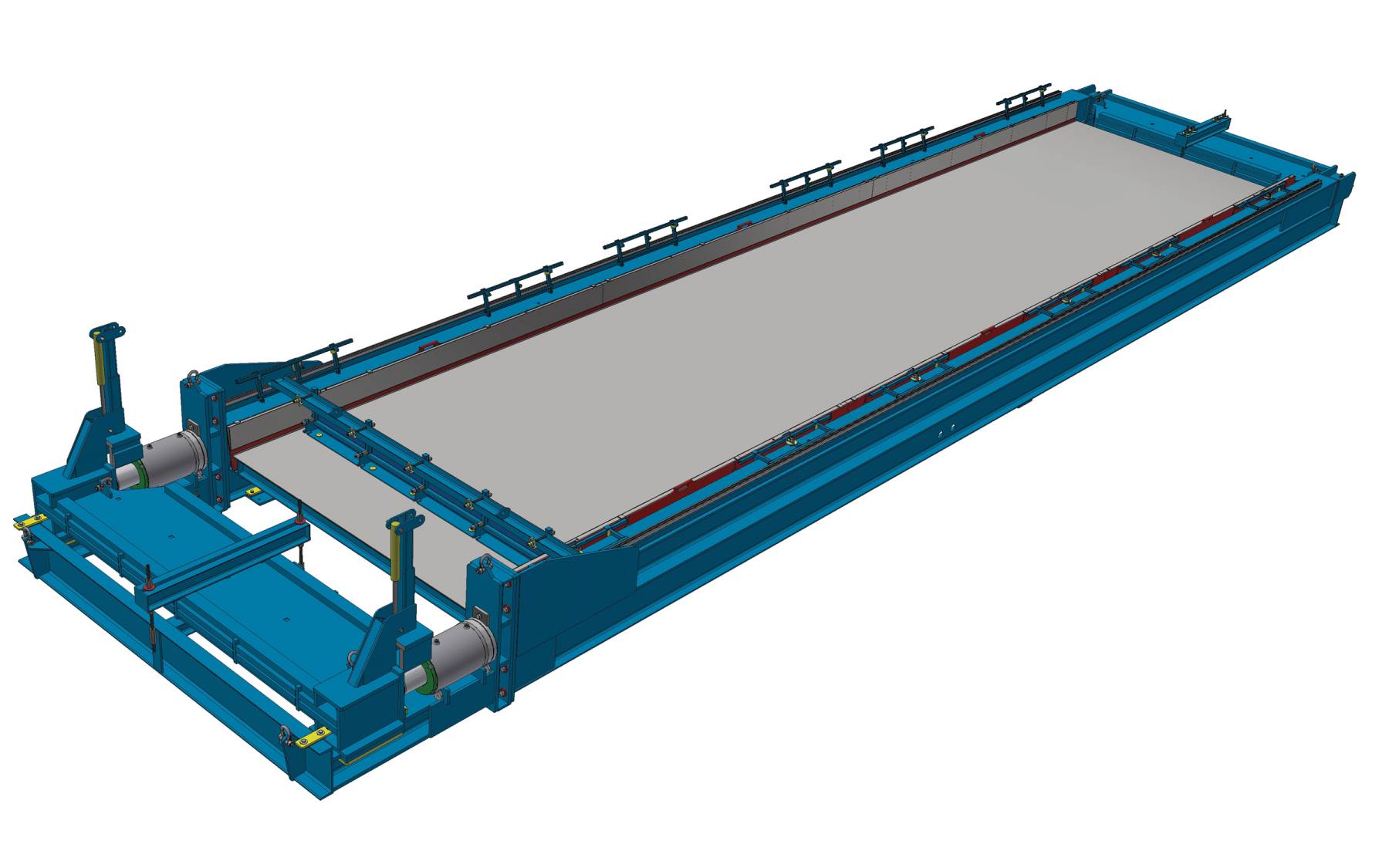

A full steel table with vibrators and heating in a 500T self-reacting frame.

Specifications:

• No need for foundation works or special anchors
• Frame overall width 3850mm
• Table width 3000mm
• Frame overall length 15,9m
• Table length 12,5m

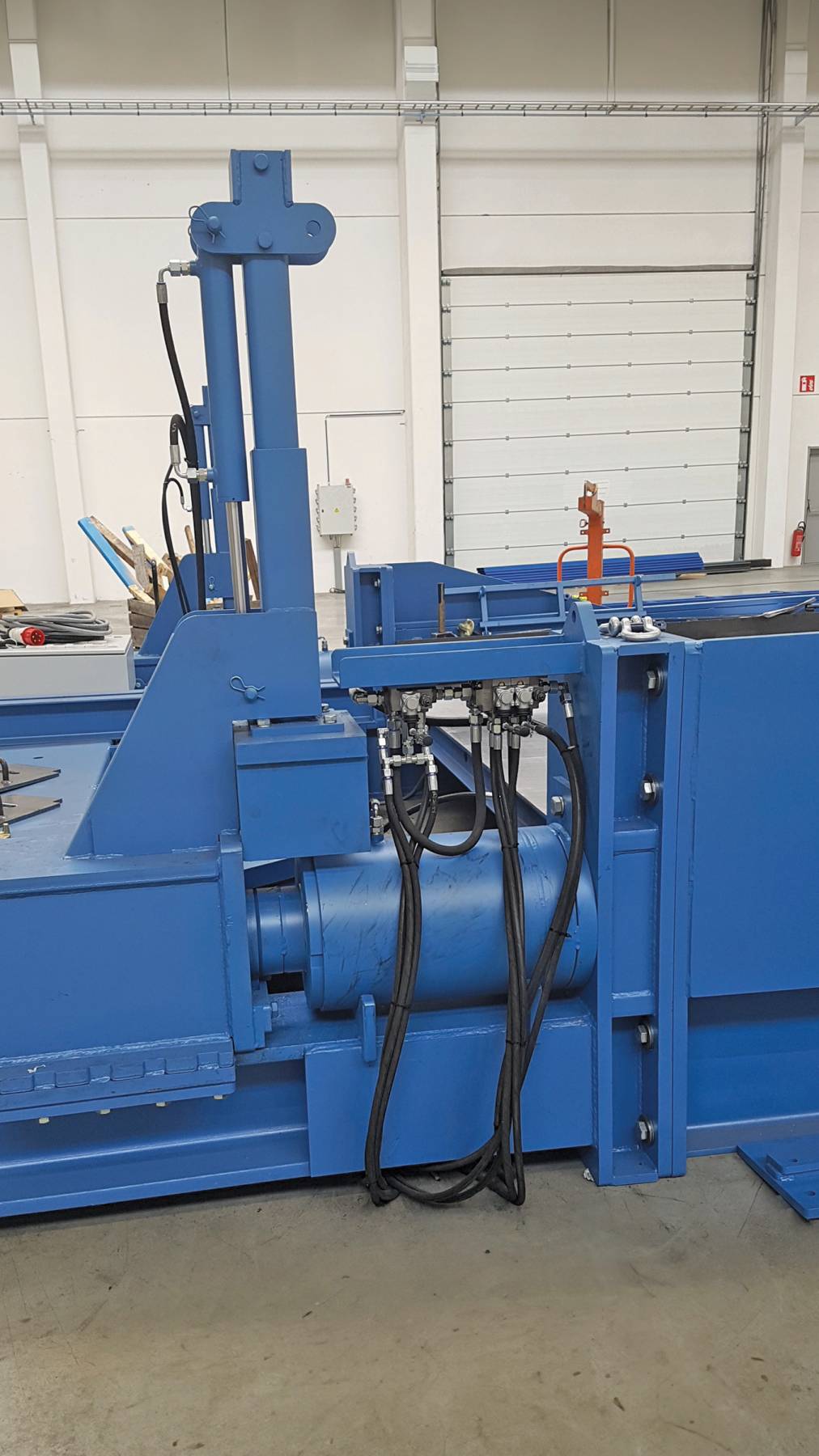

• Mass tensioning with hydraulic cylinders 2 x 250T
• Maximum prestressing force 500T
• Stroke cylinders 250mm
• Hydraulic placing of horseshoes
• Tapered and retractable side-forms 250mm
• Vibrators
• Heating
