Modular and adjustable side-forms for prestressed elements

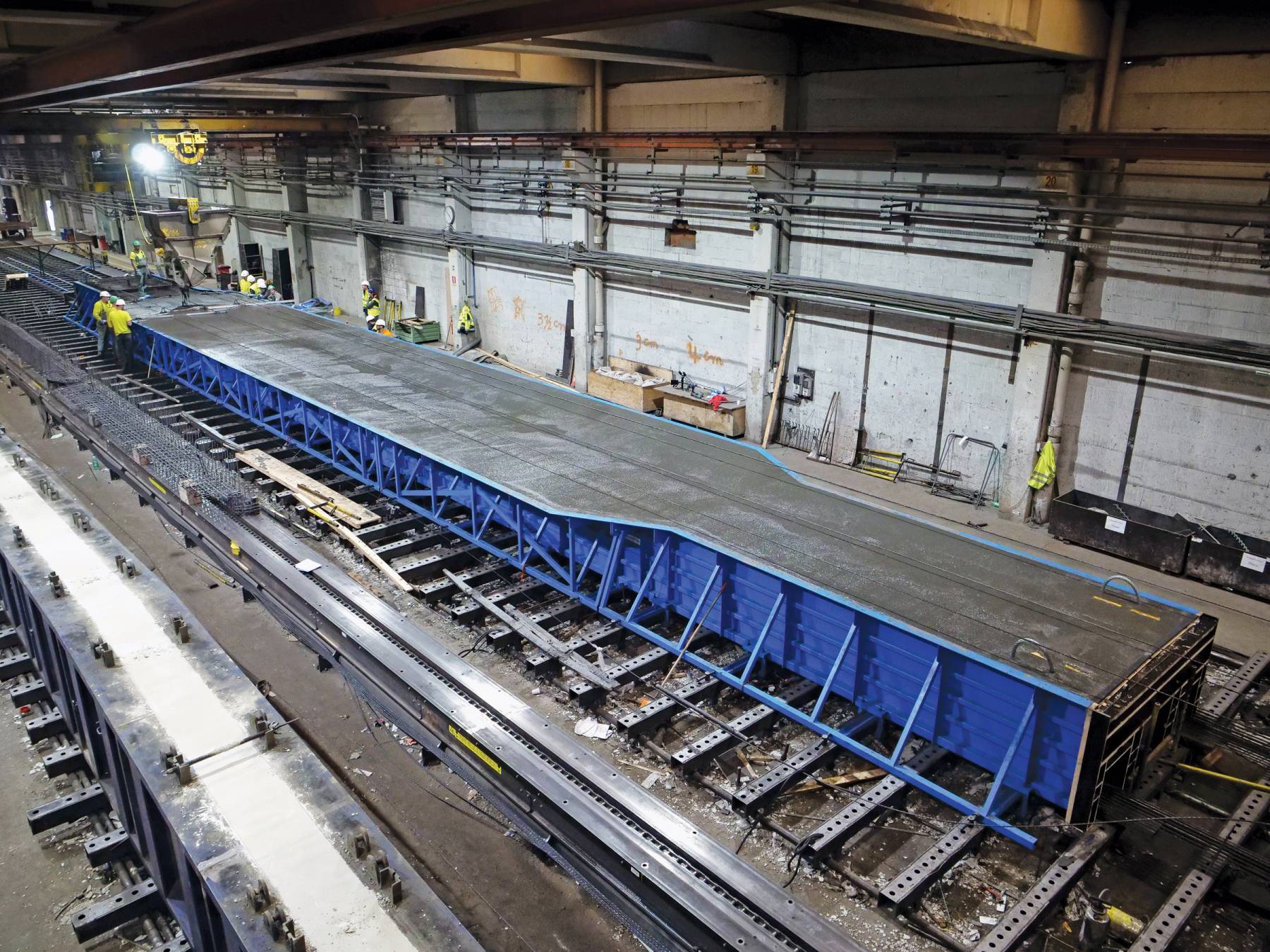

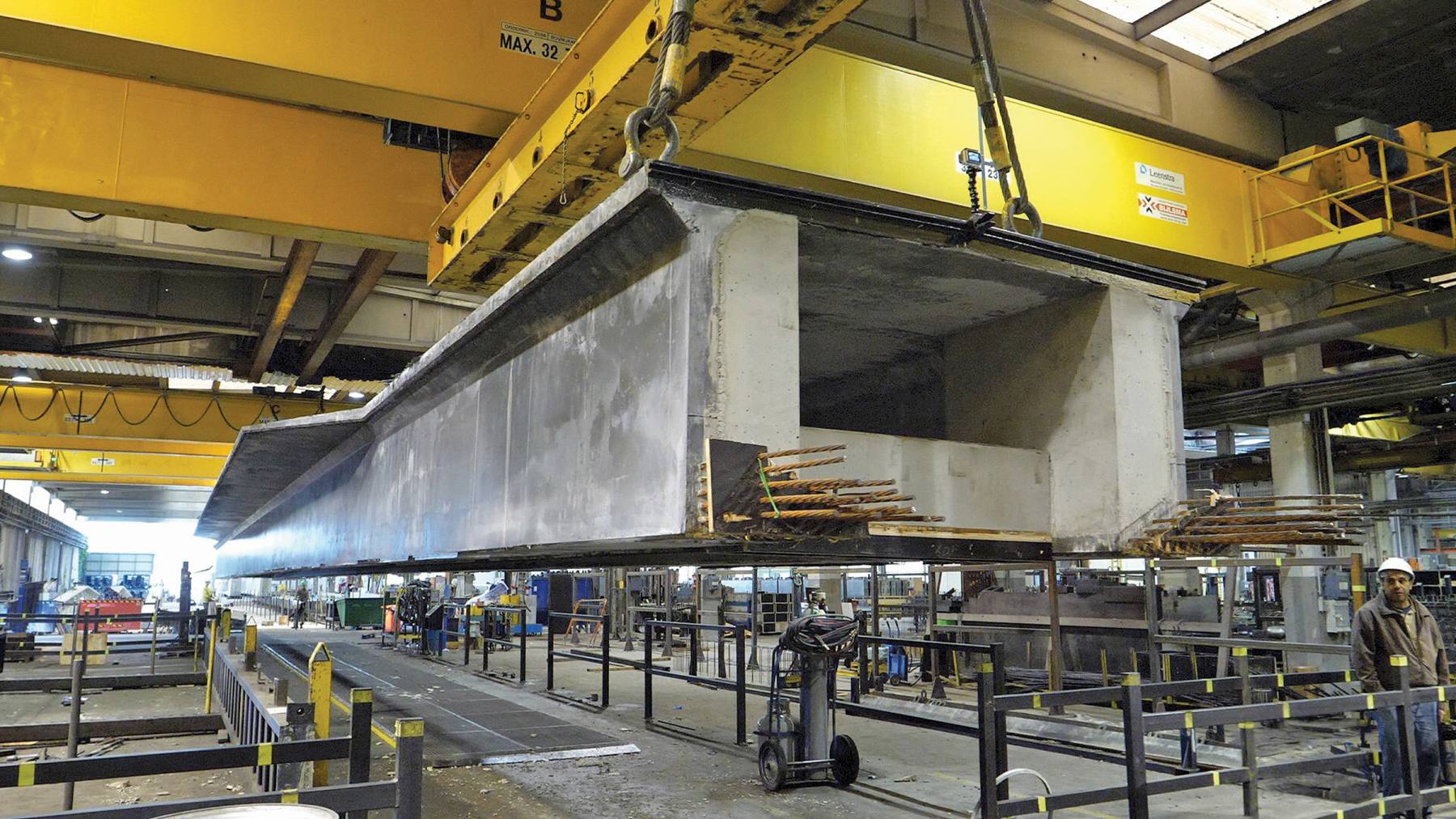

Mould for a prestressed pedestrian bridge

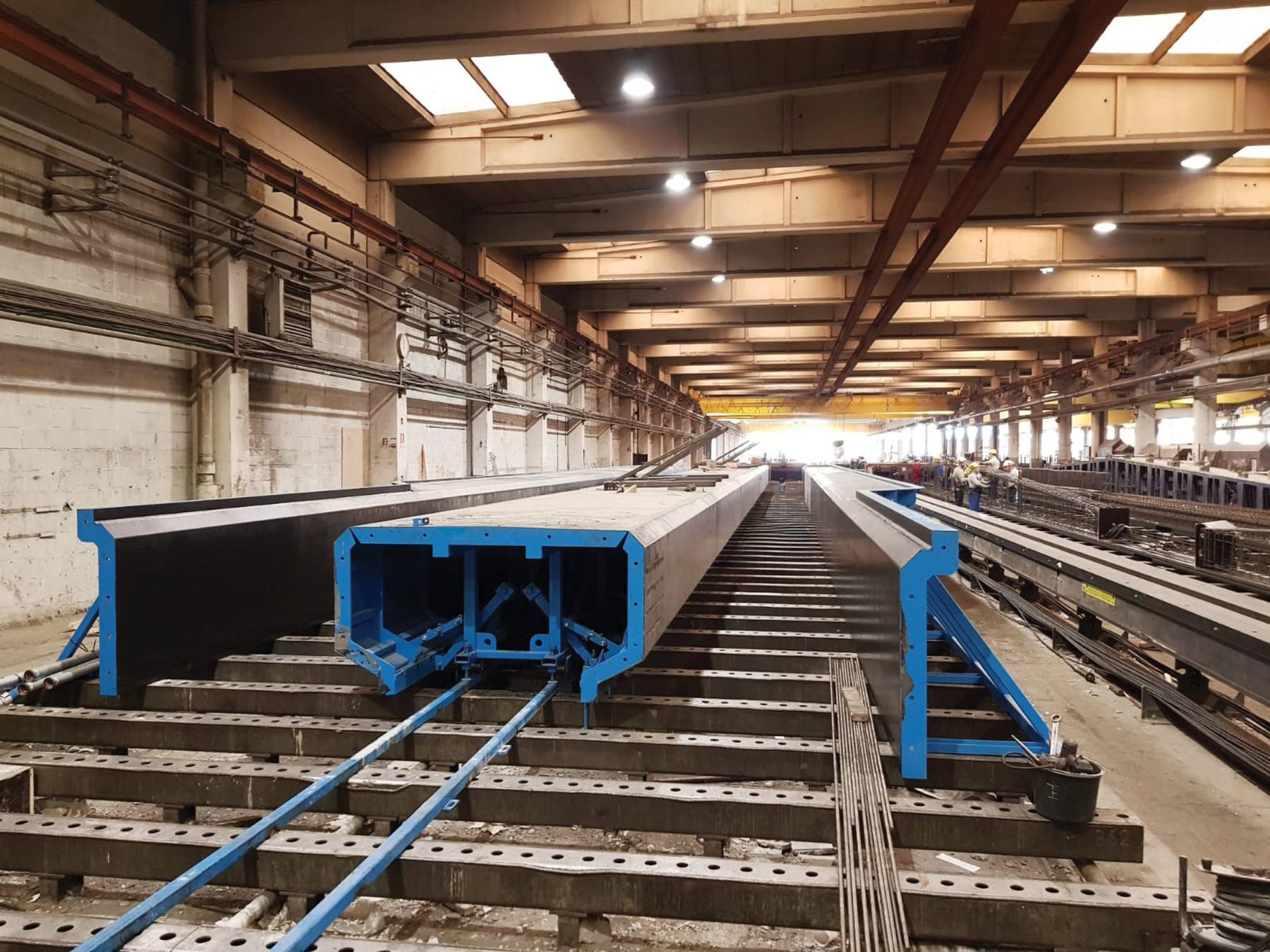

Shrinkable inside mould with retractable outside mould for standard pedestrian bridge.

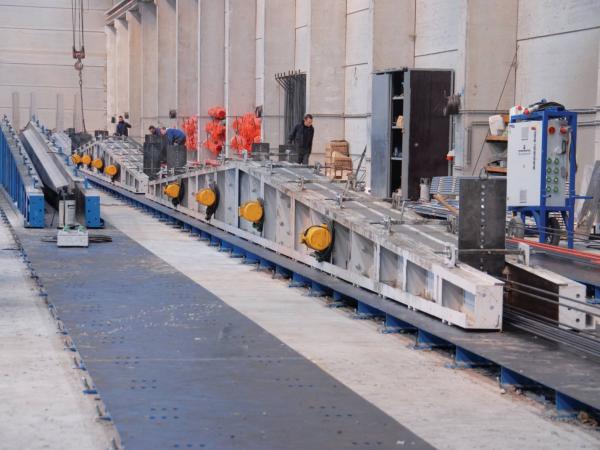

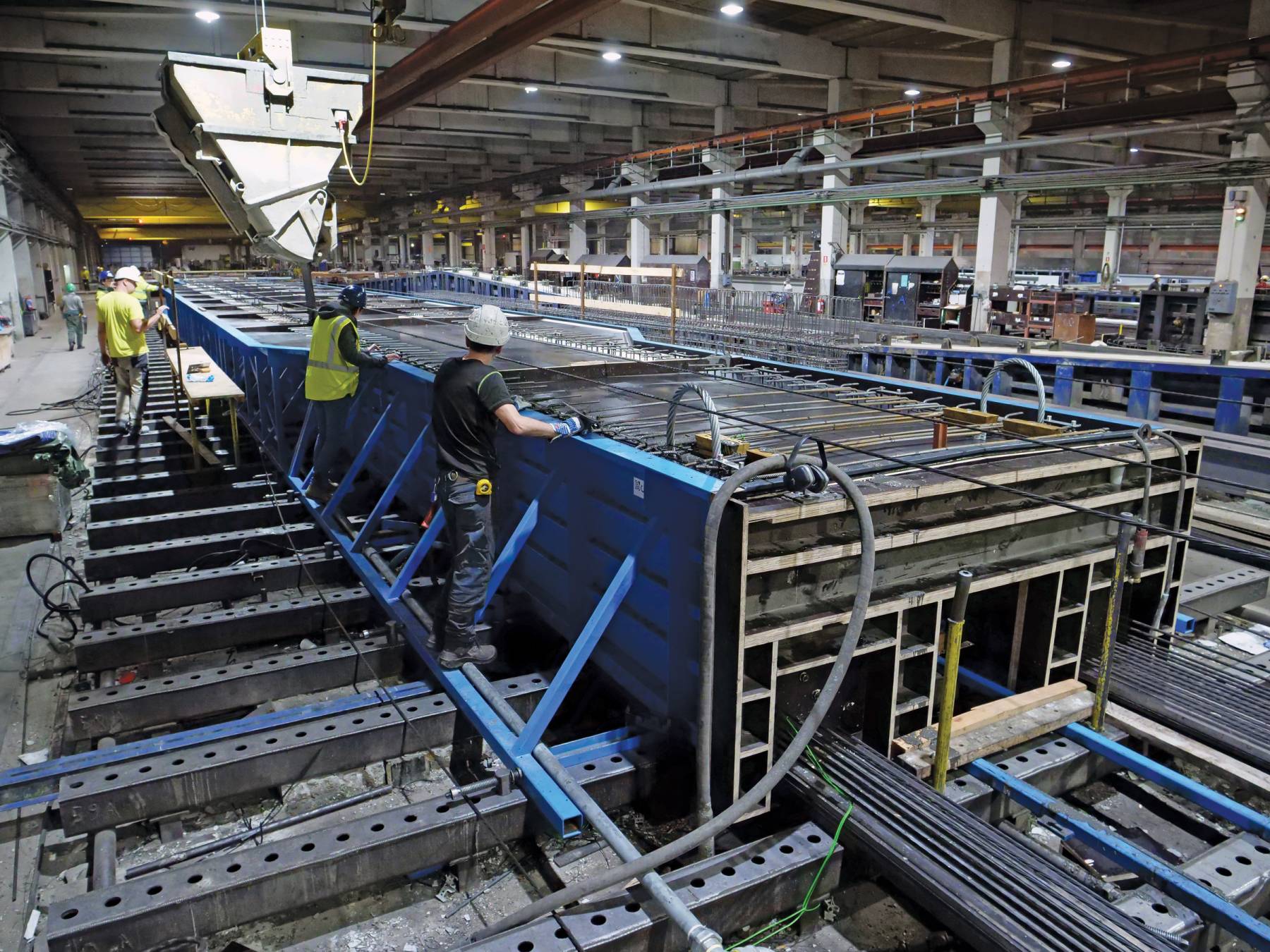

The mould is mounted onto a frame of box profiles in between 2 prestressing abutments. All mould parts are 6m long. Both outside and inside mould are secured on the frame by means of spindles, jacks and props. No ties through the concrete or over the top of the mould.
Bridge specifications:
- Span 36m
- Top width of end sections 2500mm
- Top width of middle section 4000mm
- Width of lower section 2200mm
- Height 1130mm
