Special shapes and architectural concrete
Adjustable moulds for facade elements

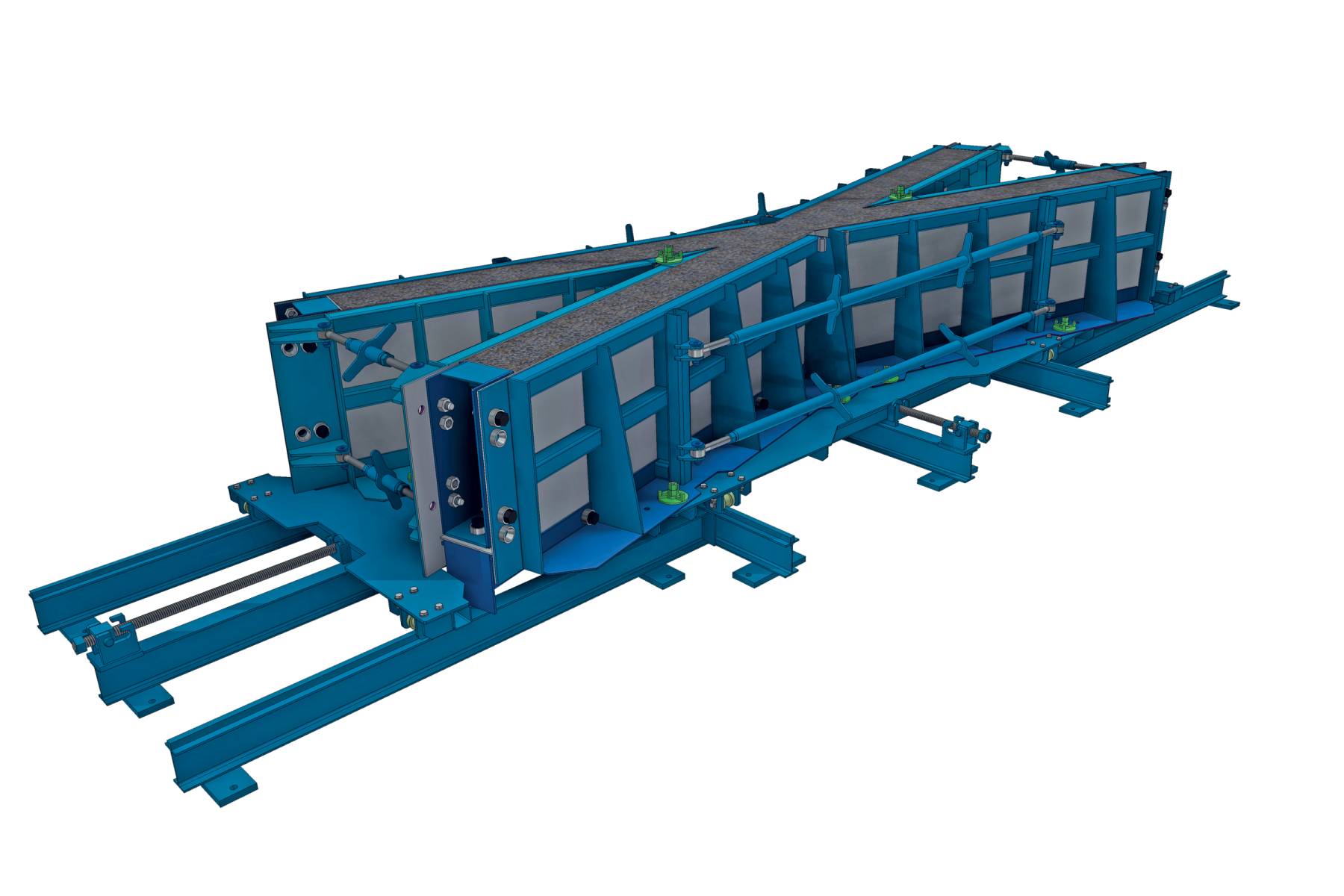

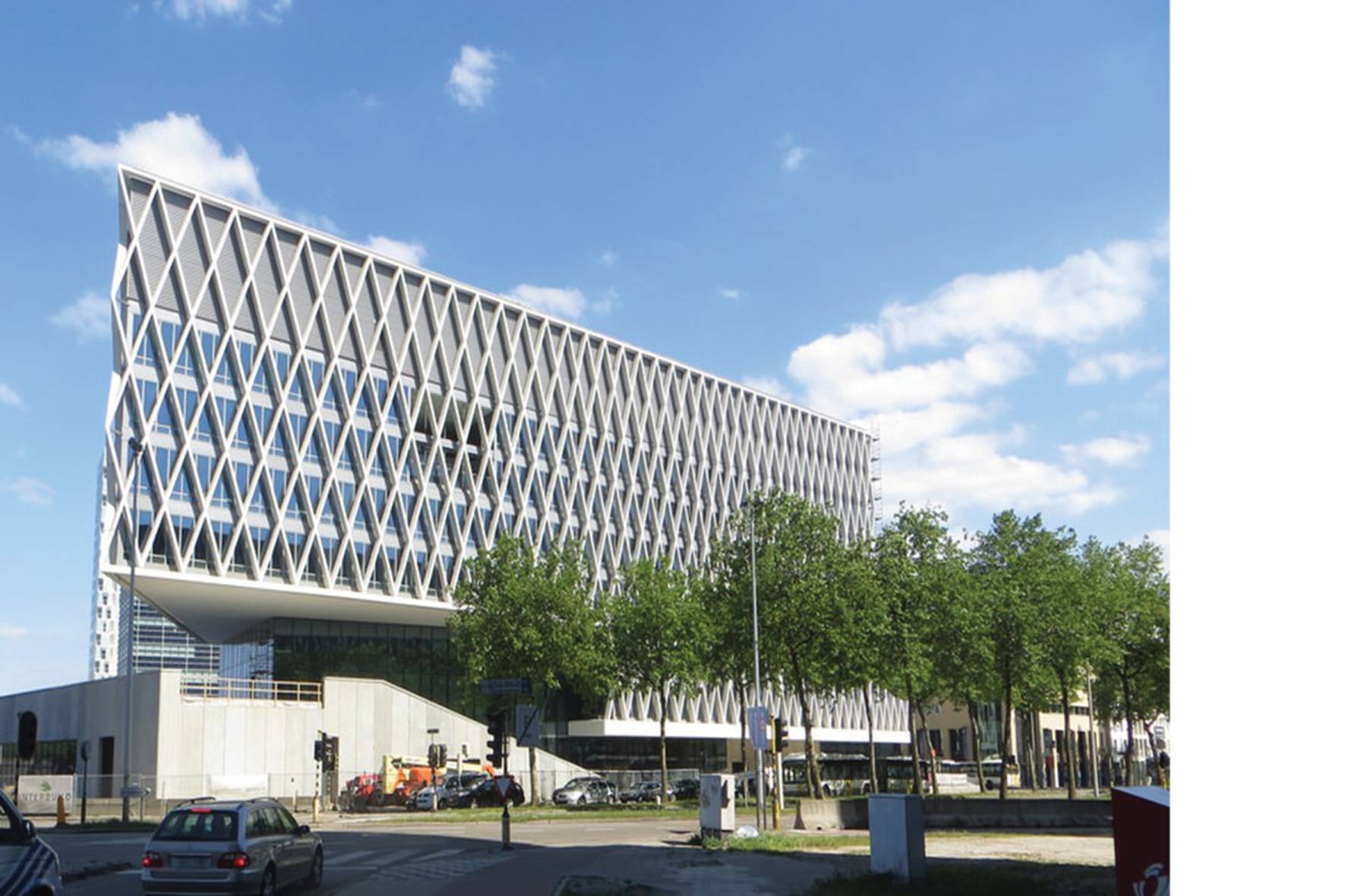

X and V-shaped structural elements in architectonic concrete for the facade of a school building in Antwerp.
All the V-shaped elements can be seen as half X’s. According to their position in the facade, the angle between the legs of the X and V-forms varies. There is a total of 6 different variations of the 2 shapes.

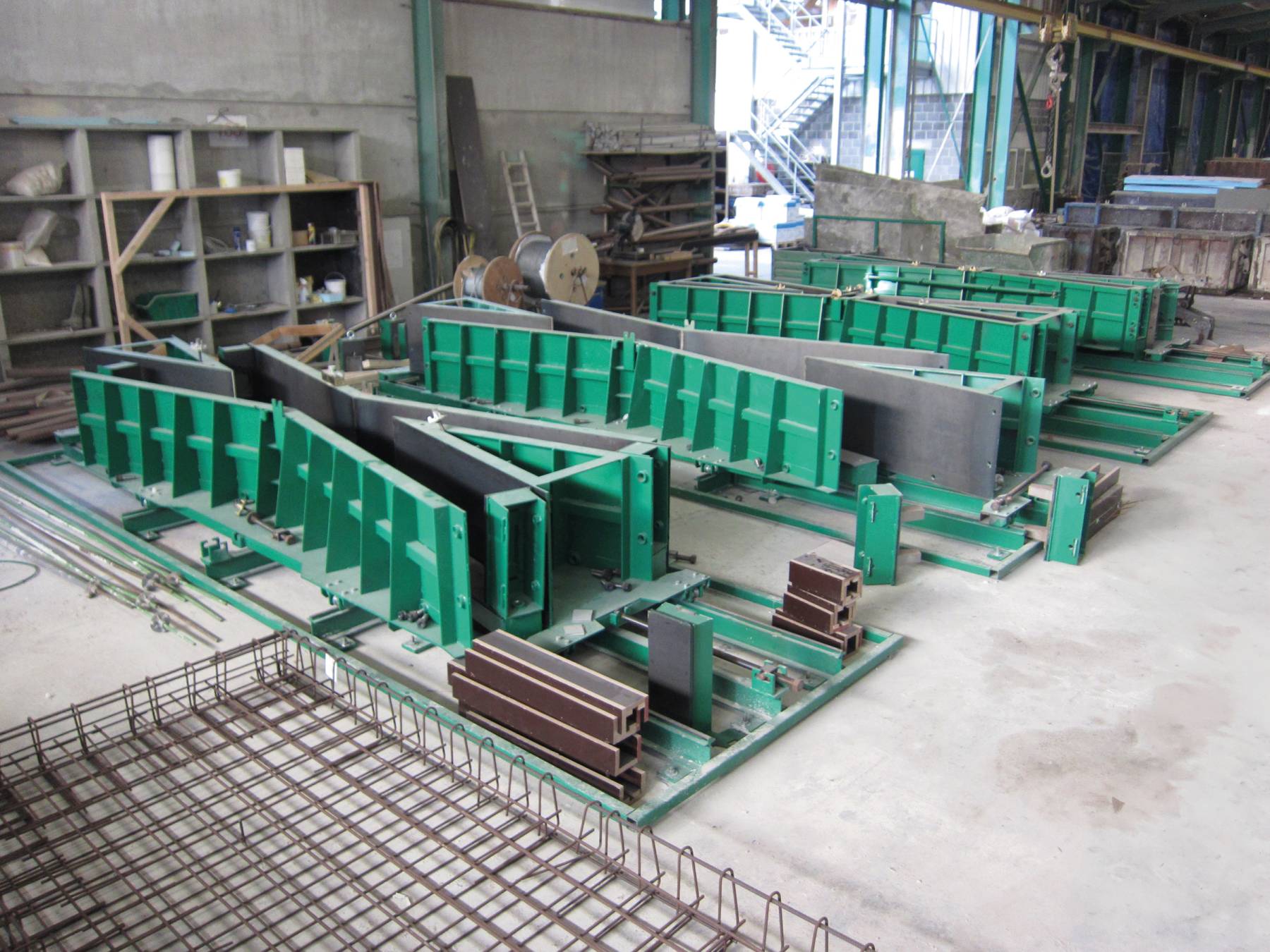

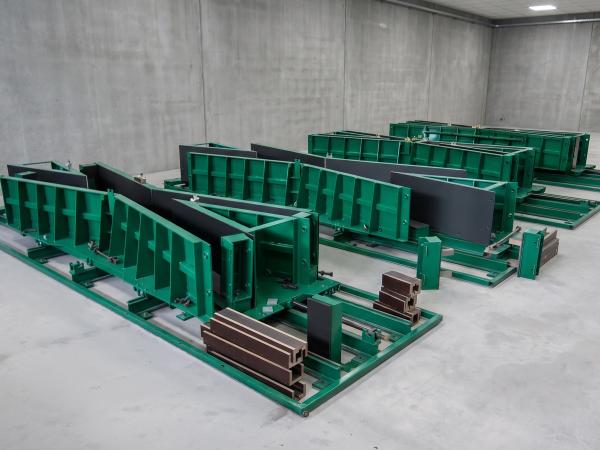

The following forms were supplied for this purpose:
- 7 base frames
- 3 fixed moulds in which only 1 specific type can be made

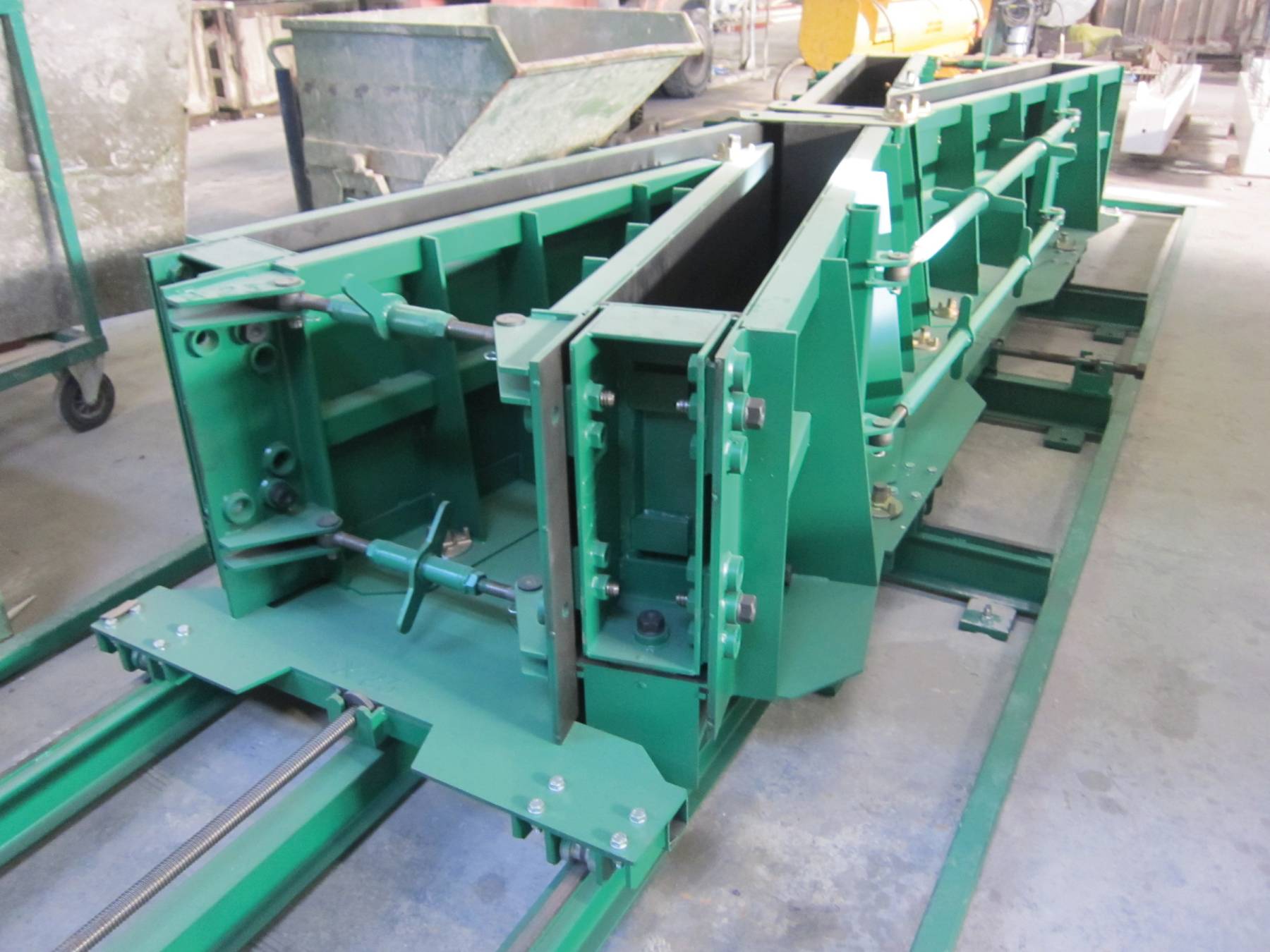

- 4 adjustable moulds in which you are able to make 2 different types
- 11 bases, one or more per type
- 7 sets of 4 stop-ends

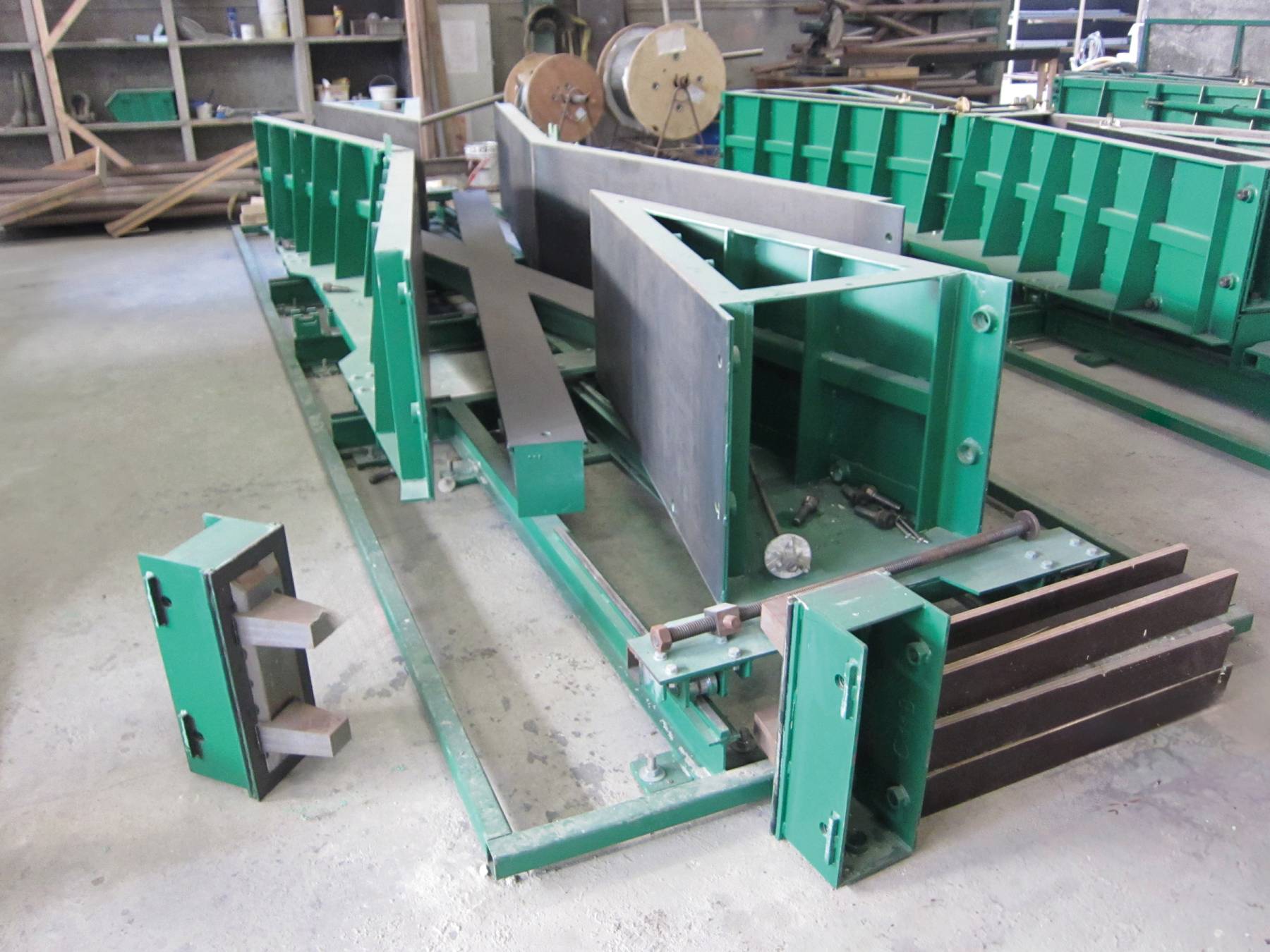

- Extra stop-ends to be able to make V-elements
