Special shapes and architectural concrete
Moulds for columns, beams and soffits with triangular chamfered pattern
Construx-Weckenmann supplied the adjustable moulds for all precast facade elements of the prestigious China Belgian Technology Centre (CBTC).

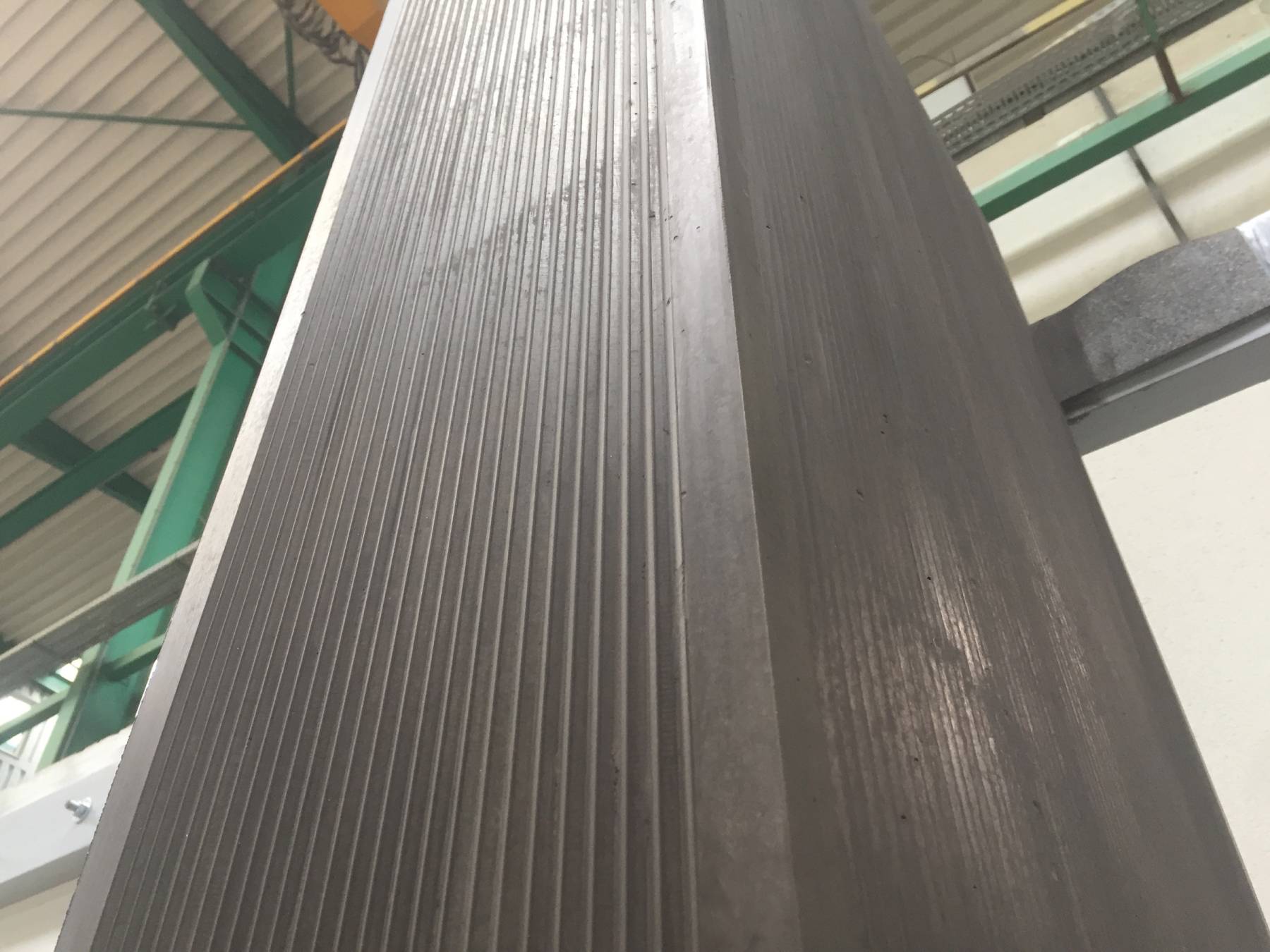

All visible sides feature a continuous pattern of 10mm wide and 3mm deep triangular chamfers. The 10mm steel sheeting of the moulds is very precisely machined. All moulds are insulated and heated and the vertical column moulds have a concrete pump connection.
Overview of the moulds:
- 4n° Vertical column moulds
- 1n° Horizontal column mould
- 10n° Beam moulds
- 1n° Sill mould
- 4n° Soffit moulds
