Moulds for substations and technical rooms
Mould for electrical substations
Design of an automated production unit for substations.

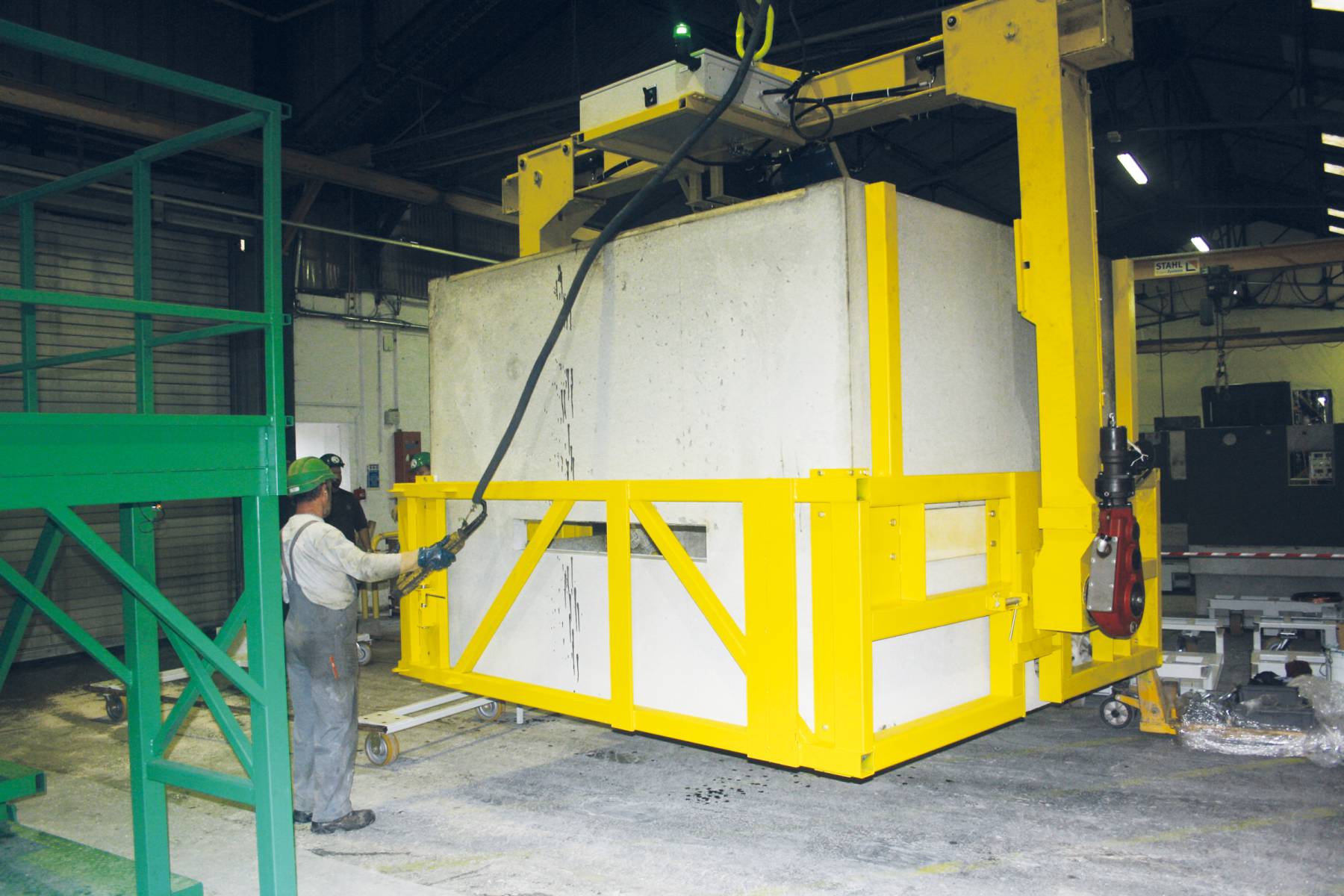

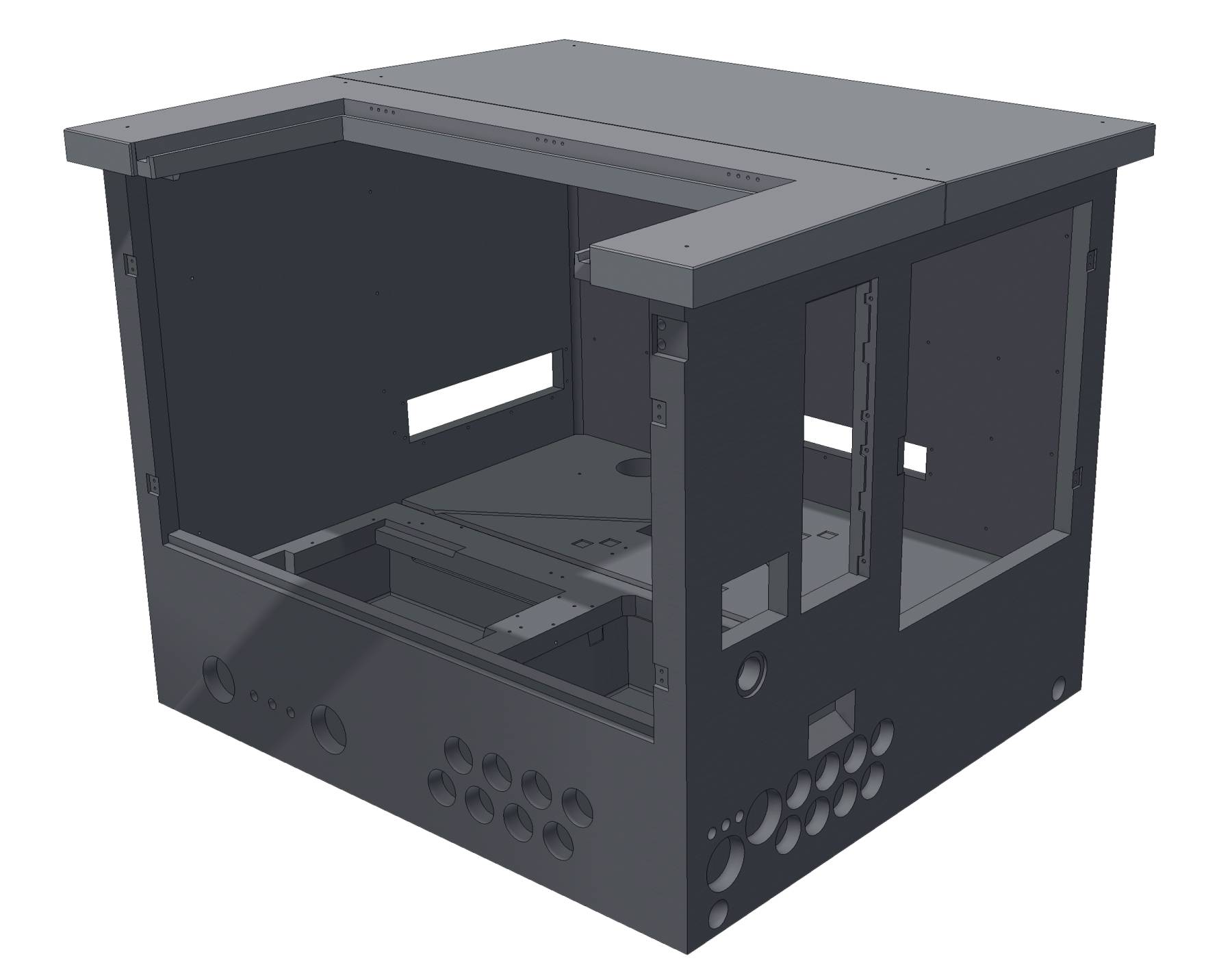

The system consists of 3 fixed tables to pour the base plate and the 2 half sections of the roof, plus a hydraulically shrinkable mould to pour the cabin itself. Seen the cabins are being poured upside down, Construx-Weckenmann provides a lifting frame with a hydraulic tilting device.
Specifications:
- 1 fixed tapered divider panel
- 2 hydraulically retracting parts
- 1 shrinkable inside corner

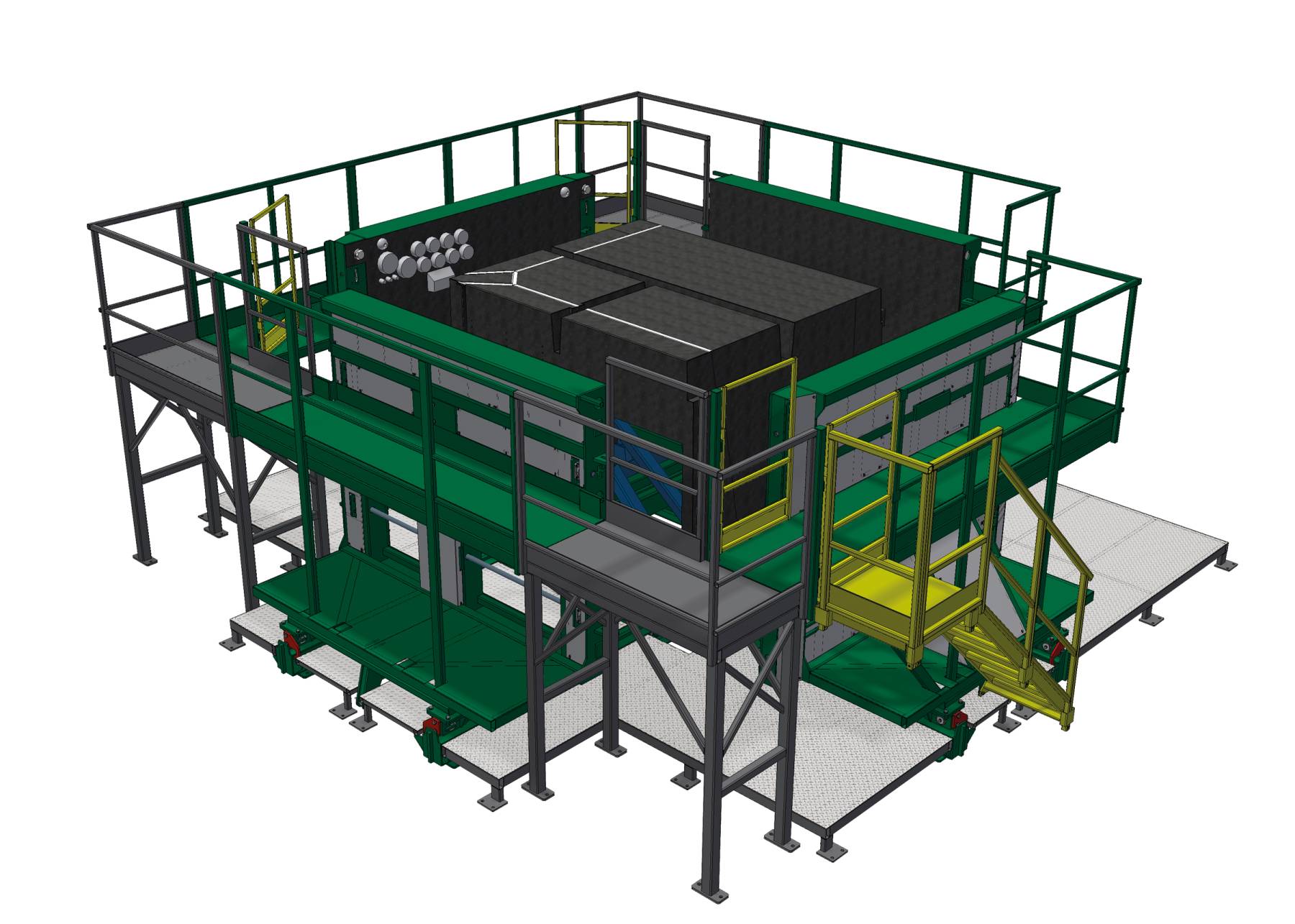

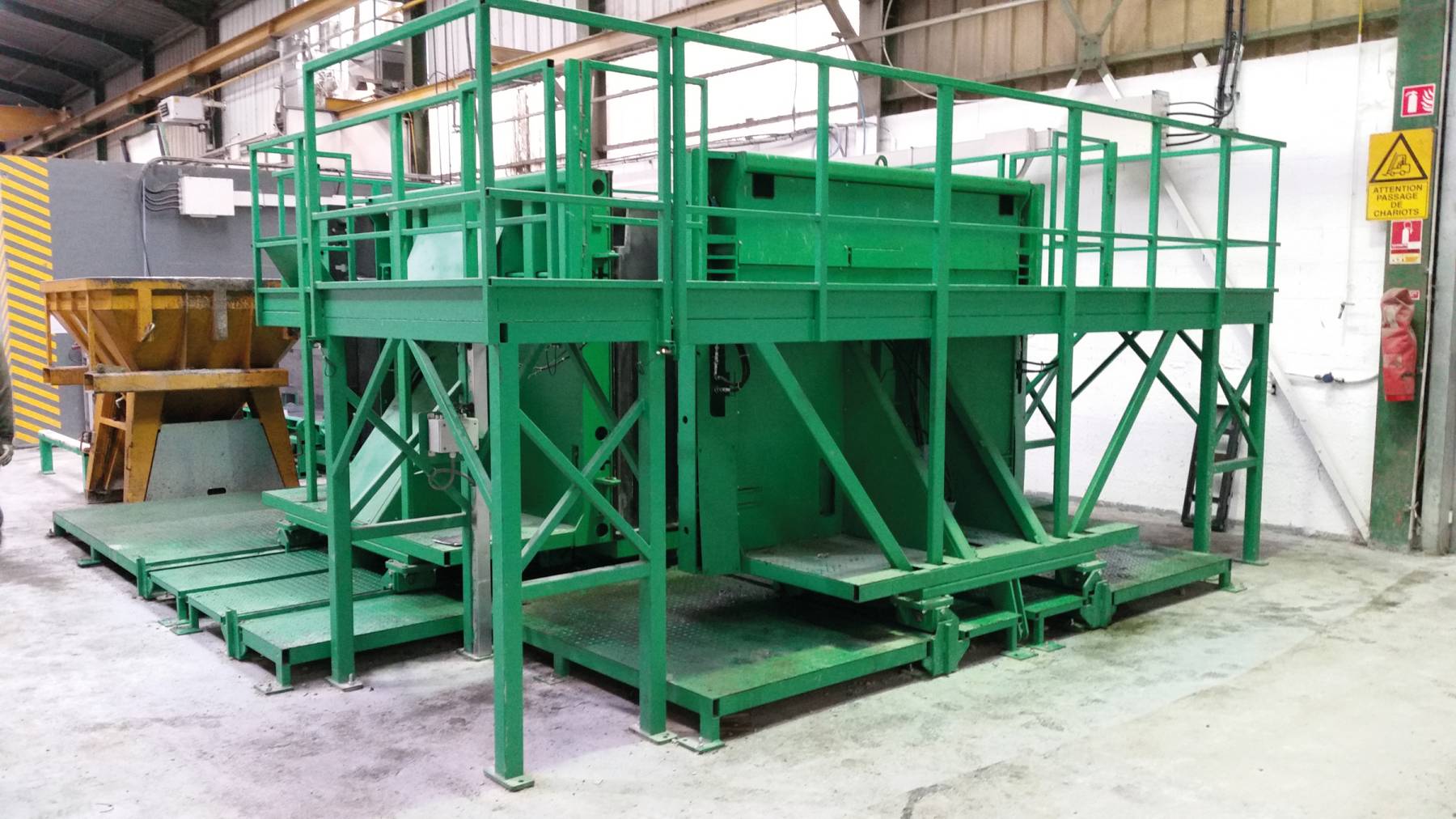

The outside mould consists of 4 hydraulically moveable panels.

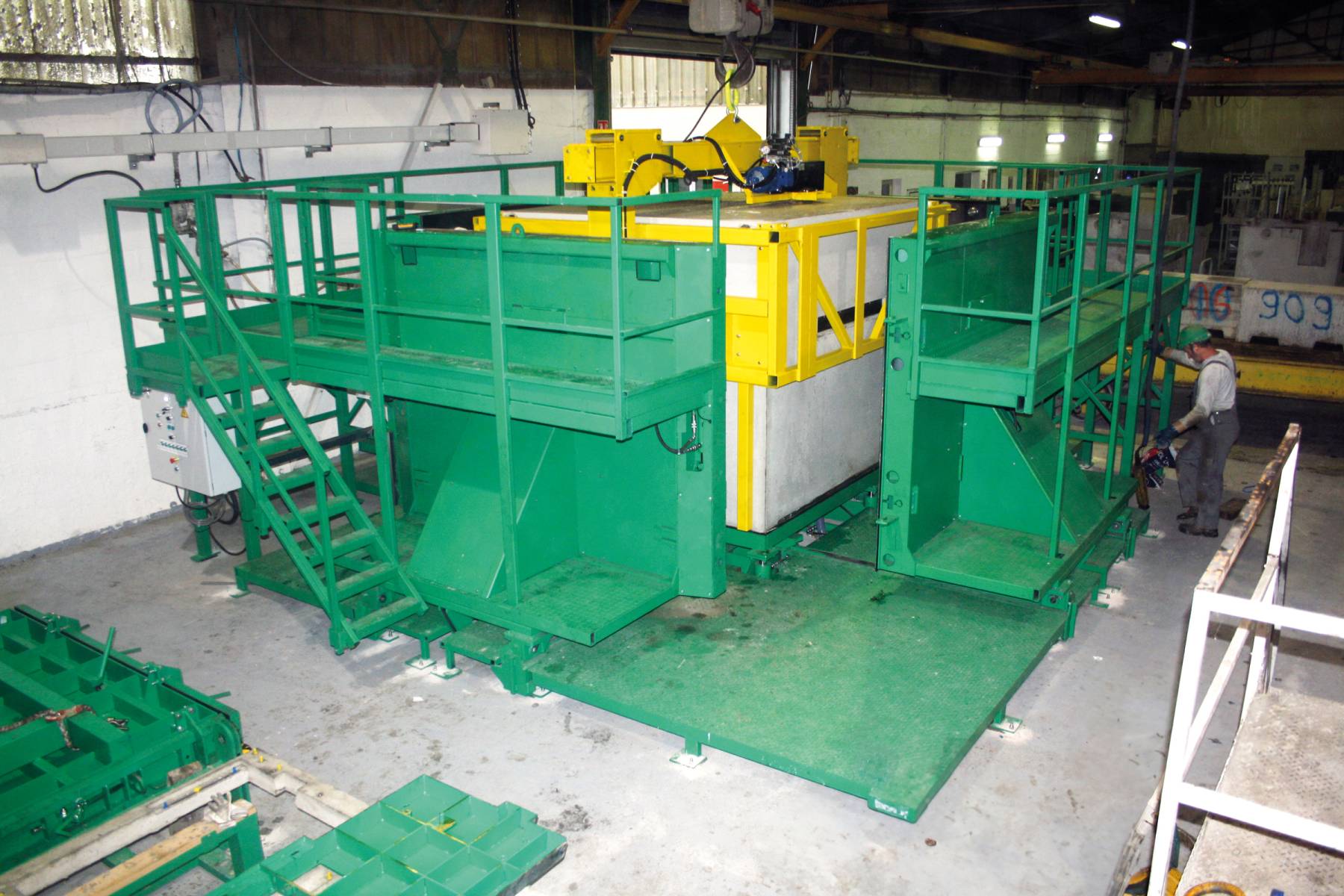

A steel base sits around the core and is supported by hydraulic cylinders which push the cabin whilst demoulding. A PLC controls the sequence of the hydraulic movements and makes the remote controlled demoulding process fully automated.
