Special box moulds

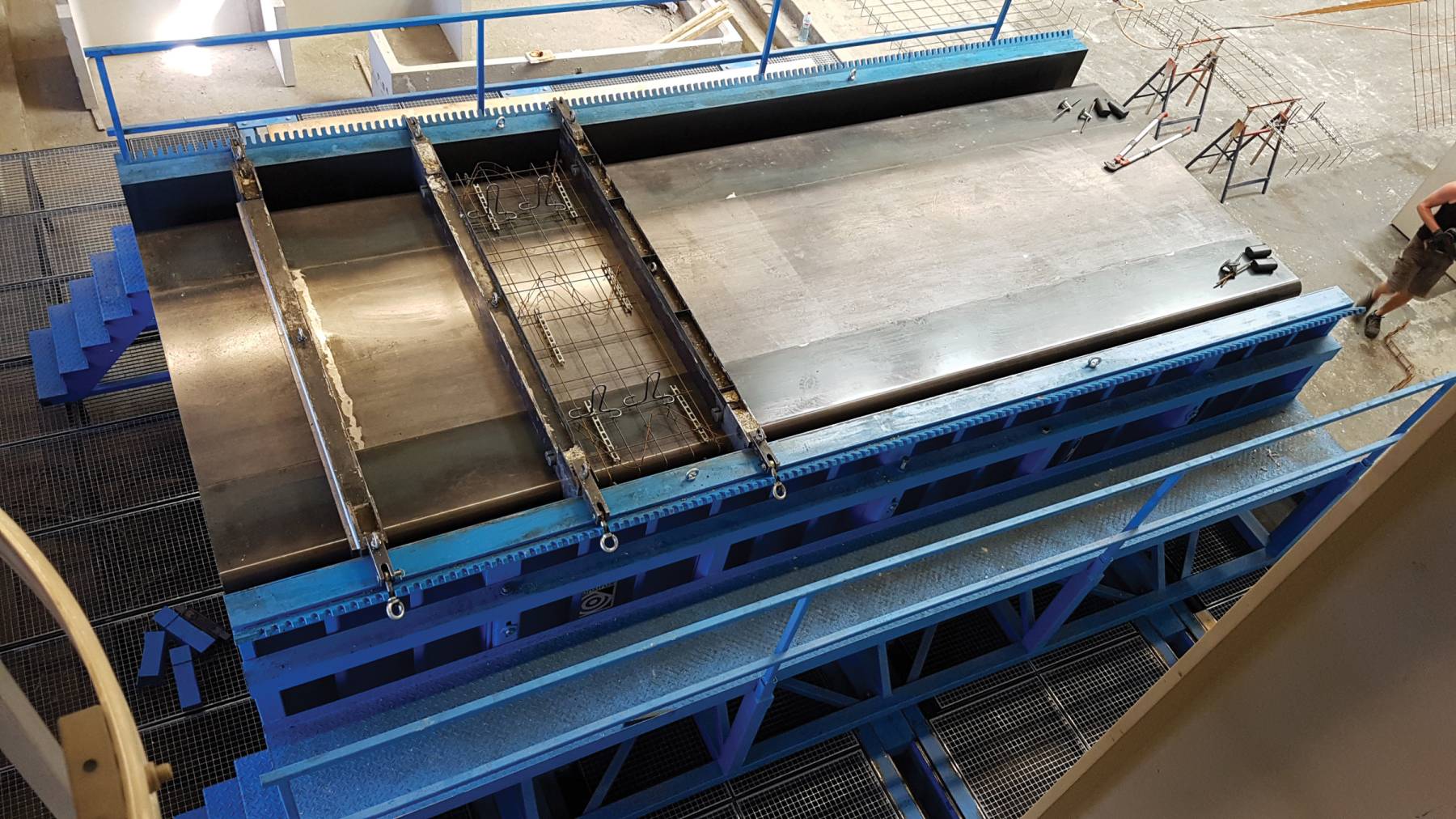

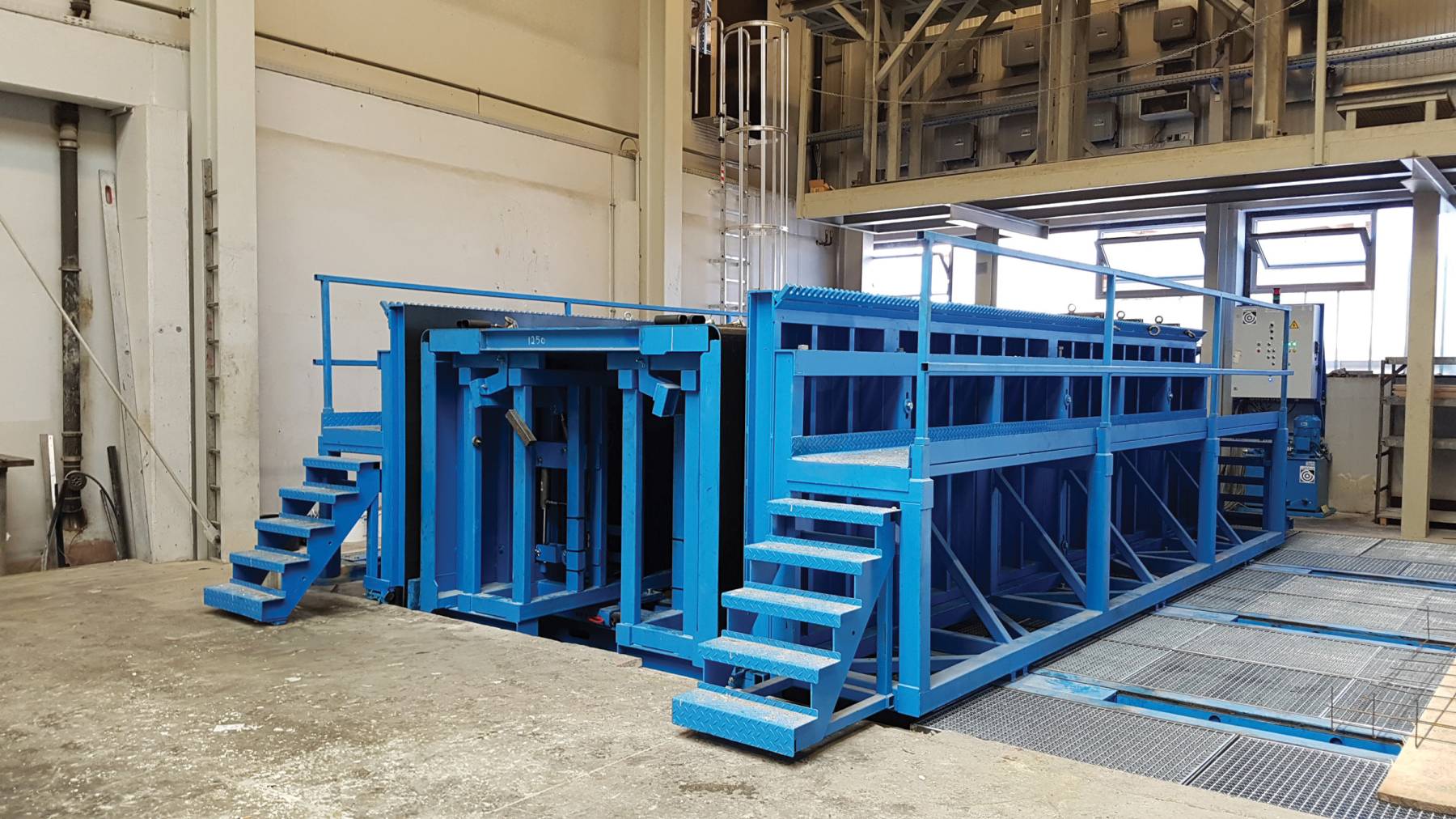

4 moulds for light shaft elements
All moulds are fully hydraulically operated.
Following actions are hydraulic:
- Opening, closing, adjusting and securing outside panels
- Shrinking, adjusting and securing inside mould and its infill panels
Adjusting the width of the inside mould is done with infill panels at 100mm increments. Single- and double-sided horseshoe side-forms and step-ends fit perfectly on the mould.
Mould n°1
- Overall length 6500mm
- Width inside mould 1800mm to 3050mm
- Height inside mould 1500mm
Mould n°2
- Overall length 6500mm
- Width inside mould 850mm to 2550mm
- Height inside mould 1500mm
Mould n°3
- Overall length 8500mm
- Width inside mould, 850mm to 1550mm
- Height inside mould 1000mm
Mould n°4
- Overall length 8500mm
- Width inside mould, 1800mm to 2300mm
- Height inside mould 1000mm
