Moulds for manholes

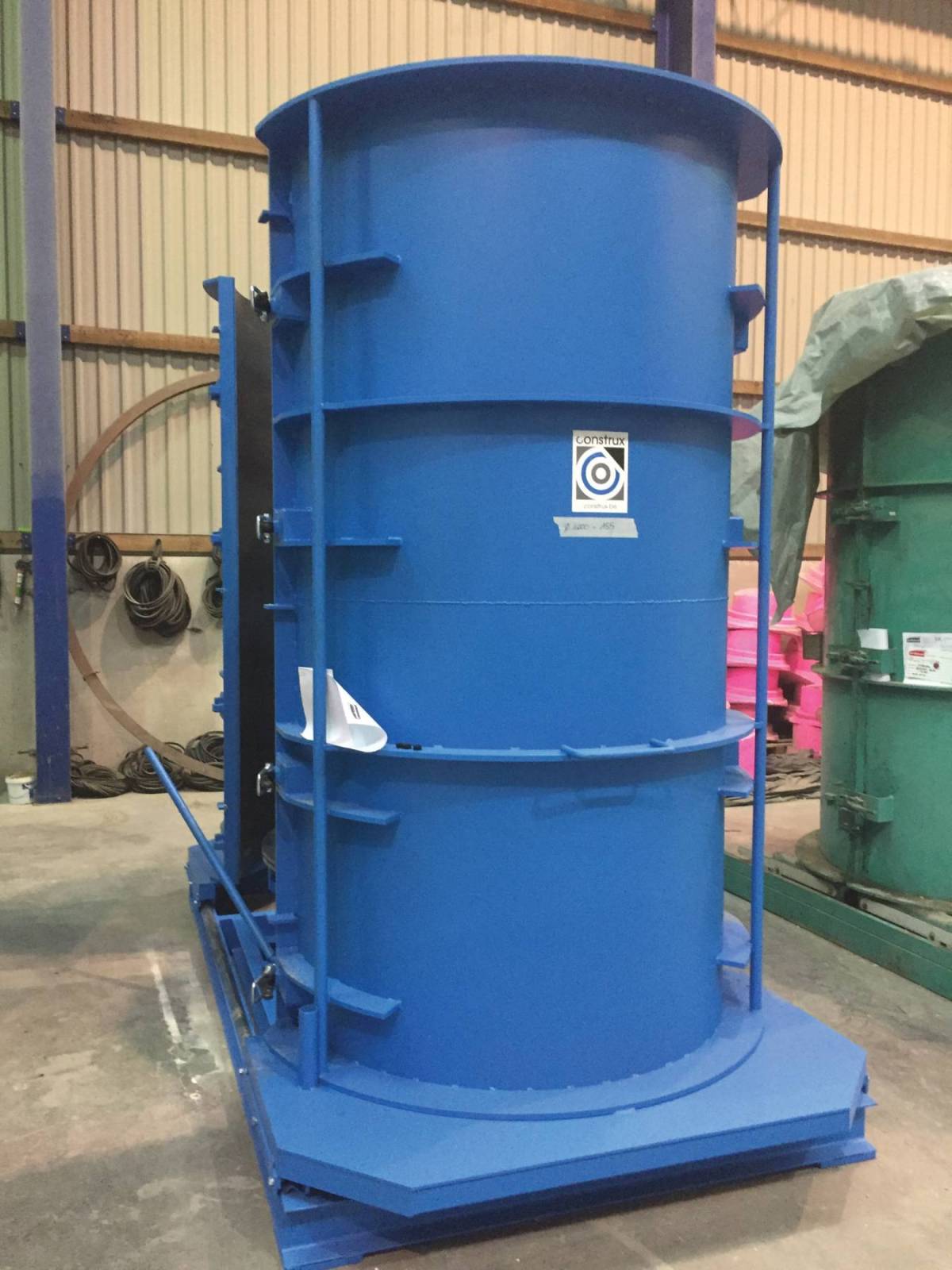

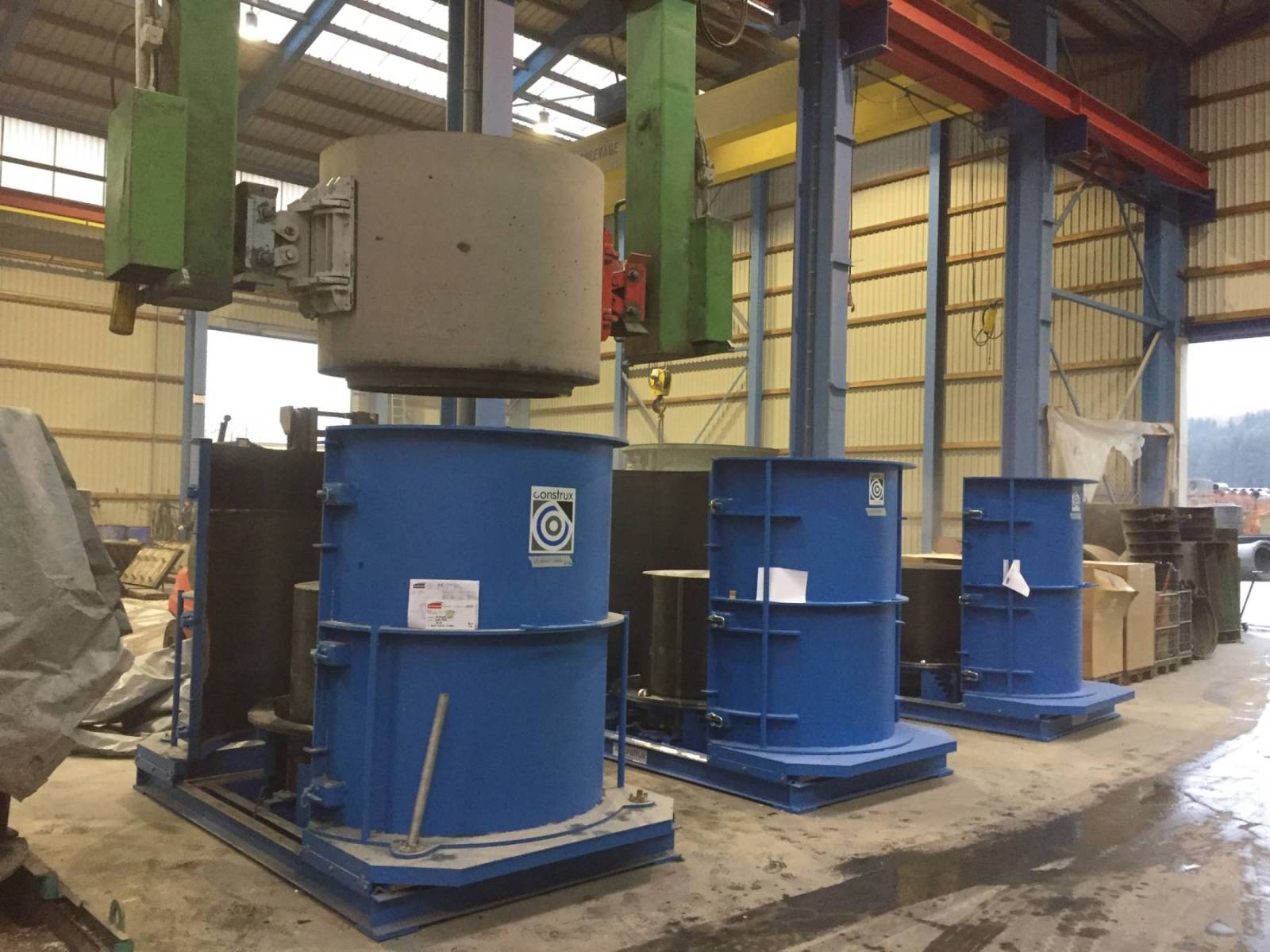

Standard moulds for circular manholes
4 moulds to manufacture specific sizes of circular manholes.

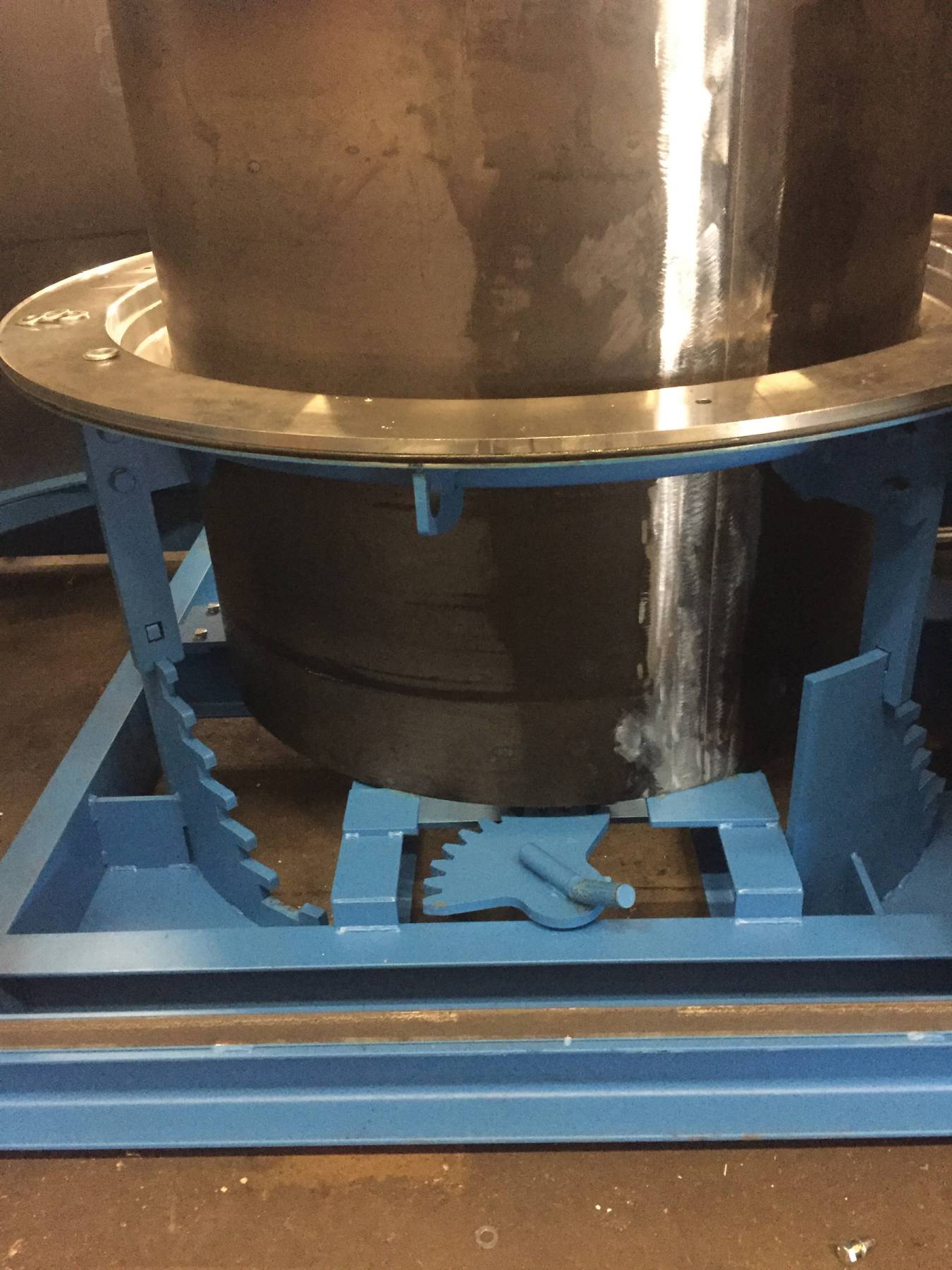

The inner core is manually retracted by means of a lever: fast and easy.
Mould type A, 1n°
- Internal diameter 1000mm
- External diameter 1310mm
- Wall thickness 155mm
- Floor thickness 250mm
- Height outside mould 2500mm
- Height inside mould 1720mm
Mould type B, 1n°
- Internal diameter 1000mm
- External diameter 1310mm
- Wall thickness 155mm
- Floor thickness 150mm and 200mm
- Height outside mould 1750mm
- Height inside mould 1120mm
Moulds type C, 2n°
- Internal diameter 1000mm
- External diameter 1400mm
- Wall thickness 200mm
- Floor thickness 150mm and 200mm
- Height outside mould 1750mm
- Height inside mould 1120mm
